8mm Square Hole Aluminium Perforated Sheet (C8 U24)
Description
C8 U24. 8mm square hole, 24mm in-line pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

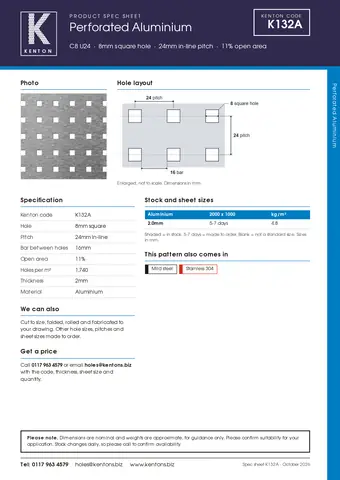

Perforated sheet, aluminium, c8 u24. Kenton code K132A

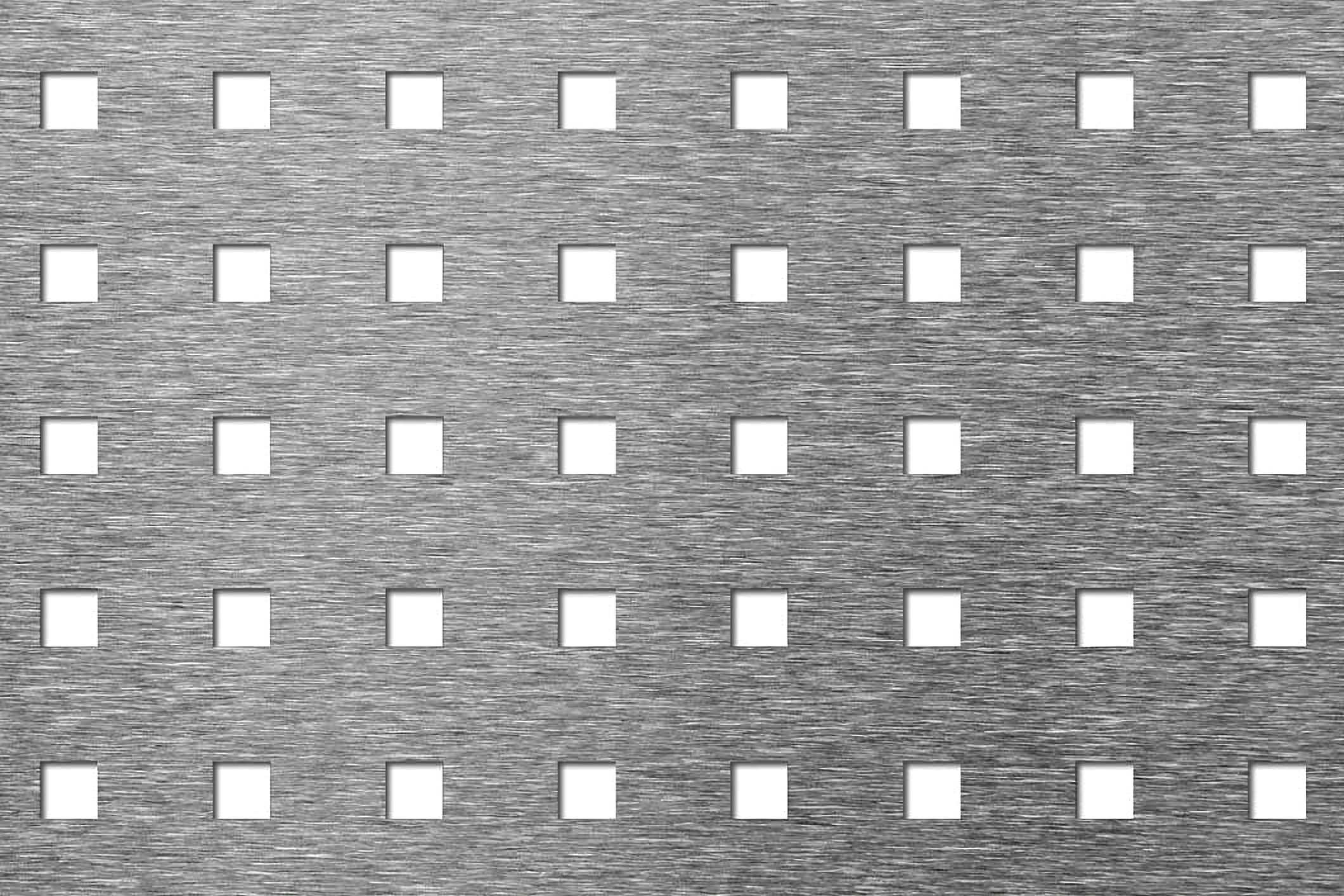

8mm square hole aluminium perforated sheet
C8 U24 is an 8mm square hole perforated sheet in aluminium, with the holes on a 24mm in-line pitch giving 11% open area. It’s made to order, usually in 5 to 7 days, in 2mm thickness.
Also written: C8U24 · 8mm square hole 24mm pitch · 8mm square hole on 24mm centres
| ThicknessAluminium, K132A | Sheet size (mm) | Weightkg/m² |
|---|---|---|
| 2000 x 1000 | ||
| 2.0mm | 5 to 7 days | 4.8 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout
Enlarged, not to scale. Dimensions in mm.
About C8 U24
C8 U24 is an 8mm square hole perforated sheet in aluminium, with the holes on a 24mm in-line pitch giving 11% open area. It’s made to order, usually in 5 to 7 days, in 2mm thickness.
All sizes in the table are made to order, usually in 5 to 7 days.
What does C8 U24 mean?
C8 is an 8mm square hole. U24 means the holes sit on a 24mm in-line pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from C8 U24 is marked. See every aluminium pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C4 U7 | 4mm square | 7mm in-line | 32% | 1.5mm | 5 to 7 days |
| C5 U8 | 5mm square | 8mm in-line | 39% | 1–2mm | 5 to 7 days |
| C6 U9 | 6mm square | 9mm in-line | 44% | 1.5mm | ✓ In stock |
| C7 U10 | 7mm square | 10mm in-line | 49% | 0.8–2mm | 5 to 7 days |
| C8 U12 | 8mm square | 12mm in-line | 44% | 1.5–2mm | 5 to 7 days |
| YOU’RE VIEWINGC8 U24 | 8mm square | 24mm in-line | 11% | 2mm | 5 to 7 days |
| C10 U15 | 10mm square | 15mm in-line | 44% | 1.5–2mm | ✓ In stock |
Highlighted where it differs from C8 U24
