1.5mm Hole Pre-Galvanised Steel Perforated Sheet (R1.5 T2.5)

Need help in choosing the right product?

Ask our experts

CONTACT US

1.5mm Hole Pre-Galvanised Steel Perforated Sheet (R1.5 T2.5)

Perforated sheetPre-galvanisedKenton code K005G

1.5mmRound hole
2.5mmStaggered pitch
33%Open area
1mmThickness

Stock and sheet sizes

Pre-galvanisedK005G 2000 x 1000 kg/m²
1.0mm 5-7 days 5.3

✓ In stockon the shelf, ready to send5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

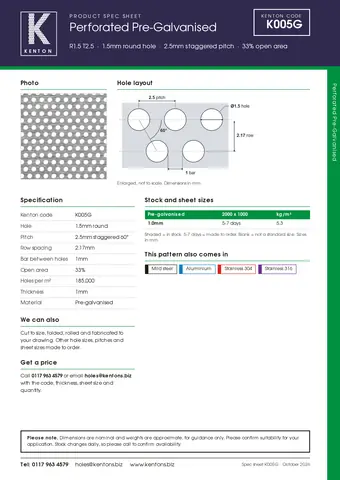

R1.5 T2.5 hole layout: 1.5mm round holes, 2.5mm staggered pitch, 1mm bar, 2.17mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
1.5mm round
Pitch
2.5mm staggered 60°
Row spacing
2.17mm
Bar between holes
1mm
Open area
33%
Holes per m²
185,000
Thickness
1mm
Material
Pre-galvanised
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R1.5 T2.5 pre-galvanised steel perforated sheet

R1.5 T2.5 is a 1.5mm round hole perforated sheet in pre-galvanised steel, with the holes on a 2.5mm staggered pitch giving 33% open area. It’s made to order, usually in 5-7 days, in 1mm thickness.

All sizes in the table are made to order, usually in 5-7 days.

What does R1.5 T2.5 mean?

R1.5 is a 1.5mm round hole. T2.5 means the holes sit on a 2.5mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumStainless 304Stainless 316

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R1.5 T2.5This page 1.5mm round 2.5mm staggered 33% 1mm 5-7 days
R2 T3.5 2mm round 3.5mm staggered 30% 1–2mm ✓ In stock
R3 T5 3mm round 5mm staggered 33% 0.7–3mm ✓ In stock
R4 T6 4mm round 6mm staggered 40% 1–3mm ✓ In stock
R4.5 U15 4.5mm round 15mm square 7% 1–1.5mm ✓ In stock
R5 T7 5mm round 7mm staggered 46% 1–2mm ✓ In stock
R5 T8 5mm round 8mm staggered 35% 1–3mm ✓ In stock

The nearest pre-galvanised steel round hole patterns to R1.5 T2.5. See every pre-galvanised steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
