8mm Square Hole Mild Steel Perforated Sheet (C8 U12)
Perforated sheetMild steelKenton code K125M
Stock and sheet sizes
| Mild steelK125M | 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | kg/m² |
|---|---|---|---|---|
| 1.0mm | 5-7 days | ✓ In stock | 5-7 days | 4.4 |
| 1.5mm | ✓ In stock | ✓ In stock | 5-7 days | 6.5 |
| 2.0mm | 5-7 days | 5-7 days | 5-7 days | 8.7 |
| 3.0mm | 5-7 days | 13.1 |
✓ In stockon the shelf, ready to send5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

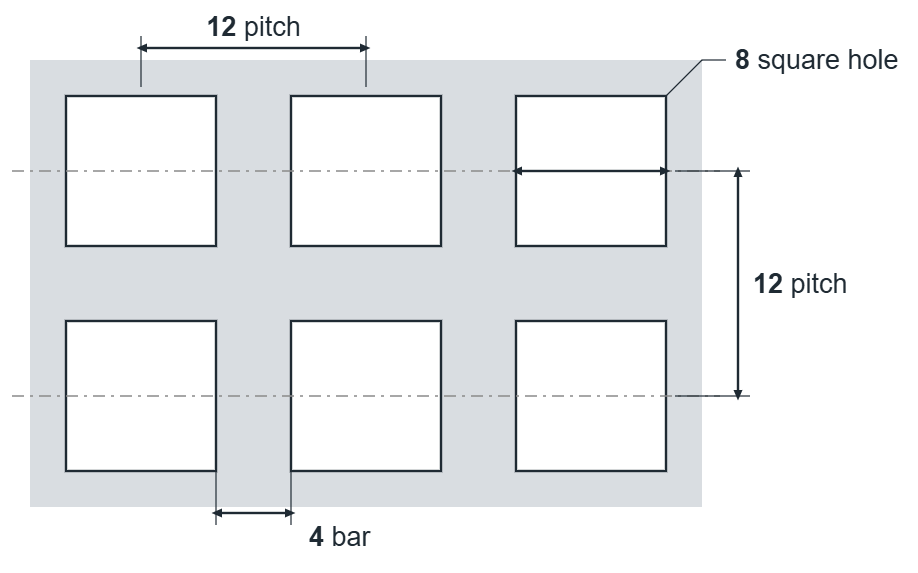

Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 8mm square
- Pitch
- 12mm in-line
- Bar between holes
- 4mm
- Open area
- 44%
- Holes per m²
- 6,940
- Thickness
- 1–3mm
- Material
- Mild steel

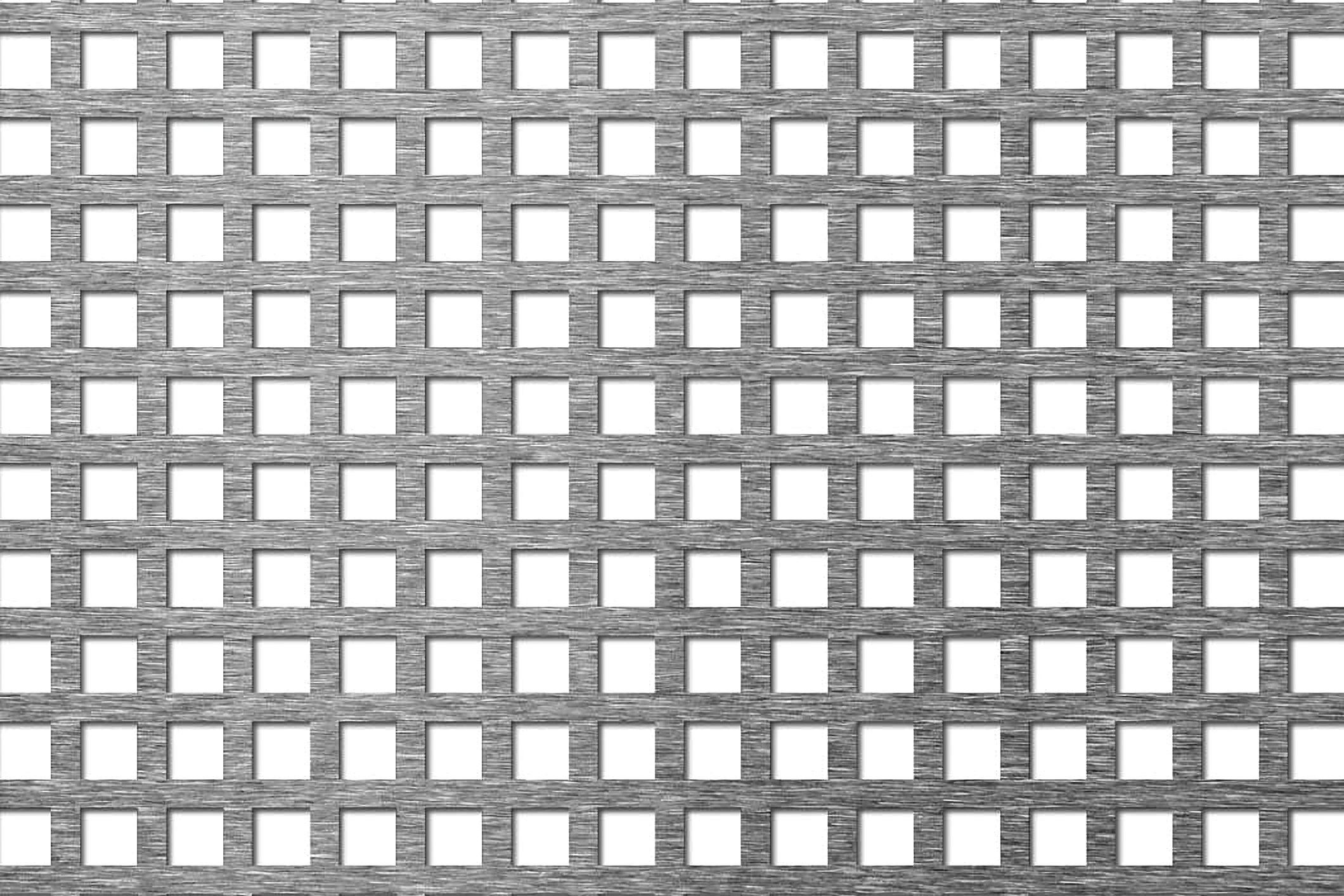

About C8 U12 mild steel perforated sheet
C8 U12 is an 8mm square hole perforated sheet in mild steel, with the holes on a 12mm in-line pitch giving 44% open area. We keep it in stock here in Bristol, in thicknesses from 1 to 3mm.
In stock: 1mm in 2.5m x 1.25m sheets; 1.5mm in 2m x 1m and 2.5m x 1.25m. Everything else in the table is made to order in 5-7 days.
What does C8 U12 mean?
C8 is an 8mm square hole. U12 means the holes sit on a 12mm in-line pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C5 U8 | 5mm square | 8mm in-line | 39% | 1–2mm | ✓ In stock |
| C6 U9 | 6mm square | 9mm in-line | 44% | 1–2mm | ✓ In stock |
| C8 U10 | 8mm square | 10mm in-line | 64% | 1–2mm | ✓ In stock |
| C8 U12This page | 8mm square | 12mm in-line | 44% | 1–3mm | ✓ In stock |
| C10 U12 | 10mm square | 12mm in-line | 69% | 1–2mm | ✓ In stock |
| C10 U14 | 10mm square | 14mm in-line | 51% | 1–3mm | ✓ In stock |
| C10 U15 | 10mm square | 15mm in-line | 44% | 1–4mm | ✓ In stock |
The nearest mild steel square hole patterns to C8 U12. See every mild steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
