304 Stainless Steel Perforated Sheet

Round, square and slotted hole patterns from 0.5mm to 20mm, in 0.4mm to 4mm thick. Stocked in Bristol, cut to size while you wait and delivered next working day.

Call 0117 963 4579Email usChoose a hole size ↓

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing

What hole size do you need?

Green means at least one thickness is on the shelf in Bristol now. White sizes are made to order in 5-7 days. Tap a size to see every thickness, sheet size, weight and the hole layout.

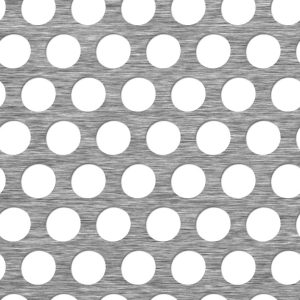

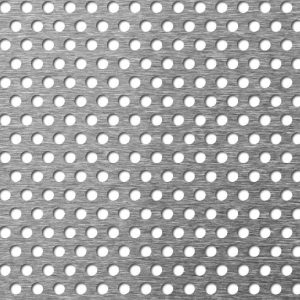

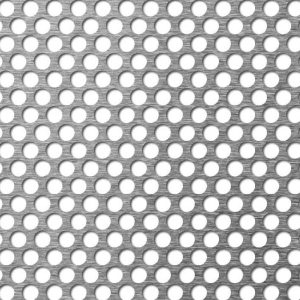

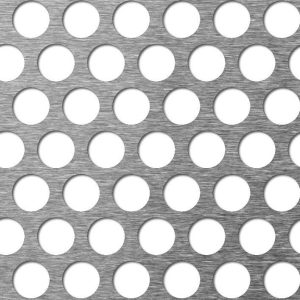

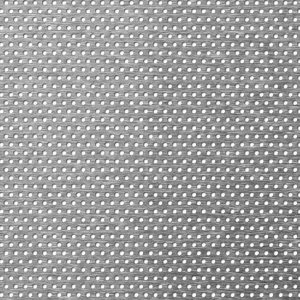

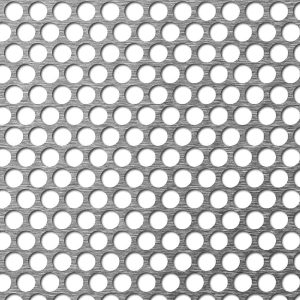

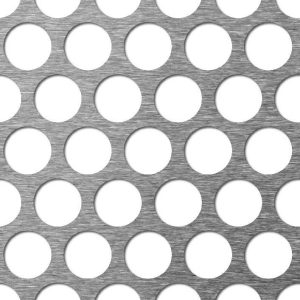

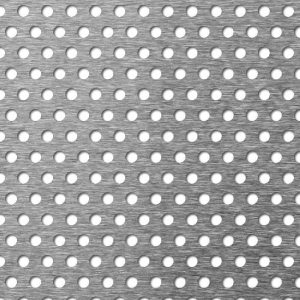

Round holes, staggered pitch

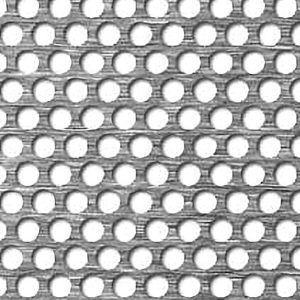

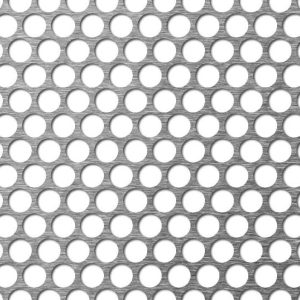

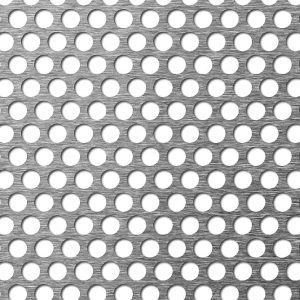

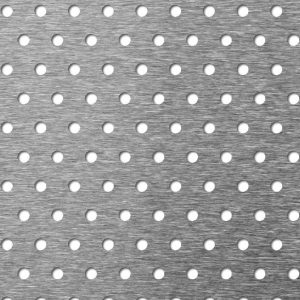

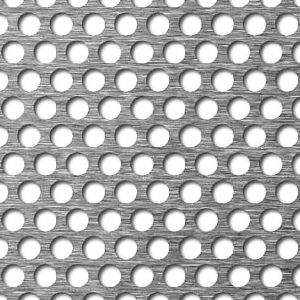

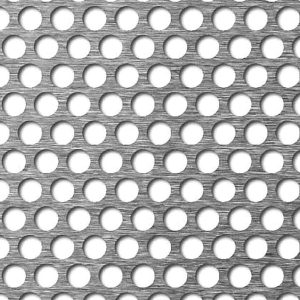

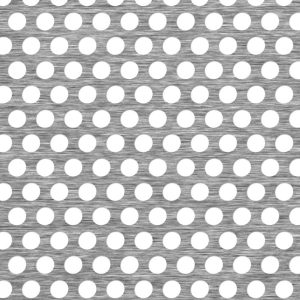

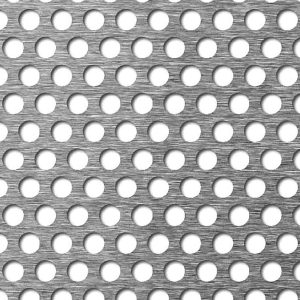

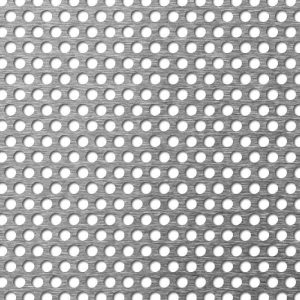

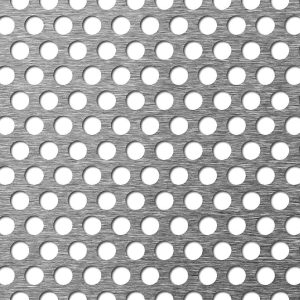

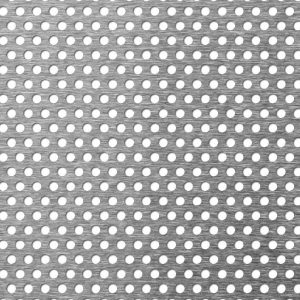

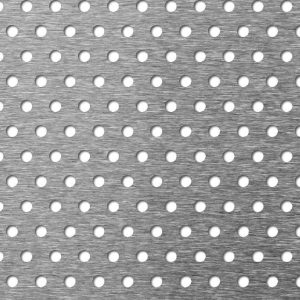

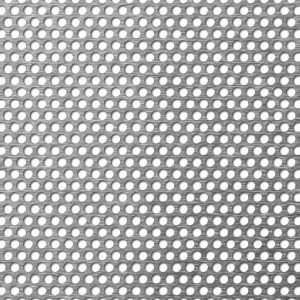

0.5mmR0.5 T1.091.09mm pitch · 19% openIn stock0.75mmR0.75 T1.51.5mm pitch · 23% openTo order1mmR1 T22mm pitch · 23% openTo order1mmR1 T2.22.2mm pitch · 19% openIn stock1.1mmR1.1 T22mm pitch · 27% openIn stock1.25mmR1.25 T2.42.4mm pitch · 25% openTo order1.5mmR1.5 T2.52.5mm pitch · 33% openIn stock1.5mmR1.5 T33mm pitch · 23% openTo order2mmR2 T33mm pitch · 40% openIn stock2mmR2 T3.53.5mm pitch · 30% openIn stock2mmR2 T44mm pitch · 23% openIn stock3mmR3 T44mm pitch · 51% openIn stock3mmR3 T55mm pitch · 33% openIn stock3mmR3 T66mm pitch · 23% openIn stock4mmR4 T5.65.6mm pitch · 46% openTo order4mmR4 T66mm pitch · 40% openIn stock4mmR4 T77mm pitch · 30% openTo order5mmR5 T77mm pitch · 46% openIn stock5mmR5 T7.57.5mm pitch · 40% openTo order5mmR5 T88mm pitch · 35% openIn stock5mmR5 T99mm pitch · 28% openTo order5mmR5 T1010mm pitch · 23% openTo order5mmR5 T1212mm pitch · 16% openTo order5mmR5 T1414mm pitch · 12% openTo order6mmR6 T88mm pitch · 51% openIn stock6mmR6 T99mm pitch · 40% openIn stock7mmR7 T1010mm pitch · 44% openTo order8mmR8 T1010mm pitch · 58% openTo order8mmR8 T1111mm pitch · 48% openTo order8mmR8 T1212mm pitch · 40% openIn stock10mmR10 T1212mm pitch · 63% openTo order10mmR10 T1313mm pitch · 54% openTo order10mmR10 T1515mm pitch · 40% openIn stock10mmR10 T1818mm pitch · 28% openTo order12mmR12 T1616mm pitch · 51% openTo order15mmR15 T2020mm pitch · 51% openIn stock15mmR15 T2121mm pitch · 46% openTo order20mmR20 T2525mm pitch · 58% openTo order20mmR20 T2828mm pitch · 46% openIn stock25mmR25 T3030mm pitch · 63% openTo order30mmR30 T3535mm pitch · 67% openTo order30mmR30 T4040mm pitch · 51% openTo order

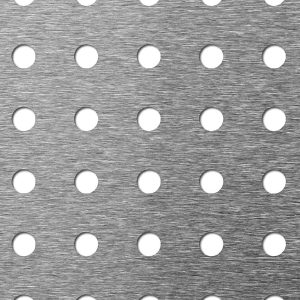

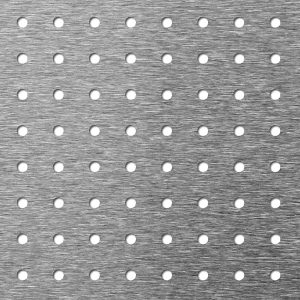

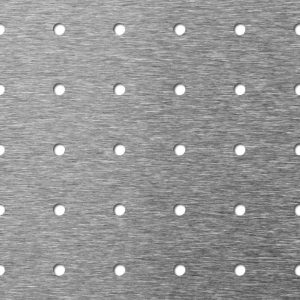

Round holes, square pitch

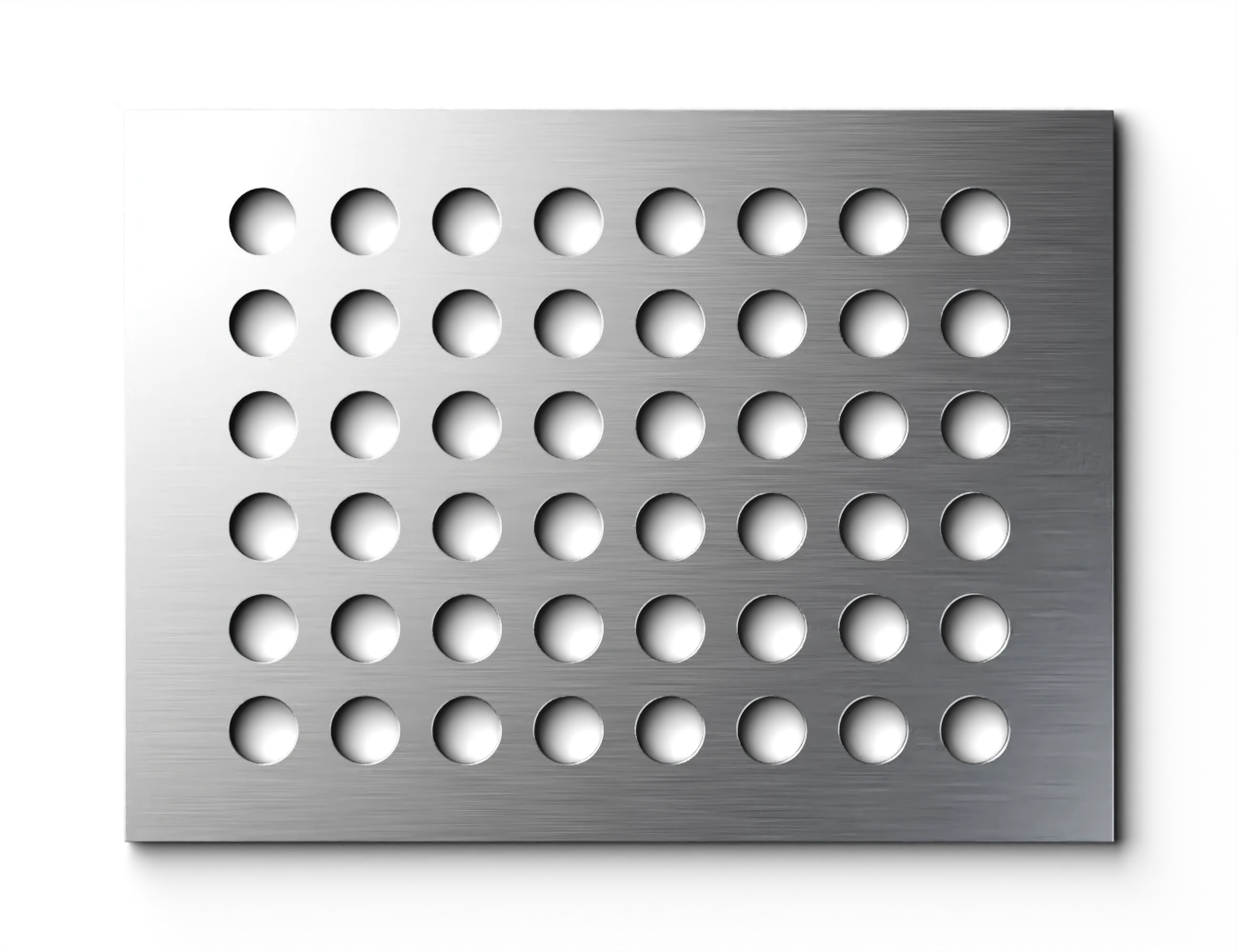

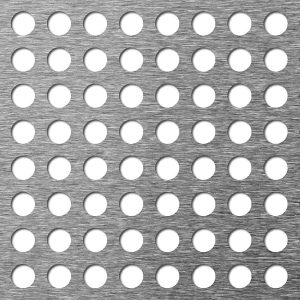

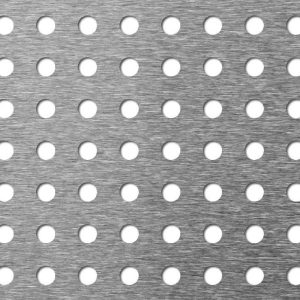

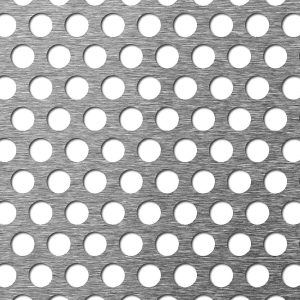

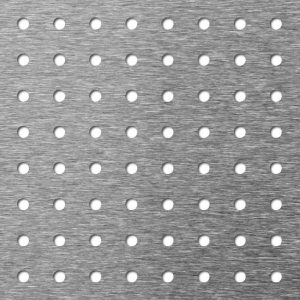

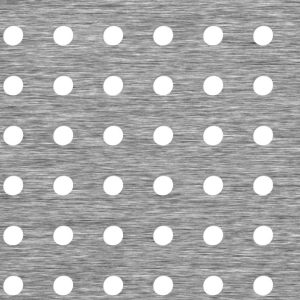

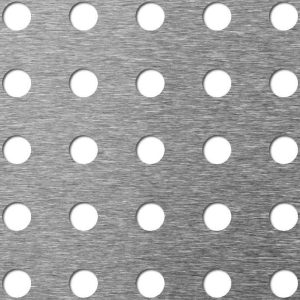

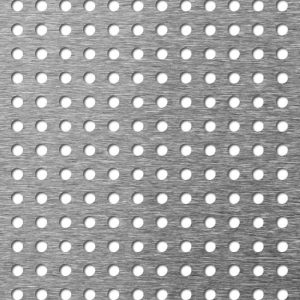

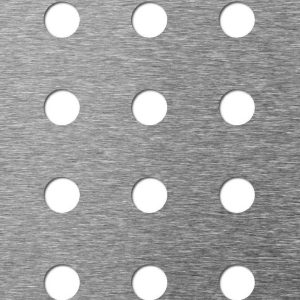

4.5mmR4.5 U1515mm pitch · 7% openIn stock5mmR5 U1010mm pitch · 20% openTo order5mmR5 U1515mm pitch · 9% openTo order5mmR5 U2525mm pitch · 3% openTo order8mmR8 U17.3217.32mm pitch · 17% openTo order10mmR10 U1515mm pitch · 35% openTo order10mmR10 U2626mm pitch · 12% openTo order12mmR12 U27.7227.72mm pitch · 15% openTo order15mmR15 U36.3836.38mm pitch · 13% openTo order20mmR20 U48.548.5mm pitch · 13% openTo order

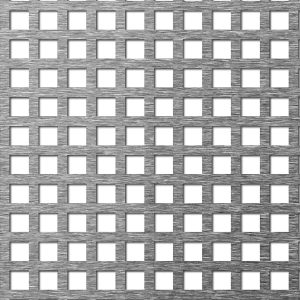

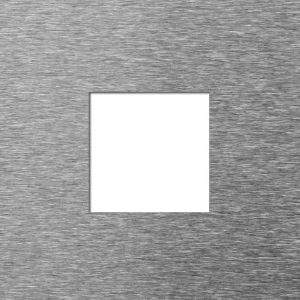

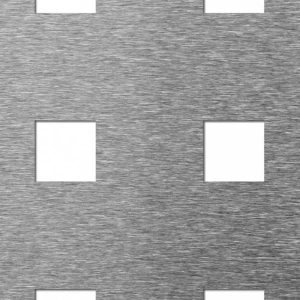

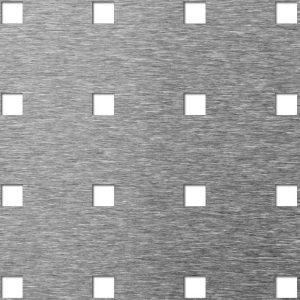

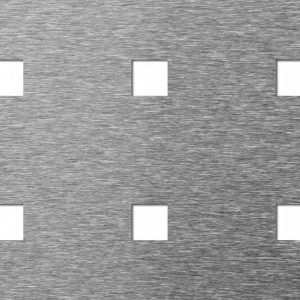

Square holes

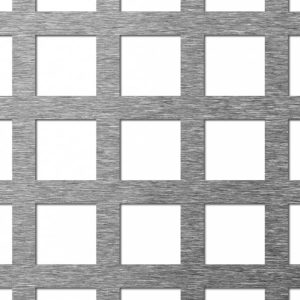

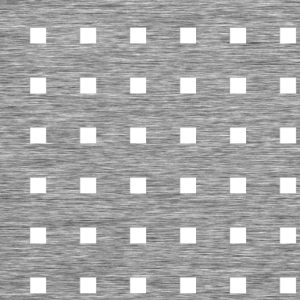

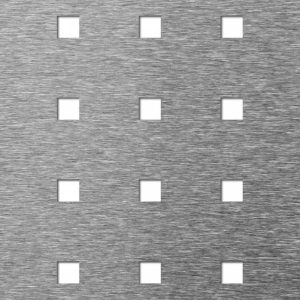

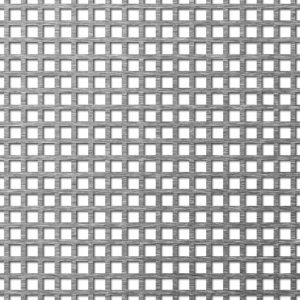

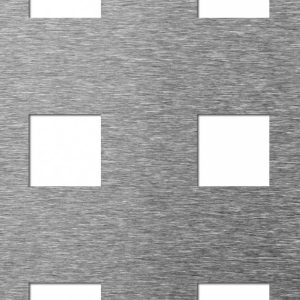

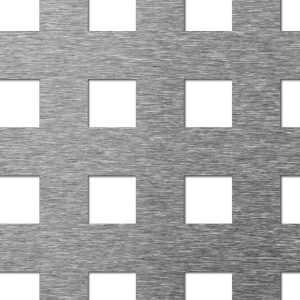

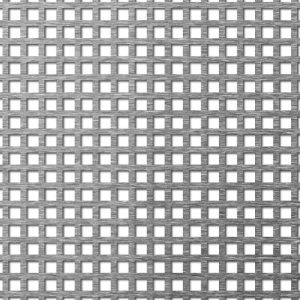

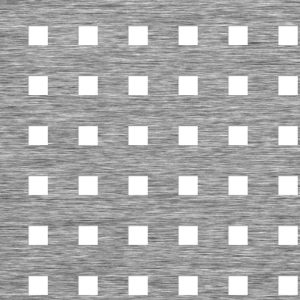

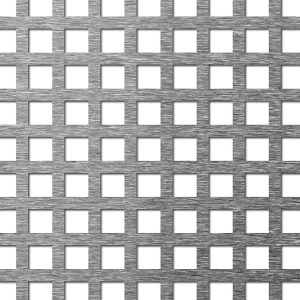

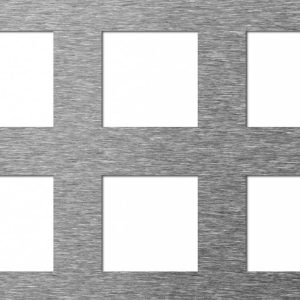

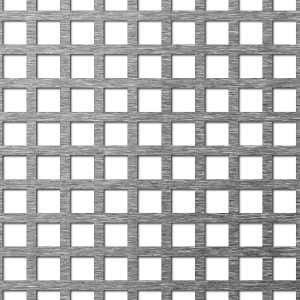

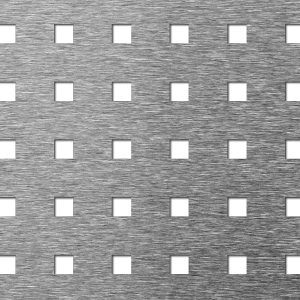

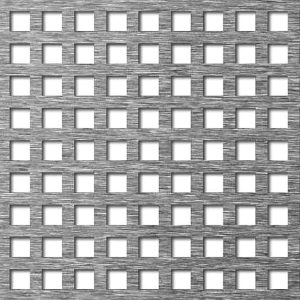

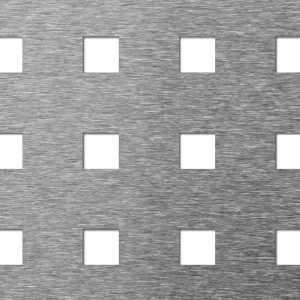

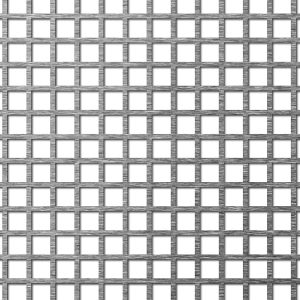

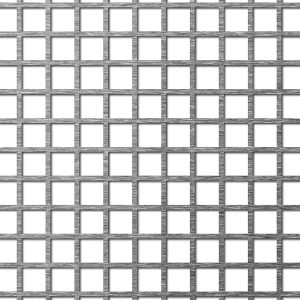

5mmC5 U77mm pitch · 51% openIn stock5mmC5 U7.57.5mm pitch · 44% openIn stock5mmC5 U88mm pitch · 39% openIn stock8mmC8 U1010mm pitch · 64% openTo order8mmC8 U1212mm pitch · 44% openIn stock8mmC8 U2424mm pitch · 11% openTo order9.2mmC9.2 U3434mm pitch · 7% openTo order9.2mmC9.2 U37.9837.98mm pitch · 6% openTo order10mmC10 U1212mm pitch · 69% openIn stock10mmC10 U1414mm pitch · 69% openTo order10mmC10 U1515mm pitch · 44% openIn stock10mmC10 U3030mm pitch · 11% openTo order15mmC15 U4040mm pitch · 14% openTo order15mmC15 U6060mm pitch · 6% openTo order20mmC20 U4040mm pitch · 25% openTo order20mmC20 U5050mm pitch · 16% openTo order25mmC25 U3535mm pitch · 51% openTo order25mmC25 U7070mm pitch · 13% openTo order30mmC30 U7070mm pitch · 18% openTo order40mmC40 U6060mm pitch · 44% openTo order50mmC50 U100100mm pitch · 25% openTo order

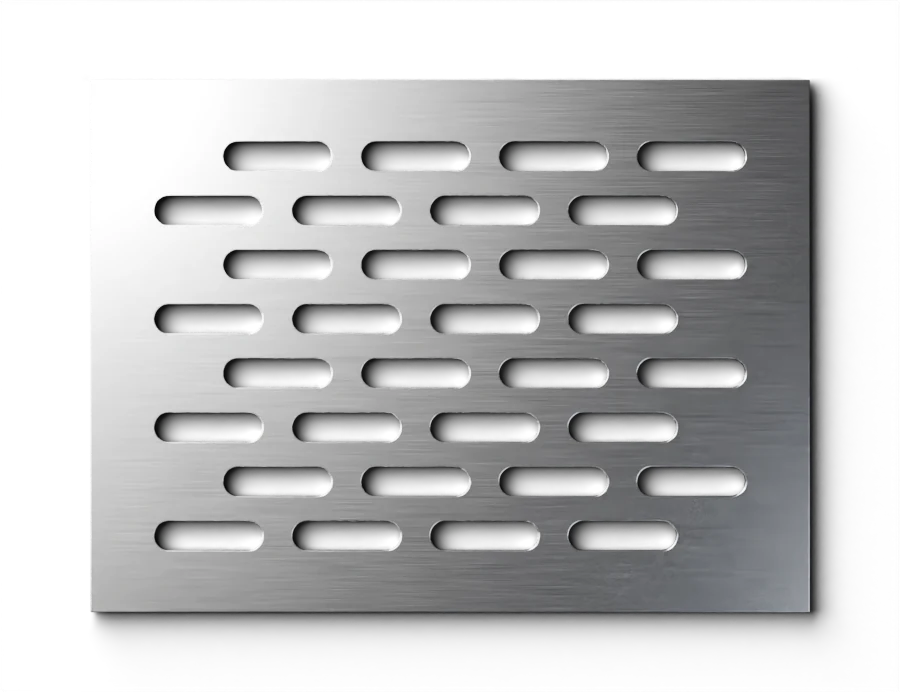

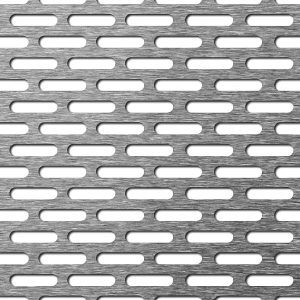

Slotted holes

5 x 20mmLR5x20slottedCall us
Not sure which size you need?Tell us the thickness, sheet size and quantity and we’ll help you choose and come back with a price. We also make specials to your drawing.

0117 963 4579Email us

How to read a pattern code

RRound hole. R5 is a 5mm round hole.
CSquare hole. C10 is a 10mm square hole.
LRSlotted hole. LR3x20 is a 3mm x 20mm slot.

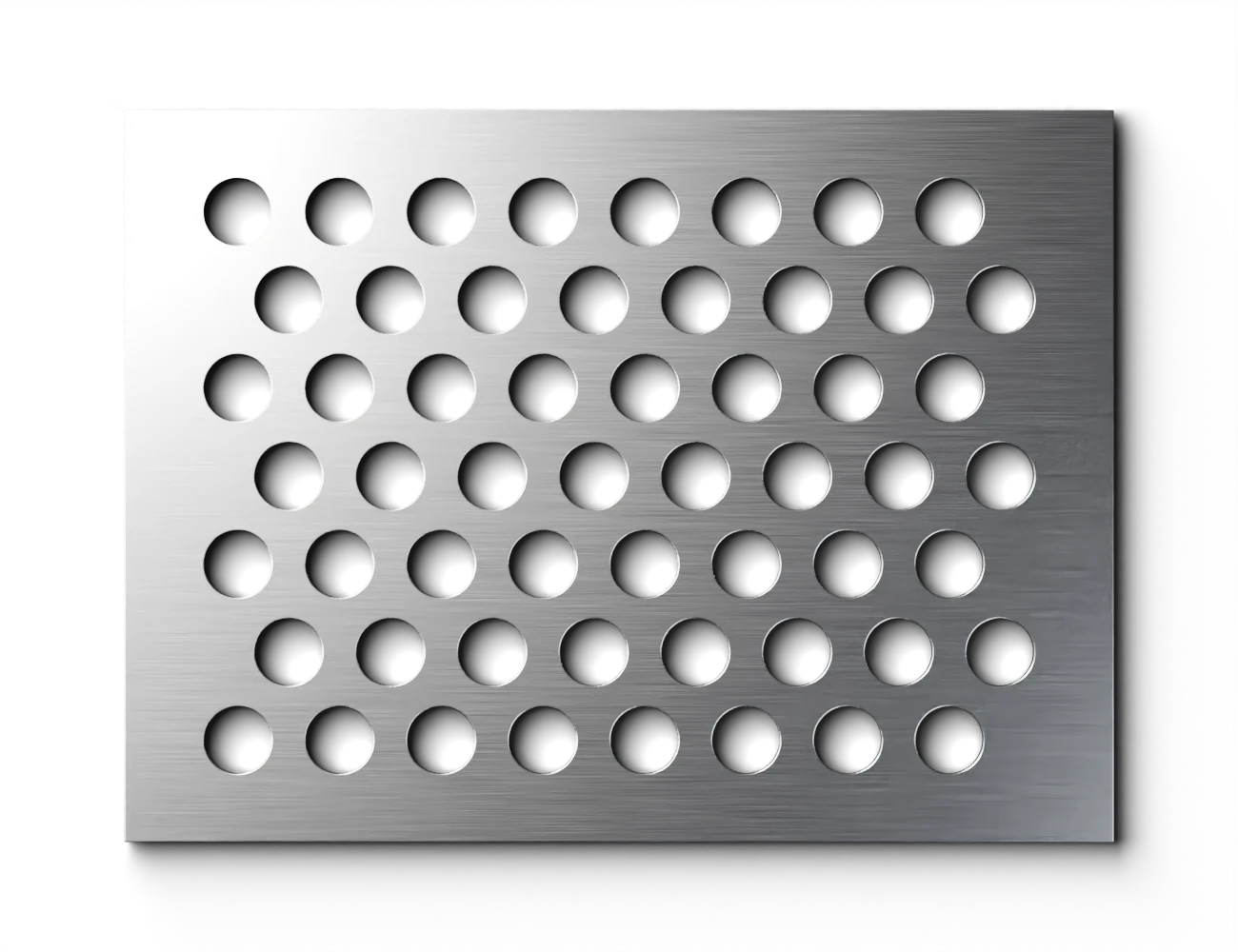

TStaggered pitch at 60°. T8 means the holes are 8mm apart, centre to centre.
USquare or in-line pitch. U15 means the holes are 15mm apart in straight rows.
%Open area: how much of the sheet is holes. More open area lets more light, air and water through.

Common questions

Should I choose 304 or 316?

Go with the grade your drawing or specification asks for. If it doesn’t say, give us a call on 0117 963 4579 and we’ll talk it through with you.

Can you cut perforated sheet to size?

Yes. We guillotine sheets to size here in Bristol while you wait, and we can fold, roll and fabricate panels, guards and trays to your drawing.

What sheet sizes do you stock?

Standard sheets are 2000 x 1000mm (2m x 1m), 2500 x 1250mm and 3000 x 1500mm. Each pattern page shows which thickness and sheet size combinations are on the shelf.

How quickly can I get it?

Stock sheets go out on next working day delivery anywhere in the UK. Sizes marked “To order” are usually ready in 5-7 days.

Can you make a pattern or size that isn’t listed?

Often, yes. Send us your drawing or tell us the hole size, pitch, thickness and quantity and we’ll let you know what we can do.

How do I get a price?

Call us on 0117 963 4579 or email holes@kentons.biz with the pattern, thickness, sheet size and quantity, and we’ll come back to you.
