Woven wire mesh

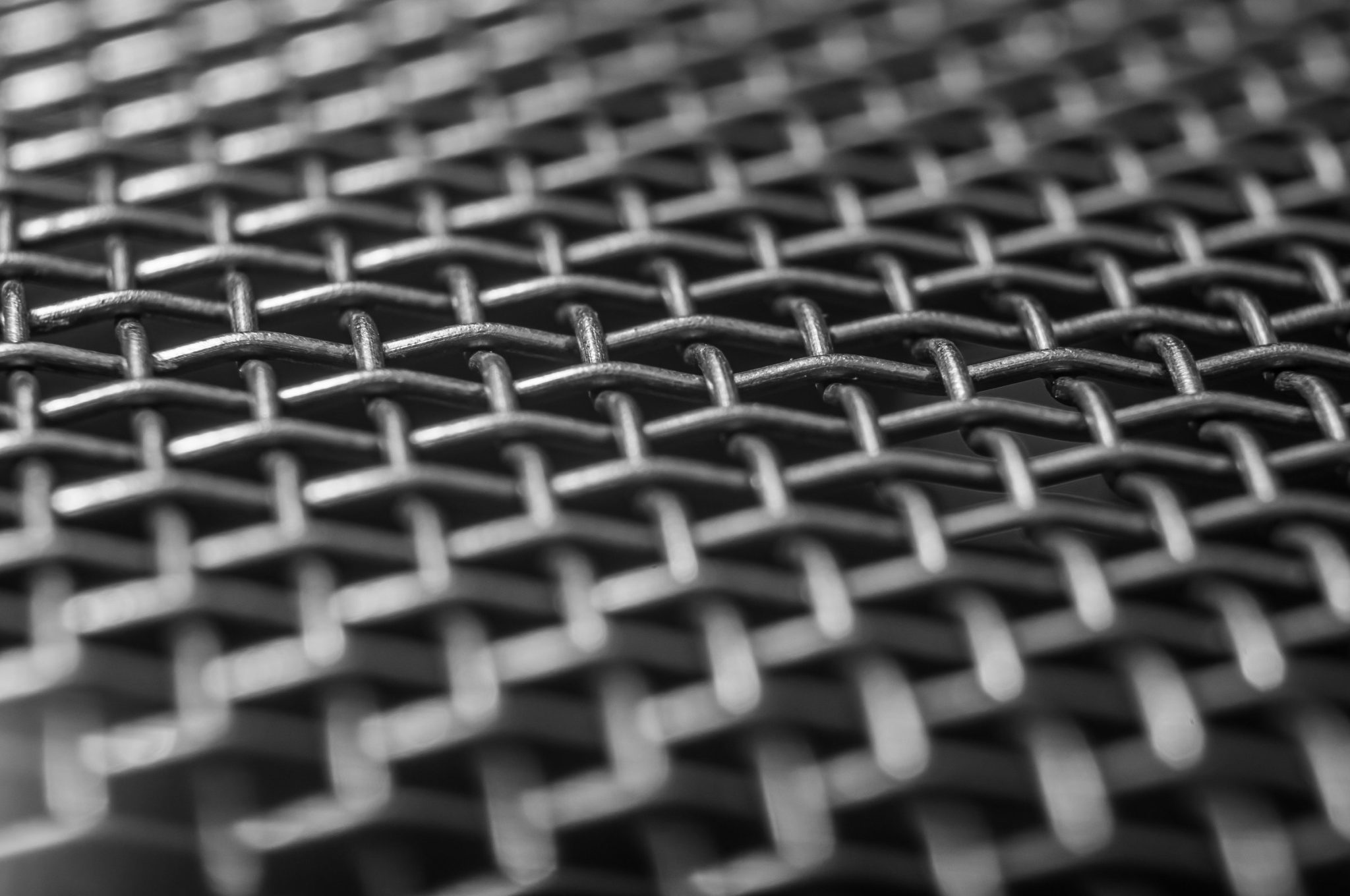

Plain-weave stainless mesh from 2 mesh to 100 mesh, plus heavy crimped architectural mesh. Coarse meshes come as full sheets, and fine meshes on rolls, cut to the length you need.
Choose a mesh
From coarse to fine
Mesh count is the number of openings per inch. Slide, or pick a mesh below, to see each mesh we keep, with its opening, wire and how it comes.

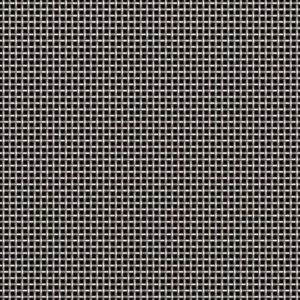

20 openings per inch (25.4mm), wire centres 1.27mm apart.
View 20 mesh →

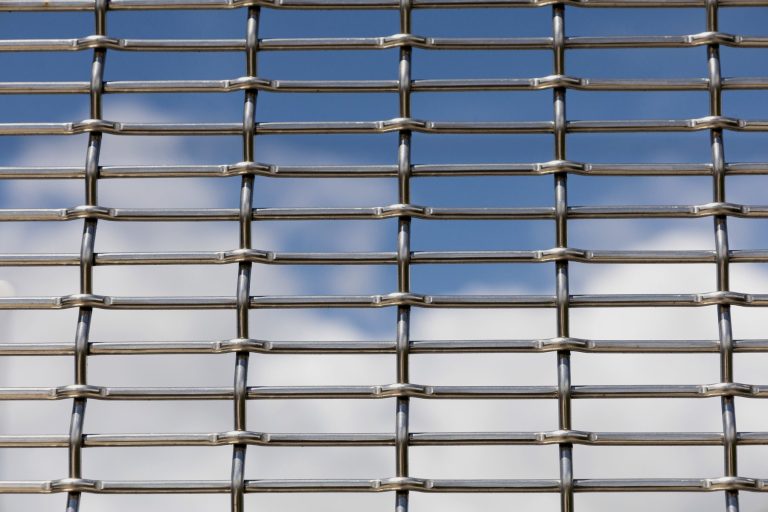

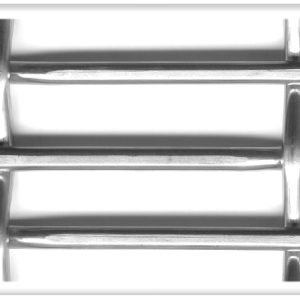

Heavy crimped 316 stainless in three weaves (KAM1 to KAM3), in rigid 2440 x 1220mm sheets. Made to order in 5–7 days.
Every mesh
All woven meshes
Every mesh we keep, side by side, including the different wire sizes and roll widths. Press Get a price and tell us the length or number of sheets.
| Mesh | Wire | Opening | Open area | Supplied as | Grades | Availability | ||
|---|---|---|---|---|---|---|---|---|

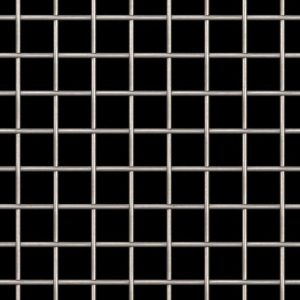

 | 2 meshKW21.6mm wire, 11.1mm opening, 76% open, Sheet, 2440 x 1220mm, 304 and 316 | 1.6mm | 11.1mm | 76% | Sheet, 2440 x 1220mm | 304 and 316 | On the shelf | |

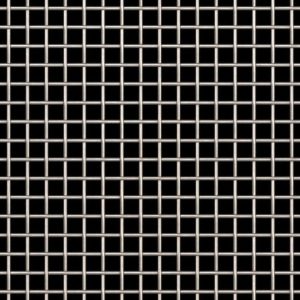

 | 4 meshKW41.5mm wire, 4.85mm opening, 58% open, Sheet, 2440 x 1220mm, 316 | 1.5mm | 4.85mm | 58% | Sheet, 2440 x 1220mm | 316 | On the shelf | |
| 4 meshKW41.6mm wire, 4.75mm opening, 56% open, Sheet, 2440 x 1220mm, 316 | 1.6mm | 4.75mm | 56% | Sheet, 2440 x 1220mm | 316 | On the shelf | |

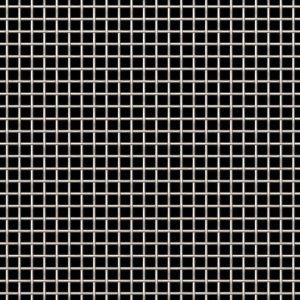

 | 6 meshKW61.2mm wire, 3.03mm opening, 51% open, Sheet, 2440 x 1220mm, 316 | 1.2mm | 3.03mm | 51% | Sheet, 2440 x 1220mm | 316 | On the shelf | |

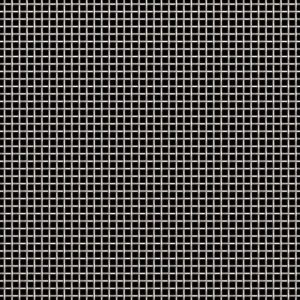

 | 10 meshKW100.56mm wire, 1.98mm opening, 61% open, Roll, width on request, 316 | 0.56mm | 1.98mm | 61% | Roll, width on request | 316 | On the shelf | |
| 10 meshKW100.9mm wire, 1.64mm opening, 42% open, Roll, 1220mm wide, 304 | 0.9mm | 1.64mm | 42% | Roll, 1220mm wide | 304 | On the shelf | |

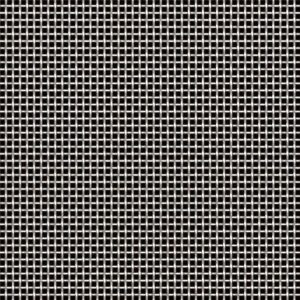

 | 16 meshKW160.35mm wire, 1.23mm opening, 61% open, Roll, 1000mm wide, Aluminium | 0.35mm | 1.23mm | 61% | Roll, 1000mm wide | Aluminium | On the shelf | |
| 16 meshKW160.35mm wire, 1.23mm opening, 61% open, Roll, 1200mm wide, 316 | 0.35mm | 1.23mm | 61% | Roll, 1200mm wide | 316 | On the shelf | |
| 16 meshKW160.236mm wire, 1.35mm opening, 72% open, Roll, 1530mm wide, 316 | 0.236mm | 1.35mm | 72% | Roll, 1530mm wide | 316 | On the shelf | |
 | 20 meshKW200.3mm wire, 0.97mm opening, 58% open, Roll, 1000mm wide, 304 and 316 | 0.3mm | 0.97mm | 58% | Roll, 1000mm wide | 304 and 316 | On the shelf | |
 | 30 meshKW300.21mm wire, 0.64mm opening, 57% open, Roll, 1220mm wide, 316 | 0.21mm | 0.64mm | 57% | Roll, 1220mm wide | 316 | On the shelf | |
| 30 meshKW300.165mm wire, 0.68mm opening, 65% open, Roll, 1250mm wide, 304 | 0.165mm | 0.68mm | 65% | Roll, 1250mm wide | 304 | On the shelf | |
| 30 meshKW300.28mm wire, 0.57mm opening, 45% open, Roll, 1220mm wide, 316 | 0.28mm | 0.57mm | 45% | Roll, 1220mm wide | 316 | On the shelf | |
 | 60 meshKW600.16mm wire, 0.26mm opening, 38% open, Roll, 1220mm wide, 316 | 0.16mm | 0.26mm | 38% | Roll, 1220mm wide | 316 | On the shelf | |

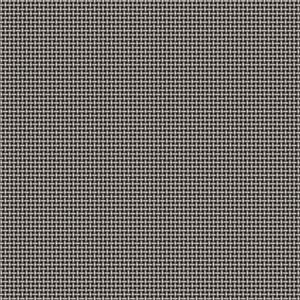

 | 80 meshKW800.12mm wire, 0.2mm opening, 39% open, Roll, 1220mm wide, 304 | 0.12mm | 0.2mm | 39% | Roll, 1220mm wide | 304 | On the shelf | |
 | 100 meshKW1000.1mm wire, 0.154mm opening, 37% open, Roll, 1220mm wide, 316 | 0.1mm | 0.154mm | 37% | Roll, 1220mm wide | 316 | On the shelf | |
 | Architectural meshKAM1, heavy crimped4.1mm wire, Sheet, 2440 x 1220mm, 316 | 4.1mm | – | – | Sheet, 2440 x 1220mm | 316 | Made to order, 5 to 7 days | |

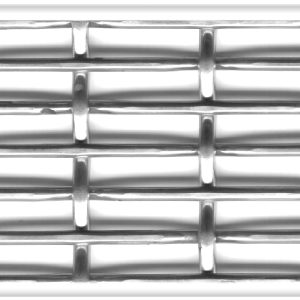

 | Architectural meshKAM2, heavy crimped2.6mm wire, Sheet, 2440 x 1220mm, 316 | 2.6mm | – | – | Sheet, 2440 x 1220mm | 316 | Made to order, 5 to 7 days | |
 | Architectural meshKAM3, heavy crimped2.6mm wire, Sheet, 2440 x 1220mm, 316 | 2.6mm | – | – | Sheet, 2440 x 1220mm | 316 | Made to order, 5 to 7 days |
Need a few metres off a roll, or a mesh that isn’t listed? Tell us what you need
Sheets or rolls
Two ways it comes
The coarser meshes are stiff enough to stock as flat sheets. Finer meshes come on rolls, and we cut whatever length you need.

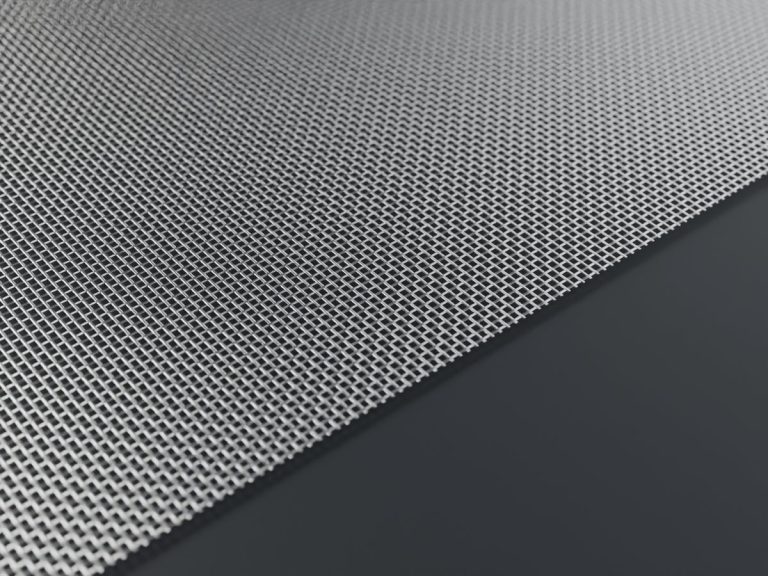

Sheets
Flat, full-size sheets of the coarse meshes.
- Meshes
- 2, 4 and 6 mesh
- Sheet size
- 2440 x 1220mm
- Grades
- 304 and 316 stainless

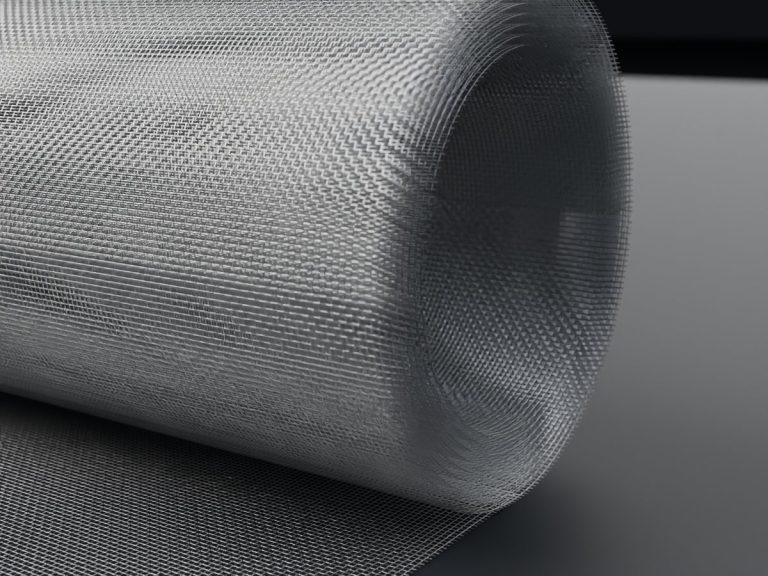

Rolls
The finer meshes on rolls, cut to the length you need.
- Meshes
- 10 to 100 mesh
- Roll widths
- 1000 to 1530mm
- Grades
- 304 and 316 stainless, 16 mesh in aluminium
Only need a few metres off a roll? Tell us the length
Reading a mesh count
What the number means
Mesh count is how many openings there are in one inch (25.4mm), counted along a row. The higher the number, the finer the mesh.
Download the Stock Guide
Every woven mesh we keep, with its mesh count, wire, opening and how it comes.
Woven wire mesh starts on page 33. Updated October 2026. 44 pages, PDF, 4.8MB.
Woven wire mesh
FAQ
Have a question we haven’t answered? Call or email and our sales team can check stock and sizes for you.
What does mesh count mean?
It is the number of openings in one inch (25.4mm), counted along a row of wires. The higher the number, the finer the mesh.
Can I buy less than a full roll?
Yes. We cut lengths off the roll, so tell us how many metres you need and the mesh, and we will price it.
How wide are the rolls?
Between 1000 and 1530mm, depending on the mesh. The width for each mesh is shown in the mesh selector above and on each product page.
What size are the sheets?
The coarser meshes, 2, 4 and 6 mesh, come as full sheets 2440 x 1220mm.
Which grades do you stock?
Stainless steel 304 and 316, plus 16 mesh in aluminium. Each product page shows which grades we keep for that mesh.
How long does architectural mesh take?
Our heavy crimped architectural mesh is made to order, usually in 5 to 7 days. We give you a date when we price it.
Do you deliver?
Yes, we deliver across the UK. Ring or email the sales office and we can check stock and price it with delivery. If you’re outside the UK, email us and we’ll let you know if we can help.
