10mm Square Hole Mild Steel Perforated Sheet (C10 U14)
Description
C10 U14. 10mm square hole, 14mm in-line pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

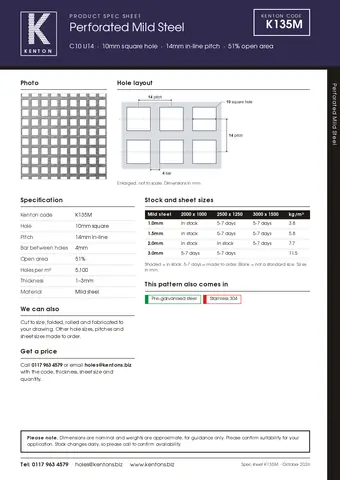

Perforated sheet, mild steel, c10 u14. Kenton code K135M
10mm square hole mild steel perforated sheet
C10 U14 is a 10mm square hole perforated sheet in mild steel, with the holes on a 14mm in-line pitch giving 51% open area. We keep it in stock, in thicknesses from 1 to 3mm.
Also written: C10U14 · 10mm square hole 14mm pitch · 10mm square hole on 14mm centres
| ThicknessMild steel, K135M | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 1.0mm | ✓ In stock | 5 to 7 days | 5 to 7 days | 3.8 |
| 1.5mm | ✓ In stock | 5 to 7 days | 5 to 7 days | 5.8 |
| 2.0mm | ✓ In stock | ✓ In stock | 5 to 7 days | 7.7 |
| 3.0mm | 5 to 7 days | 5 to 7 days | 11.5 | |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout
Enlarged, not to scale. Dimensions in mm.
About C10 U14
C10 U14 is a 10mm square hole perforated sheet in mild steel, with the holes on a 14mm in-line pitch giving 51% open area. We keep it in stock, in thicknesses from 1 to 3mm.
In stock: 1mm and 1.5mm in 2m x 1m sheets; 2mm in 2m x 1m and 2.5m x 1.25m. Everything else in the table is made to order in 5 to 7 days.
What does C10 U14 mean?
C10 is a 10mm square hole. U14 means the holes sit on a 14mm in-line pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from C10 U14 is marked. See every mild steel pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C6 U9 | 6mm square | 9mm in-line | 44% | 1–2mm | ✓ In stock |
| C8 U10 | 8mm square | 10mm in-line | 64% | 1–2mm | ✓ In stock |
| C8 U12 | 8mm square | 12mm in-line | 44% | 1–3mm | ✓ In stock |
| C10 U12 | 10mm square | 12mm in-line | 69% | 1–2mm | ✓ In stock |
| YOU’RE VIEWINGC10 U14 | 10mm square | 14mm in-line | 51% | 1–3mm | ✓ In stock |
| C10 U15 | 10mm square | 15mm in-line | 44% | 1–4mm | ✓ In stock |
| C15 U20 | 15mm square | 20mm in-line | 56% | 1–3mm | ✓ In stock |
Highlighted where it differs from C10 U14
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
