R2 T3.5 hole layout: 2mm round holes, 3.5mm staggered pitch, 1.5mm bar, 3.03mm row spacing

R2 T3.5. 2mm round hole, 3.5mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

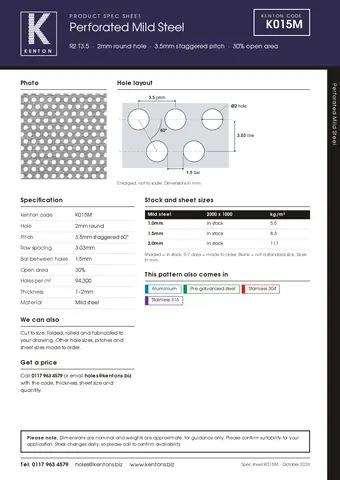

R2 T3.5 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K015M for easy re-ordering.Download spec sheet PDF

Perforated sheet, mild steel, r2 t3.5. Kenton code K015M

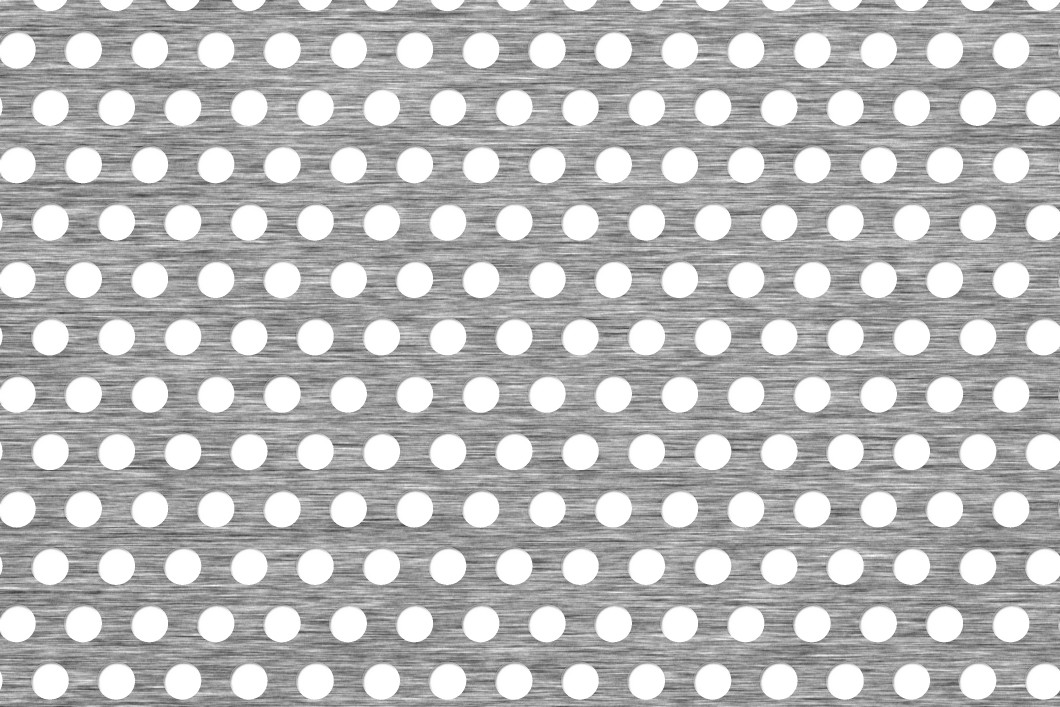

2mm hole mild steel perforated sheet

R2 T3.5 is a 2mm round hole perforated sheet in mild steel, with the holes on a 3.5mm staggered pitch giving 30% open area. We keep it in stock, in thicknesses from 1 to 2mm.

In stock, next working day delivery

Product specificationThe measurements of R2 T3.5

Hole2mm round

Pitch3.5mm staggered 60°

Row spacing3.03mm

Bar between holes1.5mm

Open area30%

Holes per m²94,300

Thickness1–2mm

MaterialMild steel

Also written: R2T3.5 · 2mm R2 · 2mm hole 3.5mm pitch · 2mm round hole on 3.5mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price

ThicknessMild steel, K015M	Sheet size (mm)	Weightkg/m²
ThicknessMild steel, K015M	2000 x 1000	Weightkg/m²
1.0mm	✓ In stock	5.5
1.5mm	✓ In stock	8.3
2.0mm	✓ In stock	11.1

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Hole layout

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R2 T3.5

R2 T3.5 is a 2mm round hole perforated sheet in mild steel, with the holes on a 3.5mm staggered pitch giving 30% open area. We keep it in stock, in thicknesses from 1 to 2mm.

In stock: 1mm, 1.5mm and 2mm in 2m x 1m sheets. Everything else in the table is made to order in 5 to 7 days.

What does R2 T3.5 mean?

R2 is a 2mm round hole. T3.5 means the holes sit on a 3.5mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Aluminium Pre-galvanised steel Stainless 304 Stainless 316

Not quite right? Compare similar patterns

Anything different from R2 T3.5 is marked. See every mild steel pattern, or work out a different pattern

Pattern	Hole	Pitch	Open area	Thickness	Stock
R1.1 T2	1.1mm round	2mm staggered	27%	0.75–1mm	✓ In stock
R1.5 T2.5	1.5mm round	2.5mm staggered	33%	1–1.5mm	✓ In stock
R2 T3	2mm round	3mm staggered	40%	1mm	✓ In stock
YOU’RE VIEWINGR2 T3.5	2mm round	3.5mm staggered	30%	1–2mm	✓ In stock
R2.5 T4	2.5mm round	4mm staggered	35%	1–1.5mm	5 to 7 days
R3 T4	3mm round	4mm staggered	51%	1–1.5mm	✓ In stock
R3 T5	3mm round	5mm staggered	33%	1–3mm	✓ In stock

Highlighted where it differs from R2 T3.5
