R12 T16 hole layout: 12mm round holes, 16mm staggered pitch, 4mm bar, 13.86mm row spacing

R12 T16. 12mm round hole, 16mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

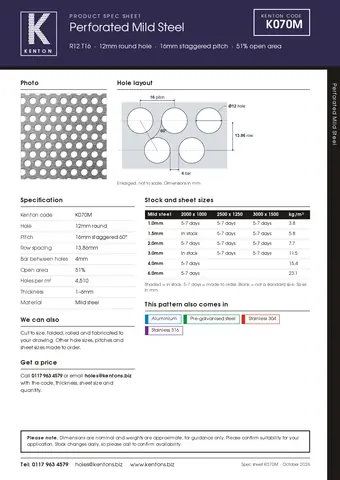

R12 T16 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K070M for easy re-ordering.Download spec sheet PDF

Perforated sheet, mild steel, r12 t16. Kenton code K070M

12mm hole mild steel perforated sheet

R12 T16 is a 12mm round hole perforated sheet in mild steel, with the holes on a 16mm staggered pitch giving 51% open area. We keep it in stock, in thicknesses from 1 to 6mm.

In stock, next working day delivery

Product specificationThe measurements of R12 T16

Hole12mm round

Pitch16mm staggered 60°

Row spacing13.86mm

Bar between holes4mm

Open area51%

Holes per m²4,510

Thickness1–6mm

MaterialMild steel

Also written: R12T16 · 12mm R12 · 12mm hole 16mm pitch · 12mm round hole on 16mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price

ThicknessMild steel, K070M	Sheet size (mm)			Weightkg/m²
ThicknessMild steel, K070M	2000 x 1000	2500 x 1250	3000 x 1500	Weightkg/m²
1.0mm	5 to 7 days	5 to 7 days	5 to 7 days	3.8
1.5mm	✓ In stock	5 to 7 days	5 to 7 days	5.8
2.0mm	5 to 7 days	5 to 7 days	5 to 7 days	7.7
3.0mm	✓ In stock	5 to 7 days	5 to 7 days	11.5
4.0mm	5 to 7 days			15.4
6.0mm	5 to 7 days			23.1

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Hole layout

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R12 T16

R12 T16 is a 12mm round hole perforated sheet in mild steel, with the holes on a 16mm staggered pitch giving 51% open area. We keep it in stock, in thicknesses from 1 to 6mm.

In stock: 1.5mm and 3mm in 2m x 1m sheets. Everything else in the table is made to order in 5 to 7 days.

What does R12 T16 mean?

R12 is a 12mm round hole. T16 means the holes sit on a 16mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Aluminium Pre-galvanised steel Stainless 304 Stainless 316

Not quite right? Compare similar patterns

Anything different from R12 T16 is marked. See every mild steel pattern, or work out a different pattern

Pattern	Hole	Pitch	Open area	Thickness	Stock
R8 T11	8mm round	11mm staggered	48%	1–2mm	✓ In stock
R8 T12	8mm round	12mm staggered	40%	1–6mm	✓ In stock
R10 T14	10mm round	14mm staggered	46%	1–2mm	5 to 7 days
R10 T15	10mm round	15mm staggered	40%	1–5mm	✓ In stock
R10 U15	10mm round	15mm square	35%	1–3mm	5 to 7 days
YOU’RE VIEWINGR12 T16	12mm round	16mm staggered	51%	1–6mm	✓ In stock
R15 T21	15mm round	21mm staggered	46%	1–4mm	5 to 7 days

Highlighted where it differs from R12 T16
