10mm Hole Mild Steel Perforated Sheet (R10 T15)
Description
R10 T15. 10mm round hole, 15mm staggered pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.
Perforated sheet, mild steel, r10 t15. Kenton code K065M

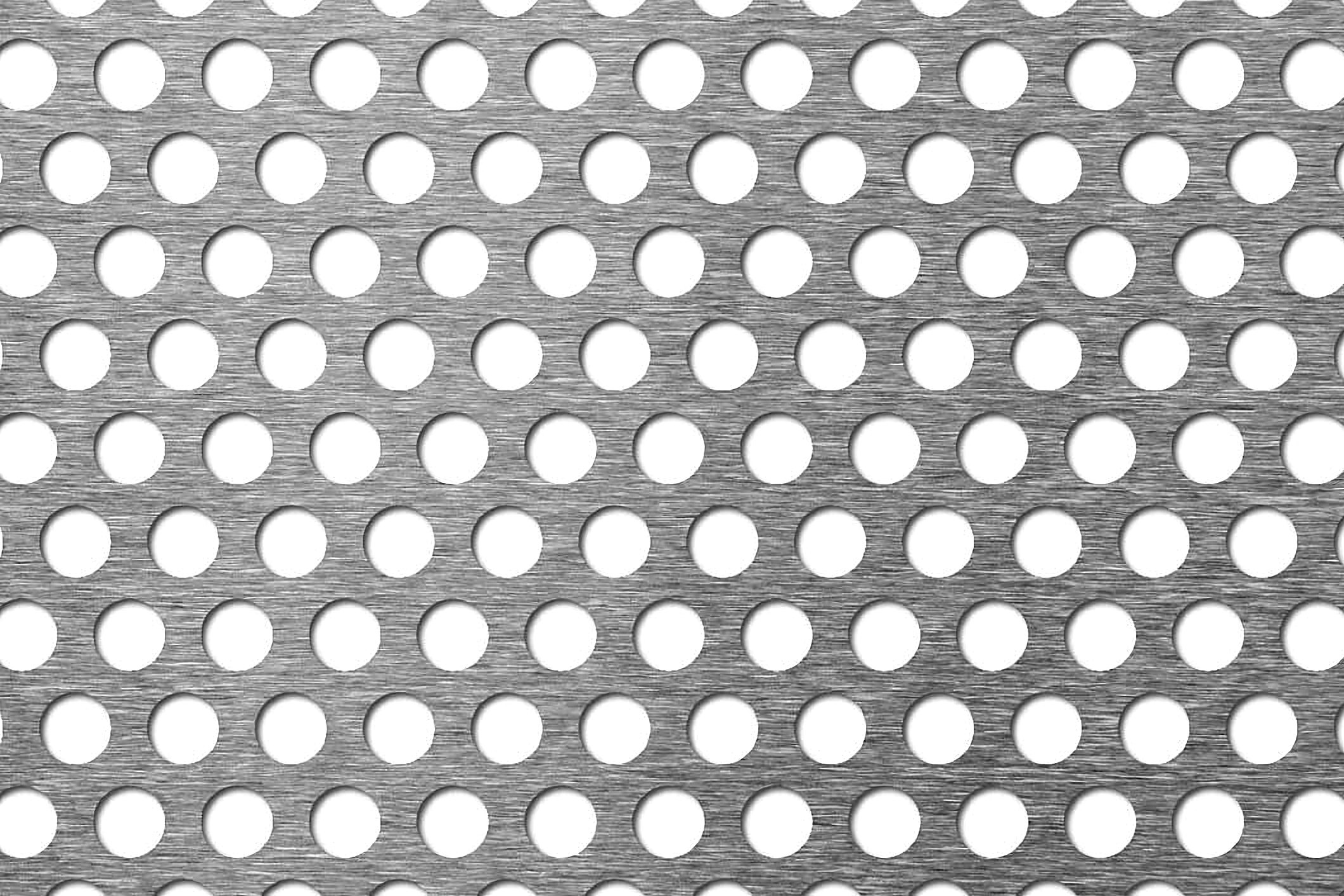

10mm hole mild steel perforated sheet
R10 T15 is a 10mm round hole perforated sheet in mild steel, with the holes on a 15mm staggered pitch giving 40% open area. We keep it in stock, in thicknesses from 1 to 5mm.
Also written: R10T15 · 10mm R10 · 10mm hole 15mm pitch · 10mm round hole on 15mm staggered centres
| ThicknessMild steel, K065M | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 1.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 4.7 |
| 1.5mm | ✓ In stock | ✓ In stock | 5 to 7 days | 7.0 |
| 2.0mm | ✓ In stock | ✓ In stock | ✓ In stock | 9.4 |
| 3.0mm | ✓ In stock | ✓ In stock | 5 to 7 days | 14.1 |
| 4.0mm | 5 to 7 days | 5 to 7 days | 18.7 | |
| 5.0mm | ✓ In stock | 5 to 7 days | 5 to 7 days | 23.4 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout
Enlarged, not to scale. Dimensions in mm.
About R10 T15
R10 T15 is a 10mm round hole perforated sheet in mild steel, with the holes on a 15mm staggered pitch giving 40% open area. We keep it in stock, in thicknesses from 1 to 5mm.
In stock: 1.5mm and 3mm in 2m x 1m and 2.5m x 1.25m sheets; 2mm in 2m x 1m, 2.5m x 1.25m and 3m x 1.5m; 5mm in 2m x 1m. Everything else in the table is made to order in 5 to 7 days.
What does R10 T15 mean?
R10 is a 10mm round hole. T15 means the holes sit on a 15mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from R10 T15 is marked. See every mild steel pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R8 T11 | 8mm round | 11mm staggered | 48% | 1–2mm | ✓ In stock |
| R8 T12 | 8mm round | 12mm staggered | 40% | 1–6mm | ✓ In stock |
| R10 T14 | 10mm round | 14mm staggered | 46% | 1–2mm | 5 to 7 days |
| R10 U15 | 10mm round | 15mm square | 35% | 1–3mm | 5 to 7 days |
| YOU’RE VIEWINGR10 T15 | 10mm round | 15mm staggered | 40% | 1–5mm | ✓ In stock |
| R10 U21 | 10mm round | 21mm square | 18% | 1–3mm | 5 to 7 days |
| R12 T16 | 12mm round | 16mm staggered | 51% | 1–6mm | ✓ In stock |
Highlighted where it differs from R10 T15
