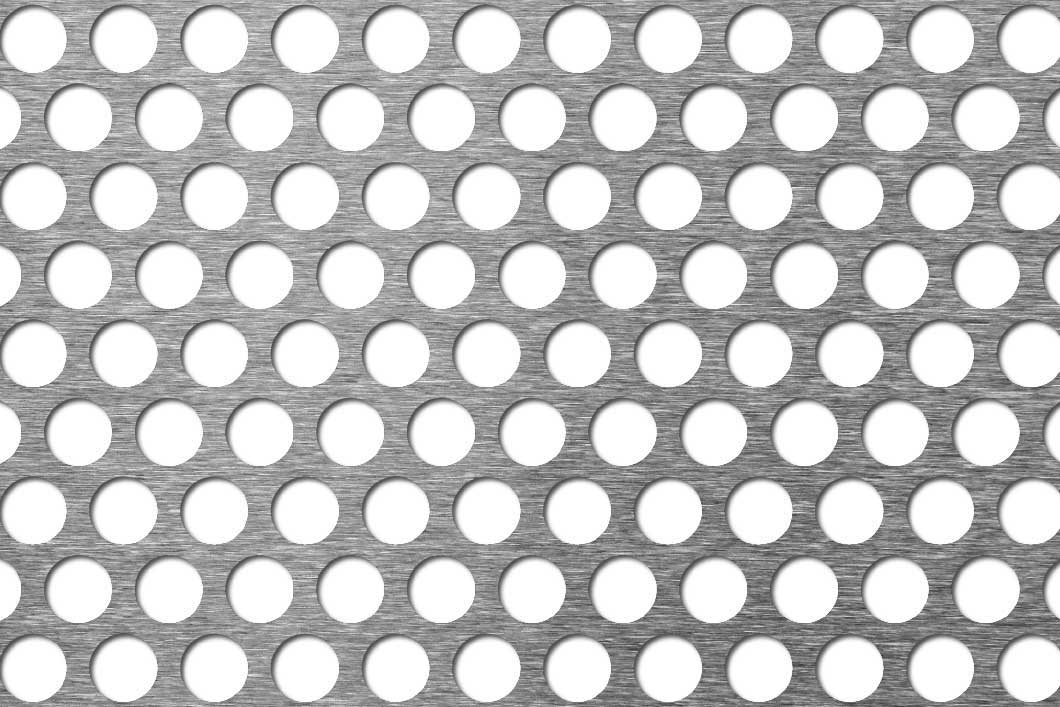

R12 T16 perforated sheet: 12mm round holes on 16mm staggered pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

12mm Hole 304 Stainless Steel Perforated Sheet (R12 T16)

Perforated sheetStainless 304Kenton code K070S

12mmRound hole
16mmStaggered pitch
51%Open area
1–3mmThickness

Stock and sheet sizes

Stainless 304K070S 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 5-7 days 3.9
1.5mm 5-7 days 5-7 days 5-7 days 5.9
2.0mm 5-7 days 5-7 days 5-7 days 7.8
3.0mm 5-7 days 11.8

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

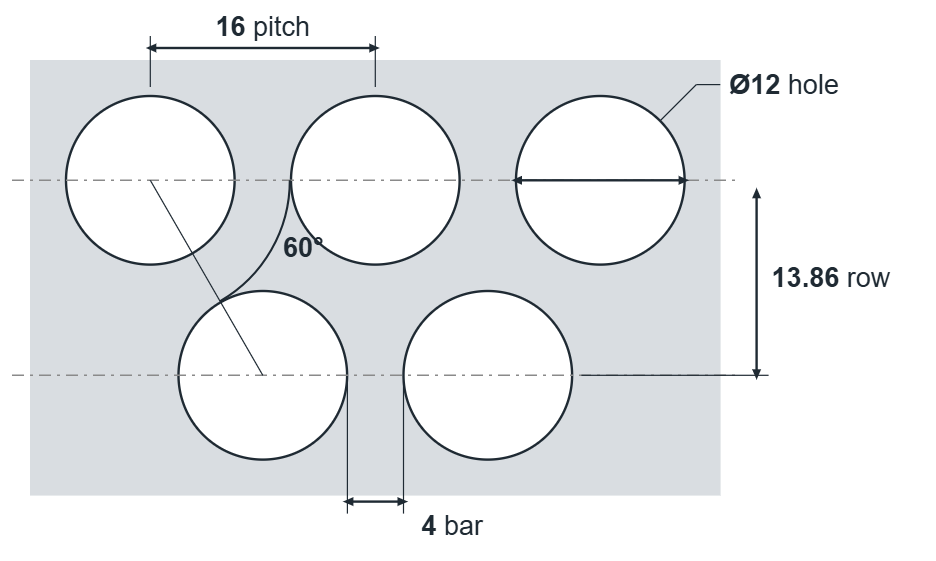

R12 T16 hole layout: 12mm round holes, 16mm staggered pitch, 4mm bar, 13.86mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
12mm round
Pitch
16mm staggered 60°
Row spacing
13.86mm
Bar between holes
4mm
Open area
51%
Holes per m²
4,510
Thickness
1–3mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R12 T16 304 stainless steel perforated sheet

R12 T16 is a 12mm round hole perforated sheet in 304 stainless steel, with the holes on a 16mm staggered pitch giving 51% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 3mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R12 T16 mean?

R12 is a 12mm round hole. T16 means the holes sit on a 16mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steelStainless 316

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R10 T12 10mm round 12mm staggered 63% 1–2mm 5-7 days
R10 T13 10mm round 13mm staggered 54% 1mm ✓ In stock
R10 T15 10mm round 15mm staggered 40% 1–4mm ✓ In stock
R10 T18 10mm round 18mm staggered 28% 1–3mm 5-7 days
R12 T16This page 12mm round 16mm staggered 51% 1–3mm 5-7 days
R15 T20 15mm round 20mm staggered 51% 1.5mm ✓ In stock
R15 T21 15mm round 21mm staggered 46% 1–3mm ✓ In stock

The nearest 304 stainless steel round hole patterns to R12 T16. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
