10mm Square Hole 304 Stainless Steel Perforated Sheet (C10 U14)
Perforated sheetStainless 304Kenton code K135S
Stock and sheet sizes
| Stainless 304K135S | 2000 x 1000 | kg/m² |
|---|---|---|
| 1.0mm | 5-7 days | 3.9 |
| 1.5mm | 5-7 days | 5.9 |
| 2.0mm | 5-7 days | 7.8 |
✓ In stockon the shelf, ready to send5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details
Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 10mm square
- Pitch
- 14mm in-line
- Bar between holes
- 4mm
- Open area
- 69%
- Holes per m²
- 5,100
- Thickness
- 1–2mm
- Material
- Stainless 304

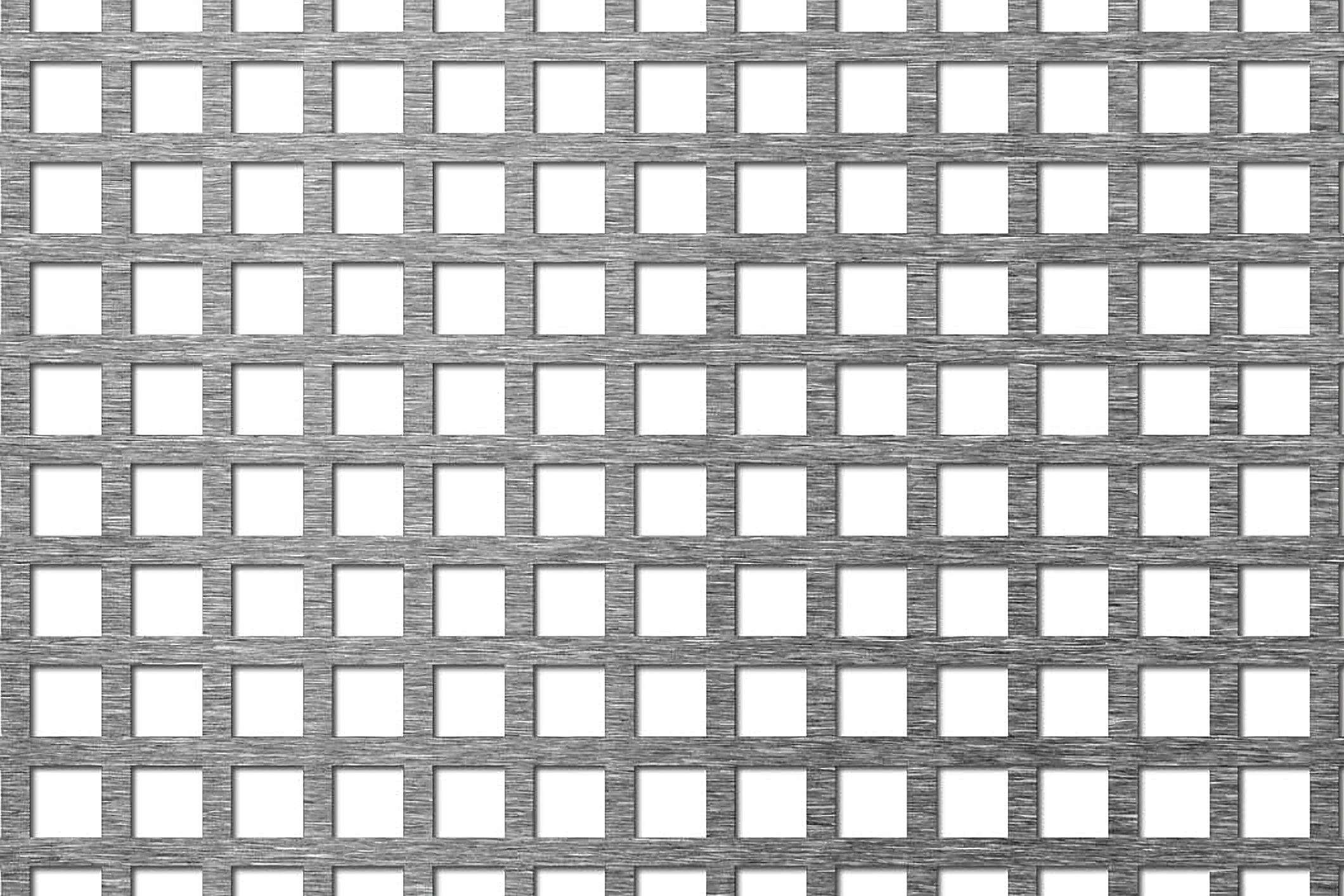

About C10 U14 304 stainless steel perforated sheet
C10 U14 is a 10mm square hole perforated sheet in 304 stainless steel, with the holes on a 14mm in-line pitch giving 69% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 2mm.
All sizes in the table are made to order, usually in 5-7 days.
What does C10 U14 mean?
C10 is a 10mm square hole. U14 means the holes sit on a 14mm in-line pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C8 U10 | 8mm square | 10mm in-line | 64% | 1–1.5mm | 5-7 days |
| C8 U12 | 8mm square | 12mm in-line | 44% | 1.5mm | ✓ In stock |
| C8 U24 | 8mm square | 24mm in-line | 11% | 1.5mm | 5-7 days |
| C10 U12 | 10mm square | 12mm in-line | 69% | 1–1.5mm | ✓ In stock |
| C10 U14This page | 10mm square | 14mm in-line | 69% | 1–2mm | 5-7 days |
| C10 U15 | 10mm square | 15mm in-line | 44% | 1.5–3mm | ✓ In stock |
| C10 U30 | 10mm square | 30mm in-line | 11% | 1.5mm | 5-7 days |
The nearest 304 stainless steel square hole patterns to C10 U14. See every 304 stainless steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
