10mm Square Hole 316 Stainless Steel Perforated Sheet (C10 U15)
Description


C10 U15. 10mm square hole, 15mm in-line pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

Perforated sheet, stainless 316, c10 u15. Kenton code K140S6
10mm square hole 316 stainless steel perforated sheet
C10 U15 is a 10mm square hole perforated sheet in 316 stainless steel, with the holes on a 15mm in-line pitch giving 44% open area. We keep it in stock, in 2mm thickness.
Also written: C10U15 · 10mm square hole 15mm pitch · 10mm square hole on 15mm centres
| ThicknessStainless 316, K140S6 | Sheet size (mm) | Weightkg/m² |
|---|---|---|
| 2000 x 1000 | ||
| 2.0mm | ✓ In stock | 8.9 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

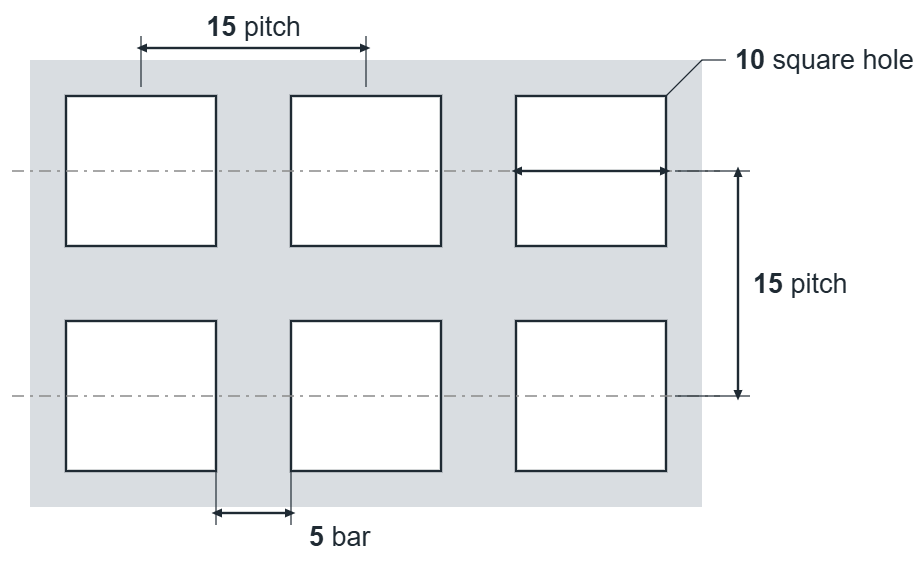

Hole layout

Enlarged, not to scale. Dimensions in mm.
About C10 U15
C10 U15 is a 10mm square hole perforated sheet in 316 stainless steel, with the holes on a 15mm in-line pitch giving 44% open area. We keep it in stock, in 2mm thickness.
In stock: 2mm in 2m x 1m sheets. Everything else in the table is made to order in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.
What does C10 U15 mean?
C10 is a 10mm square hole. U15 means the holes sit on a 15mm in-line pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from C10 U15 is marked. See every 316 stainless steel pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C10 U12 | 10mm square | 12mm in-line | 69% | 1–1.5mm | ✓ In stock |
| C10 U14 | 10mm square | 14mm in-line | 69% | 1–2mm | 5 to 7 days |
| YOU’RE VIEWINGC10 U15 | 10mm square | 15mm in-line | 44% | 2mm | ✓ In stock |
Highlighted where it differs from C10 U15
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
