10mm Square Hole 316 Stainless Steel Perforated Sheet (C10 U12)
Perforated sheetStainless 316Kenton code K130S6
Stock and sheet sizes
| Stainless 316K130S6 | 2000 x 1000 | kg/m² |
|---|---|---|
| 1.0mm | ✓ In stock | 2.4 |
| 1.5mm | ✓ In stock | 3.7 |
✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

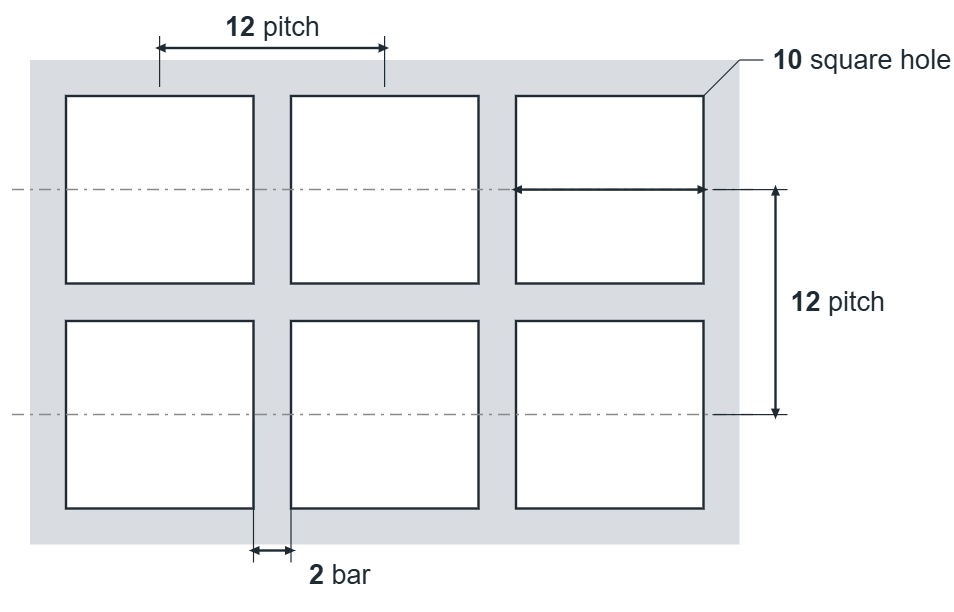

Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 10mm square
- Pitch
- 12mm in-line
- Bar between holes
- 2mm
- Open area
- 69%
- Holes per m²
- 6,940
- Thickness
- 1–1.5mm
- Material
- Stainless 316
About C10 U12 316 stainless steel perforated sheet
C10 U12 is a 10mm square hole perforated sheet in 316 stainless steel, with the holes on a 12mm in-line pitch giving 69% open area. We keep it in stock here in Bristol, in thicknesses from 1 to 1.5mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.
In stock: 1mm and 1.5mm in 2m x 1m sheets. Everything else in the table is made to order in 5-7 days.
What does C10 U12 mean?
C10 is a 10mm square hole. U12 means the holes sit on a 12mm in-line pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C10 U12This page | 10mm square | 12mm in-line | 69% | 1–1.5mm | ✓ In stock |
| C10 U15 | 10mm square | 15mm in-line | 44% | 2mm | ✓ In stock |
The nearest 316 stainless steel square hole patterns to C10 U12. See every 316 stainless steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
