25mm Square Hole Mild Steel Perforated Sheet (C25 U30)
Description
C25 U30. 25mm square hole, 30mm in-line pitch.

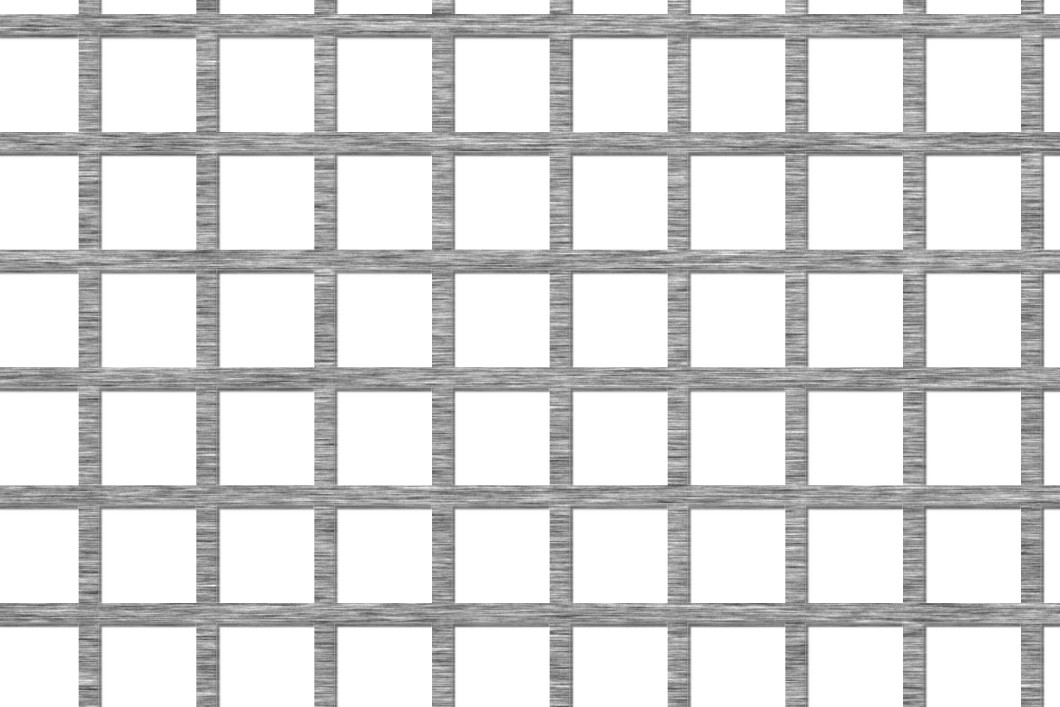

Hole layout. Enlarged, not to scale. Dimensions in mm.
Perforated sheet, mild steel, c25 u30. Kenton code K160M
25mm square hole mild steel perforated sheet
C25 U30 is a 25mm square hole perforated sheet in mild steel, with the holes on a 30mm in-line pitch giving 69% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 1 to 3mm.
Also written: C25U30 · 25mm square hole 30mm pitch · 25mm square hole on 30mm centres
| ThicknessMild steel, K160M | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 1.0mm | 5 to 7 days | 5 to 7 days | 2.4 | |
| 1.5mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 3.6 |
| 2.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 4.8 |
| 3.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 7.2 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout
Enlarged, not to scale. Dimensions in mm.
About C25 U30
C25 U30 is a 25mm square hole perforated sheet in mild steel, with the holes on a 30mm in-line pitch giving 69% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 1 to 3mm.
All sizes in the table are made to order, usually in 5 to 7 days.
What does C25 U30 mean?
C25 is a 25mm square hole. U30 means the holes sit on a 30mm in-line pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from C25 U30 is marked. See every mild steel pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C8 U10 | 8mm square | 10mm in-line | 64% | 1–2mm | ✓ In stock |
| C10 U12 | 10mm square | 12mm in-line | 69% | 1–2mm | ✓ In stock |
| C10 U14 | 10mm square | 14mm in-line | 51% | 1–3mm | ✓ In stock |
| C10 U15 | 10mm square | 15mm in-line | 44% | 1–4mm | ✓ In stock |
| C15 U20 | 15mm square | 20mm in-line | 56% | 1–3mm | ✓ In stock |
| C20 U25 | 20mm square | 25mm in-line | 64% | 1–3mm | 5 to 7 days |
| YOU’RE VIEWINGC25 U30 | 25mm square | 30mm in-line | 69% | 1–3mm | 5 to 7 days |
Highlighted where it differs from C25 U30
