25mm Square Hole Aluminium Perforated Sheet (C25 U30)
Description
C25 U30. 25mm square hole, 30mm in-line pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.
Perforated sheet, aluminium, c25 u30. Kenton code K075A
25mm square hole aluminium perforated sheet
C25 U30 is a 25mm square hole perforated sheet in aluminium, with the holes on a 30mm in-line pitch giving 69% open area. We keep it in stock, in thicknesses from 2 to 3mm.
Also written: C25U30 · 25mm square hole 30mm pitch · 25mm square hole on 30mm centres
| ThicknessAluminium, K075A | Sheet size (mm) | Weightkg/m² |
|---|---|---|
| 2500 x 1250 | ||
| 2.0mm | 5 to 7 days | 1.7 |
| 3.0mm | ✓ In stock | 2.5 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

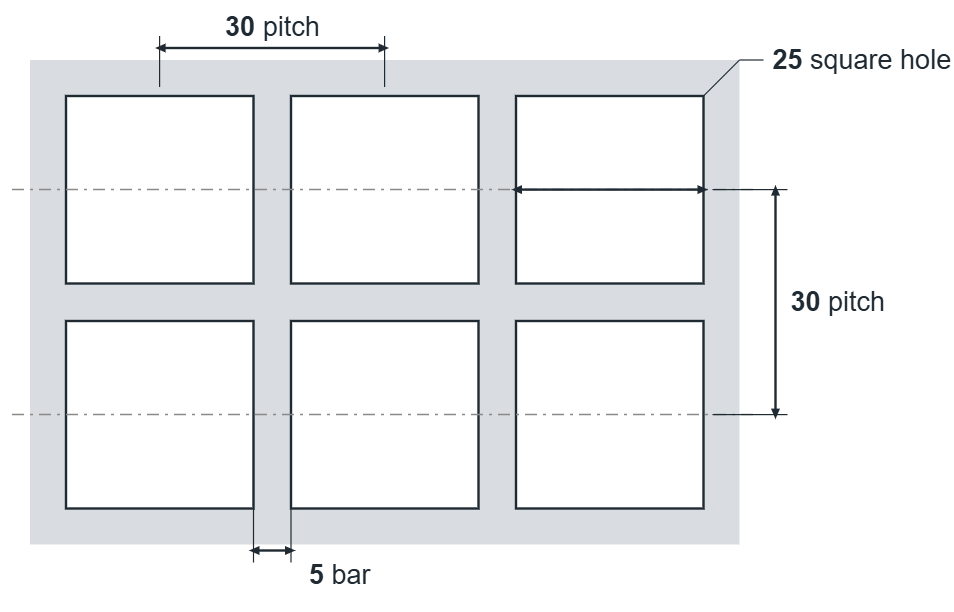

Hole layout
Enlarged, not to scale. Dimensions in mm.
About C25 U30
C25 U30 is a 25mm square hole perforated sheet in aluminium, with the holes on a 30mm in-line pitch giving 69% open area. We keep it in stock, in thicknesses from 2 to 3mm.
In stock: 3mm in 2.5m x 1.25m sheets. Everything else in the table is made to order in 5 to 7 days.
What does C25 U30 mean?
C25 is a 25mm square hole. U30 means the holes sit on a 30mm in-line pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from C25 U30 is marked. See every aluminium pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C6 U9 | 6mm square | 9mm in-line | 44% | 1.5mm | ✓ In stock |
| C7 U10 | 7mm square | 10mm in-line | 49% | 0.8–2mm | 5 to 7 days |
| C8 U12 | 8mm square | 12mm in-line | 44% | 1.5–2mm | 5 to 7 days |
| C8 U24 | 8mm square | 24mm in-line | 11% | 2mm | 5 to 7 days |
| C10 U15 | 10mm square | 15mm in-line | 44% | 1.5–2mm | ✓ In stock |

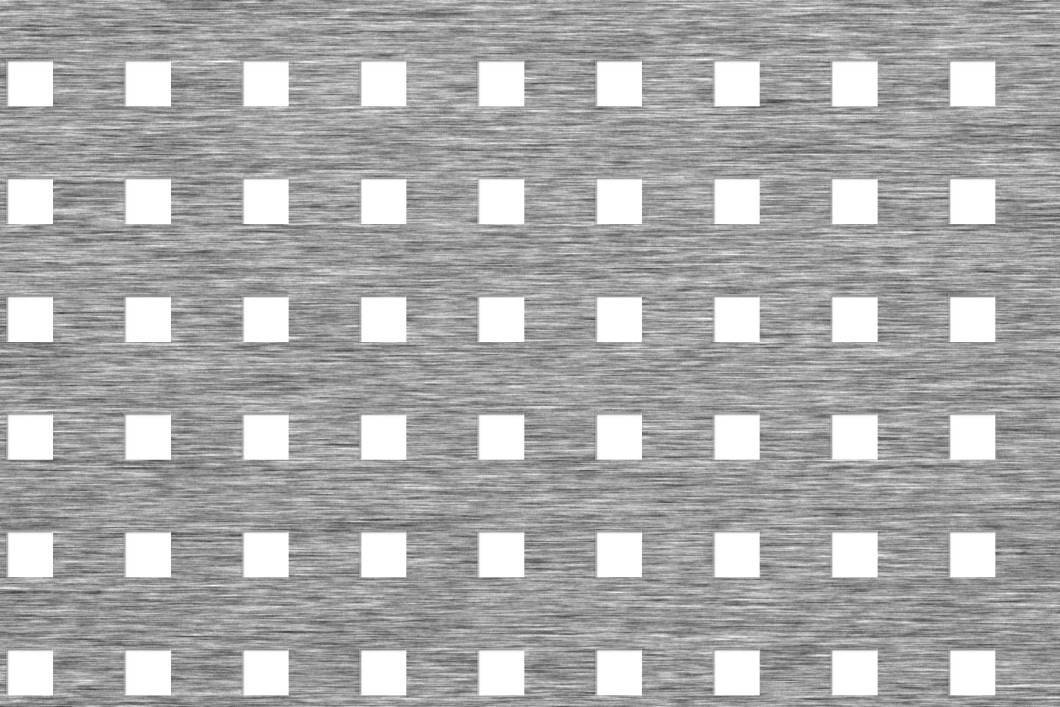

| C20 U50 | 20mm square | 50mm in-line | 16% | 1–3mm | 5 to 7 days |
| YOU’RE VIEWINGC25 U30 | 25mm square | 30mm in-line | 69% | 2–3mm | ✓ In stock |
Highlighted where it differs from C25 U30
