4mm Square Hole Aluminium Perforated Sheet (C4 U7)
Description
C4 U7. 4mm square hole, 7mm in-line pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

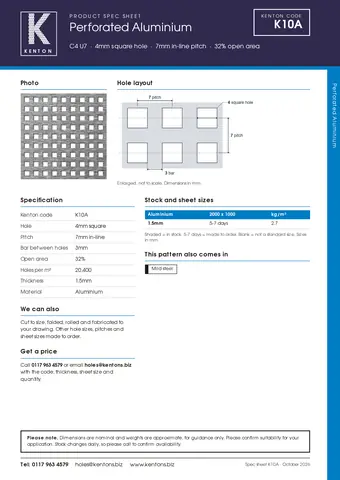

Perforated sheet, aluminium, c4 u7. Kenton code K10A

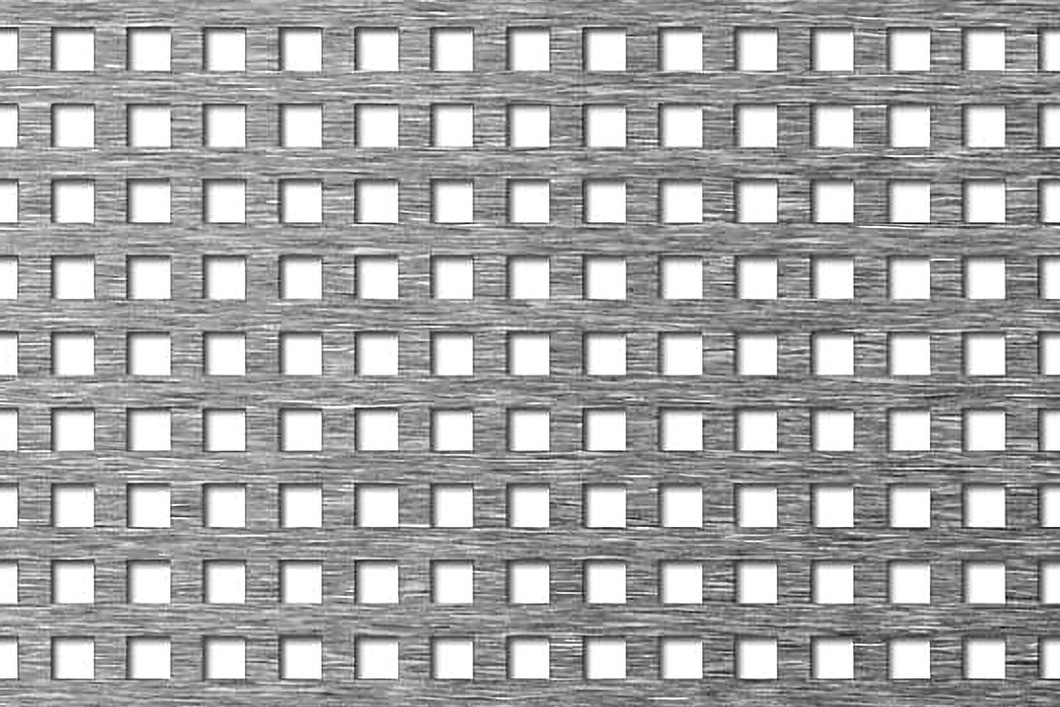

4mm square hole aluminium perforated sheet
C4 U7 is a 4mm square hole perforated sheet in aluminium, with the holes on a 7mm in-line pitch giving 32% open area. It’s made to order, usually in 5 to 7 days, in 1.5mm thickness.
Also written: C4U7 · 4mm square hole 7mm pitch · 4mm square hole on 7mm centres
| ThicknessAluminium, K10A | Sheet size (mm) | Weightkg/m² |
|---|---|---|
| 2000 x 1000 | ||
| 1.5mm | 5 to 7 days | 2.7 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout
Enlarged, not to scale. Dimensions in mm.
About C4 U7
C4 U7 is a 4mm square hole perforated sheet in aluminium, with the holes on a 7mm in-line pitch giving 32% open area. It’s made to order, usually in 5 to 7 days, in 1.5mm thickness.
All sizes in the table are made to order, usually in 5 to 7 days.
What does C4 U7 mean?
C4 is a 4mm square hole. U7 means the holes sit on a 7mm in-line pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from C4 U7 is marked. See every aluminium pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| YOU’RE VIEWINGC4 U7 | 4mm square | 7mm in-line | 32% | 1.5mm | 5 to 7 days |
| C5 U8 | 5mm square | 8mm in-line | 39% | 1–2mm | 5 to 7 days |
| C6 U9 | 6mm square | 9mm in-line | 44% | 1.5mm | ✓ In stock |
| C7 U10 | 7mm square | 10mm in-line | 49% | 0.8–2mm | 5 to 7 days |
| C8 U12 | 8mm square | 12mm in-line | 44% | 1.5–2mm | 5 to 7 days |
| C8 U24 | 8mm square | 24mm in-line | 11% | 2mm | 5 to 7 days |
| C10 U15 | 10mm square | 15mm in-line | 44% | 1.5–2mm | ✓ In stock |
Highlighted where it differs from C4 U7
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
