6mm Square Hole Aluminium Perforated Sheet (C6 U9)
Description
C6 U9. 6mm square hole, 9mm in-line pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

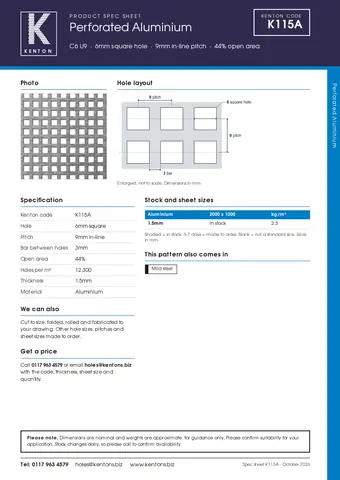

Perforated sheet, aluminium, c6 u9. Kenton code K115A

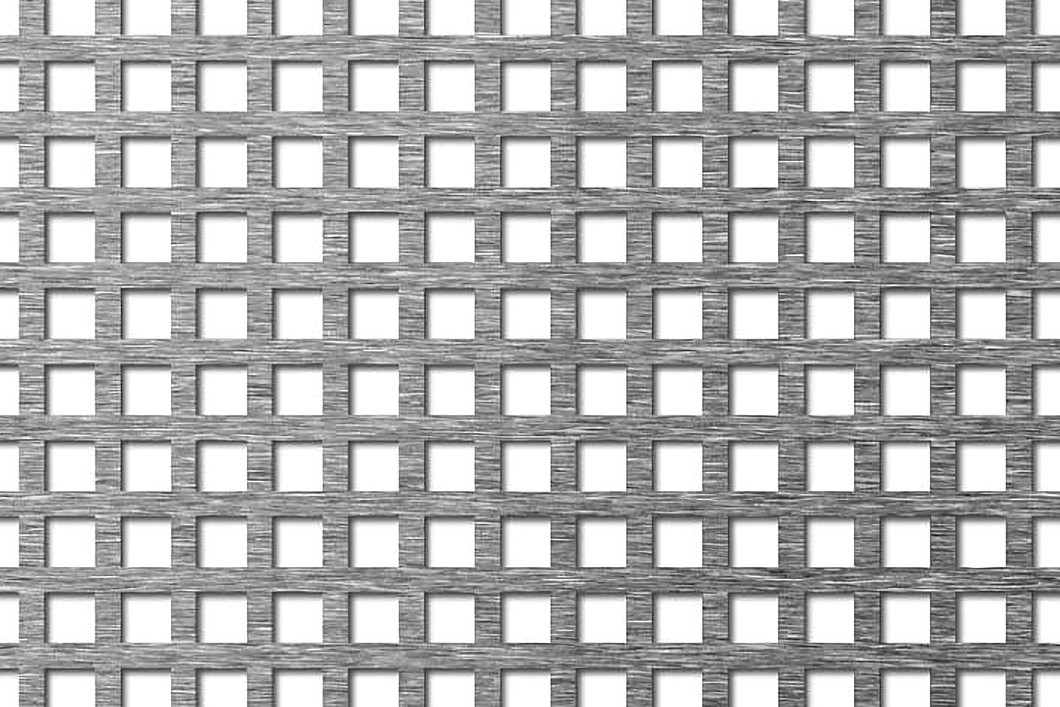

6mm square hole aluminium perforated sheet
C6 U9 is a 6mm square hole perforated sheet in aluminium, with the holes on a 9mm in-line pitch giving 44% open area. We keep it in stock, in 1.5mm thickness.
Also written: C6U9 · 6mm square hole 9mm pitch · 6mm square hole on 9mm centres
| ThicknessAluminium, K115A | Sheet size (mm) | Weightkg/m² |
|---|---|---|
| 2000 x 1000 | ||
| 1.5mm | ✓ In stock | 2.3 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

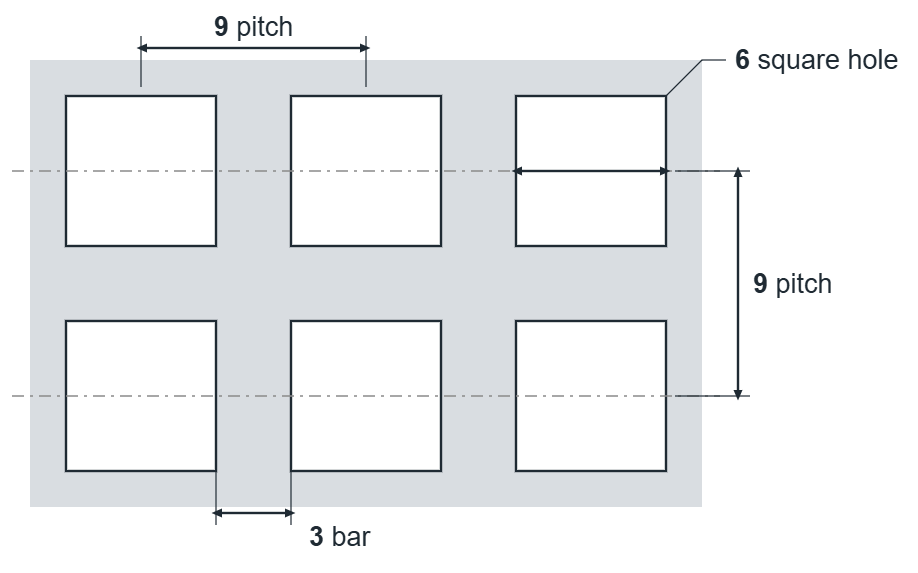

Hole layout
Enlarged, not to scale. Dimensions in mm.
About C6 U9
C6 U9 is a 6mm square hole perforated sheet in aluminium, with the holes on a 9mm in-line pitch giving 44% open area. We keep it in stock, in 1.5mm thickness.
In stock: 1.5mm in 2m x 1m sheets. Everything else in the table is made to order in 5 to 7 days.
What does C6 U9 mean?
C6 is a 6mm square hole. U9 means the holes sit on a 9mm in-line pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from C6 U9 is marked. See every aluminium pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C4 U7 | 4mm square | 7mm in-line | 32% | 1.5mm | 5 to 7 days |
| C5 U8 | 5mm square | 8mm in-line | 39% | 1–2mm | 5 to 7 days |
| YOU’RE VIEWINGC6 U9 | 6mm square | 9mm in-line | 44% | 1.5mm | ✓ In stock |
| C7 U10 | 7mm square | 10mm in-line | 49% | 0.8–2mm | 5 to 7 days |
| C8 U12 | 8mm square | 12mm in-line | 44% | 1.5–2mm | 5 to 7 days |
| C8 U24 | 8mm square | 24mm in-line | 11% | 2mm | 5 to 7 days |
| C10 U15 | 10mm square | 15mm in-line | 44% | 1.5–2mm | ✓ In stock |
Highlighted where it differs from C6 U9
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
