5mm Square Hole Aluminium Perforated Sheet (C5 U8)
Perforated sheetAluminiumKenton code K110A
Stock and sheet sizes
| AluminiumK110A | 2000 x 1000 | kg/m² |
|---|---|---|
| 1.0mm | 5-7 days | 1.7 |
| 1.5mm | 5-7 days | 2.5 |
| 2.0mm | 5-7 days | 3.3 |
✓ In stockon the shelf, ready to send5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

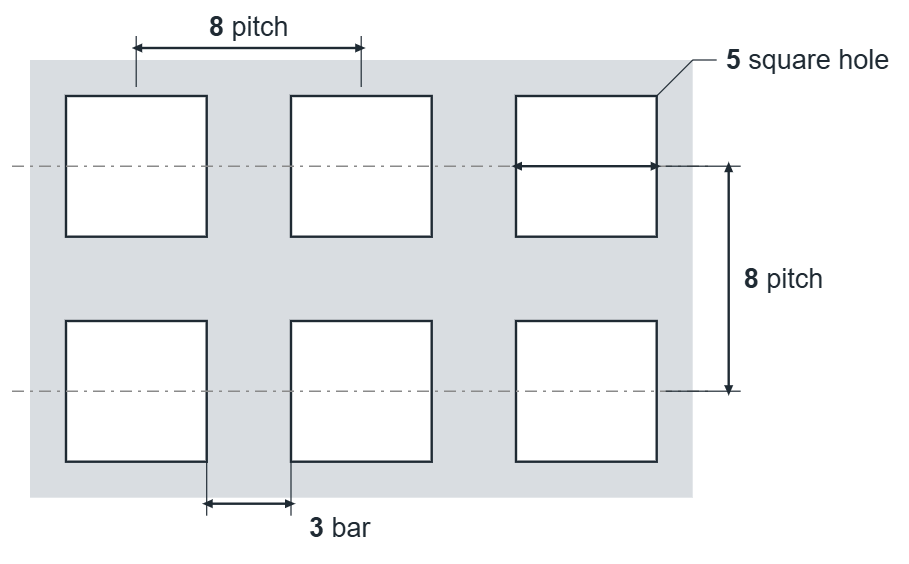

Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 5mm square
- Pitch
- 8mm in-line
- Bar between holes
- 3mm
- Open area
- 39%
- Holes per m²
- 15,600
- Thickness
- 1–2mm
- Material
- Aluminium

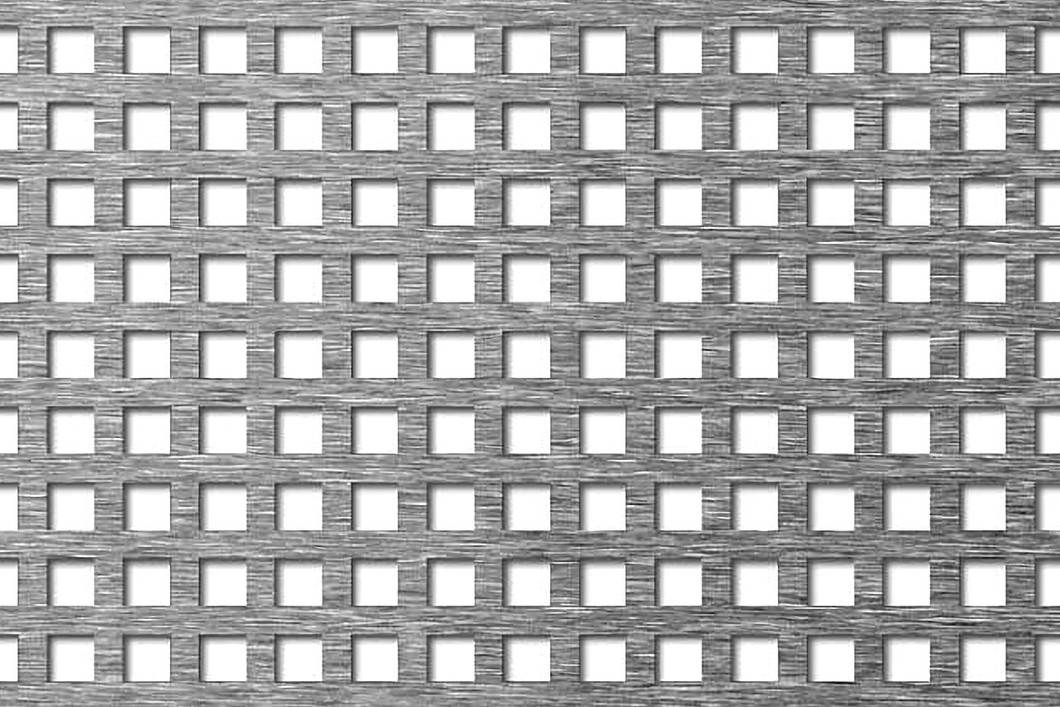

About C5 U8 aluminium perforated sheet
C5 U8 is a 5mm square hole perforated sheet in aluminium, with the holes on an 8mm in-line pitch giving 39% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 2mm.
All sizes in the table are made to order, usually in 5-7 days.
What does C5 U8 mean?
C5 is a 5mm square hole. U8 means the holes sit on an 8mm in-line pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C4 U7 | 4mm square | 7mm in-line | 32% | 1.5mm | 5-7 days |
| C5 U8This page | 5mm square | 8mm in-line | 39% | 1–2mm | 5-7 days |
| C6 U9 | 6mm square | 9mm in-line | 44% | 1.5mm | ✓ In stock |
| C7 U10 | 7mm square | 10mm in-line | 49% | 0.8–2mm | 5-7 days |
| C8 U12 | 8mm square | 12mm in-line | 44% | 1.5–2mm | 5-7 days |
| C8 U24 | 8mm square | 24mm in-line | 11% | 2mm | 5-7 days |
| C10 U15 | 10mm square | 15mm in-line | 44% | 1.5–2mm | ✓ In stock |
The nearest aluminium square hole patterns to C5 U8. See every aluminium pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
