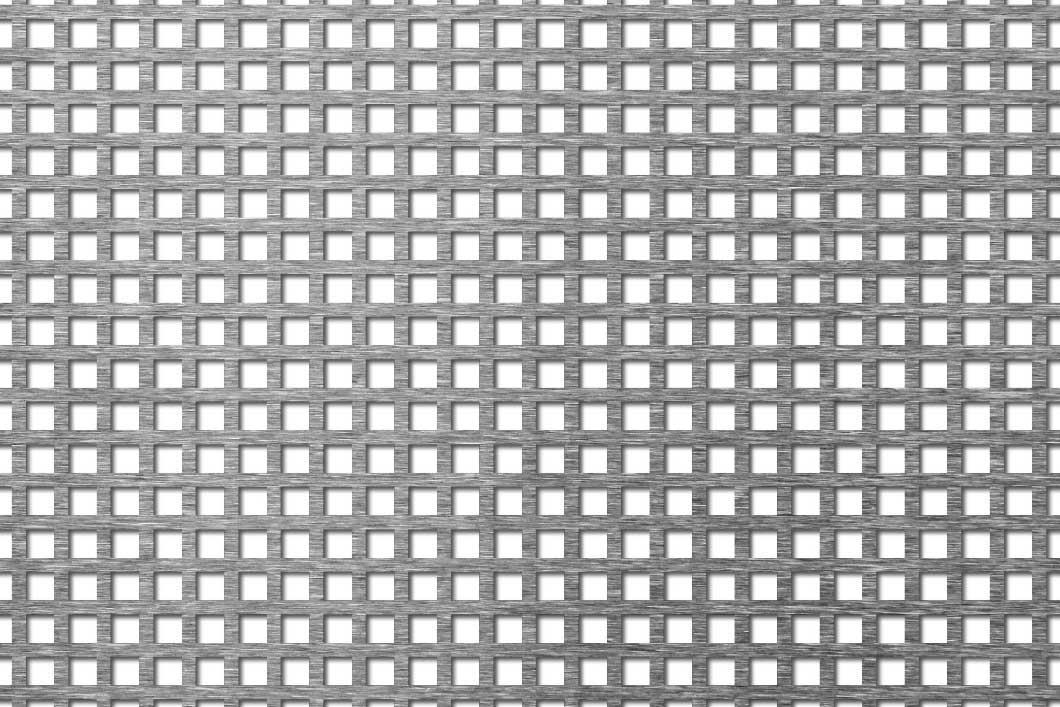

5mm Square Hole 304 Stainless Steel Perforated Sheet (C5 U7.5)
Perforated sheetStainless 304Kenton code K108S
Stock and sheet sizes
| Stainless 304K108S | 2000 x 1000 | kg/m² |
|---|---|---|
| 1.0mm | ✓ In stock | 4.4 |
✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

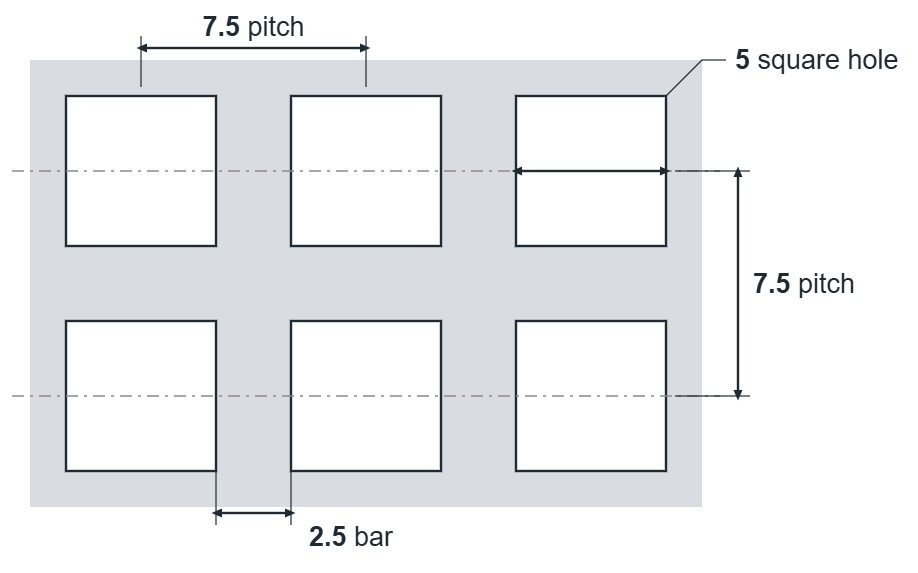

Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 5mm square
- Pitch
- 7.5mm in-line
- Bar between holes
- 2.5mm
- Open area
- 44%
- Holes per m²
- 17,800
- Thickness
- 1mm
- Material
- Stainless 304
About C5 U7.5 304 stainless steel perforated sheet
C5 U7.5 is a 5mm square hole perforated sheet in 304 stainless steel, with the holes on a 7.5mm in-line pitch giving 44% open area. We keep it in stock here in Bristol, in 1mm thickness. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.
In stock: 1mm in 2m x 1m sheets. Everything else in the table is made to order in 5-7 days.
What does C5 U7.5 mean?
C5 is a 5mm square hole. U7.5 means the holes sit on a 7.5mm in-line pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C5 U7 | 5mm square | 7mm in-line | 51% | 1.5mm | ✓ In stock |
| C5 U7.5This page | 5mm square | 7.5mm in-line | 44% | 1mm | ✓ In stock |
| C5 U8 | 5mm square | 8mm in-line | 39% | 1.5mm | ✓ In stock |
| C8 U10 | 8mm square | 10mm in-line | 64% | 1–1.5mm | 5-7 days |
| C8 U12 | 8mm square | 12mm in-line | 44% | 1.5mm | ✓ In stock |
| C8 U24 | 8mm square | 24mm in-line | 11% | 1.5mm | 5-7 days |
| C10 U15 | 10mm square | 15mm in-line | 44% | 1.5–3mm | ✓ In stock |
The nearest 304 stainless steel square hole patterns to C5 U7.5. See every 304 stainless steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
