10mm Hole Mild Steel Perforated Sheet (R10 U26)
Description
R10 U26. 10mm round hole, 26mm square pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

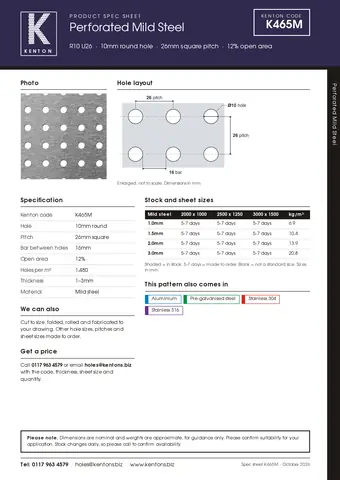

Perforated sheet, mild steel, r10 u26. Kenton code K465M

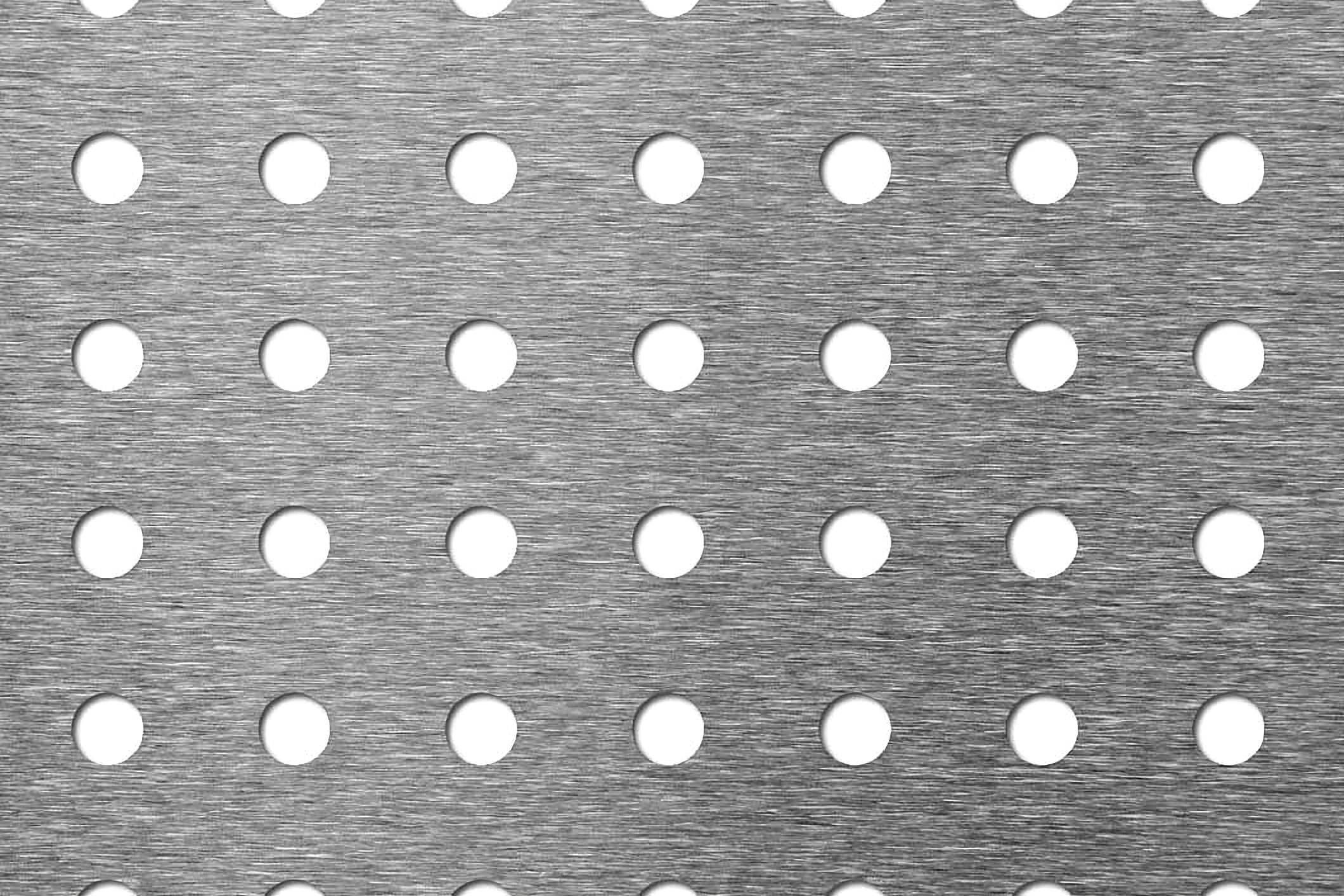

10mm hole mild steel perforated sheet
R10 U26 is a 10mm round hole perforated sheet in mild steel, with the holes on a 26mm square pitch giving 12% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 1 to 3mm.
Also written: R10U26 · 10mm R10 · 10mm hole 26mm pitch · 10mm round hole on 26mm square centres
| ThicknessMild steel, K465M | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 1.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 6.9 |
| 1.5mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 10.4 |
| 2.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 13.9 |
| 3.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 20.8 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

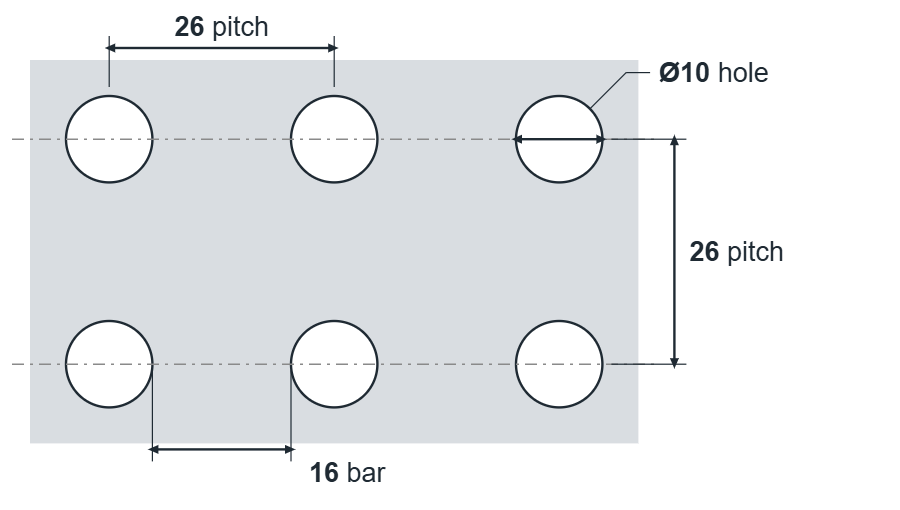

Hole layout
Enlarged, not to scale. Dimensions in mm.
About R10 U26
R10 U26 is a 10mm round hole perforated sheet in mild steel, with the holes on a 26mm square pitch giving 12% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 1 to 3mm.
All sizes in the table are made to order, usually in 5 to 7 days.
What does R10 U26 mean?
R10 is a 10mm round hole. U26 means the holes sit on a 26mm square (in-line) pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from R10 U26 is marked. See every mild steel pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R8 T12 | 8mm round | 12mm staggered | 40% | 1–6mm | ✓ In stock |
| R10 T14 | 10mm round | 14mm staggered | 46% | 1–2mm | 5 to 7 days |
| R10 U15 | 10mm round | 15mm square | 35% | 1–3mm | 5 to 7 days |
| R10 T15 | 10mm round | 15mm staggered | 40% | 1–5mm | ✓ In stock |
| R10 U21 | 10mm round | 21mm square | 18% | 1–3mm | 5 to 7 days |
| YOU’RE VIEWINGR10 U26 | 10mm round | 26mm square | 12% | 1–3mm | 5 to 7 days |
| R12 T16 | 12mm round | 16mm staggered | 51% | 1–6mm | ✓ In stock |
Highlighted where it differs from R10 U26
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
