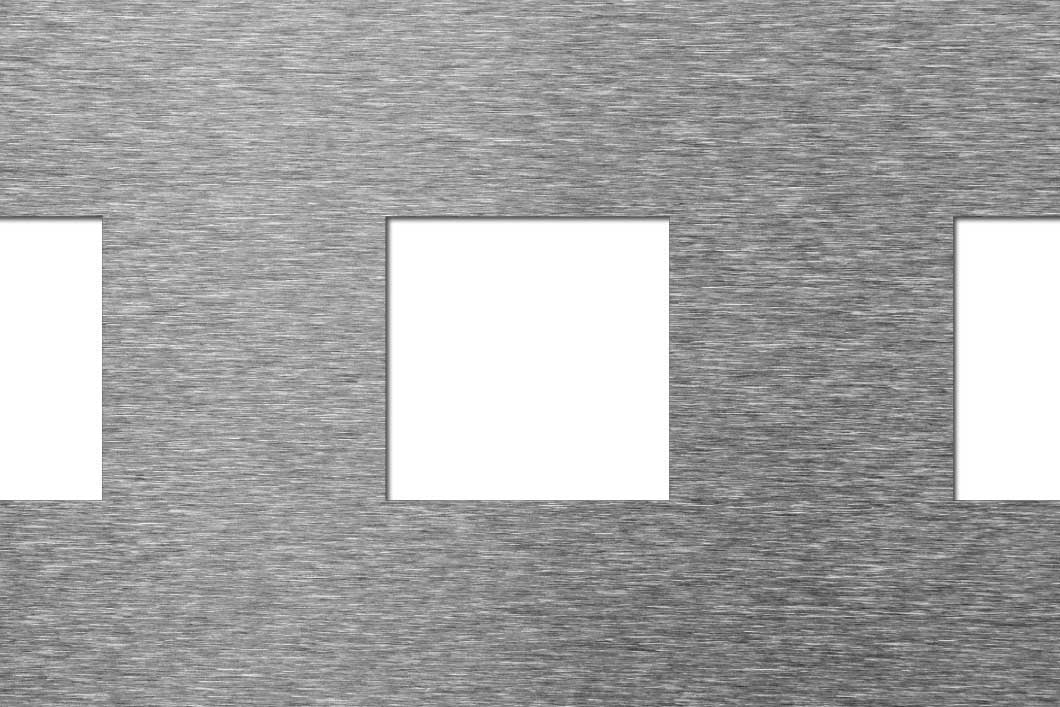

C50 U100 perforated sheet: 50mm square holes on 100mm in-line pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

50mm Square Hole 304 Stainless Steel Perforated Sheet (C50 U100)

Perforated sheetStainless 304Kenton code K166S

50mmSquare hole
100mmIn-line pitch
25%Open area
1–2mmThickness

Stock and sheet sizes

Stainless 304K166S 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 6.0
1.5mm 5-7 days 5-7 days 5-7 days 9.0
2.0mm 5-7 days 5-7 days 5-7 days 12.0

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

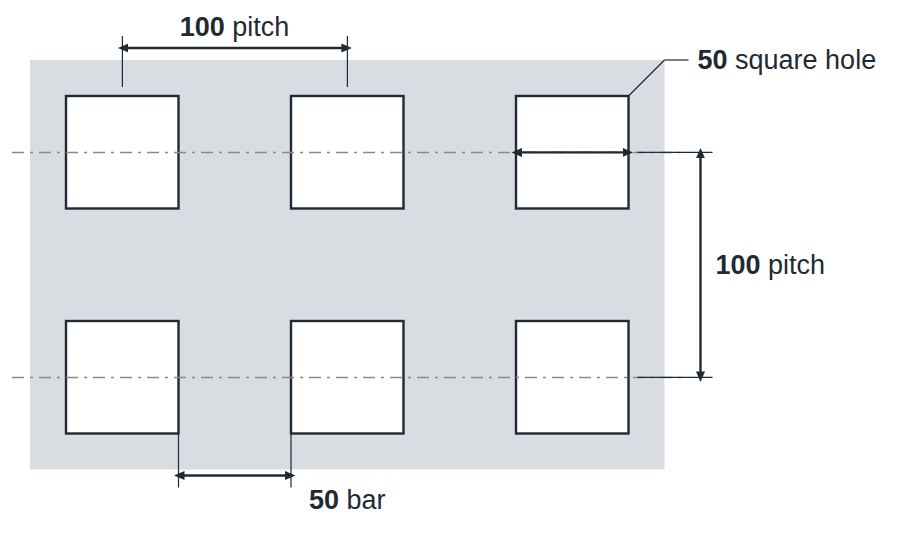

C50 U100 hole layout: 50mm square holes, 100mm in-line pitch, 50mm bar

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
50mm square
Pitch
100mm in-line
Bar between holes
50mm
Open area
25%
Holes per m²
100
Thickness
1–2mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About C50 U100 304 stainless steel perforated sheet

C50 U100 is a 50mm square hole perforated sheet in 304 stainless steel, with the holes on a 100mm in-line pitch giving 25% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 2mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does C50 U100 mean?

C50 is a 50mm square hole. U100 means the holes sit on a 100mm in-line pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steelStainless 316

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
C20 U40 20mm square 40mm in-line 25% 1.5–2mm 5-7 days
C20 U50 20mm square 50mm in-line 16% 1–3mm ✓ In stock
C25 U35 25mm square 35mm in-line 51% 1–3mm 5-7 days
C25 U70 25mm square 70mm in-line 13% 1–3mm 5-7 days
C30 U70 30mm square 70mm in-line 18% 1–2mm 5-7 days
C40 U60 40mm square 60mm in-line 44% 1–2mm 5-7 days
C50 U100This page 50mm square 100mm in-line 25% 1–2mm 5-7 days

The nearest 304 stainless steel square hole patterns to C50 U100. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
