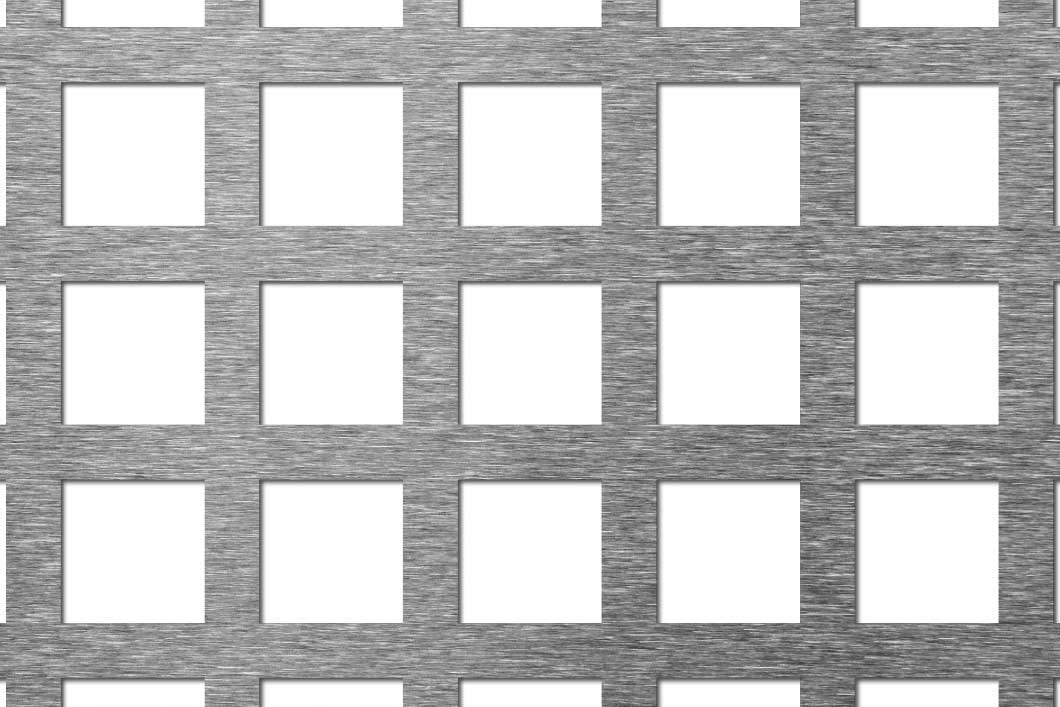

C25 U35 perforated sheet: 25mm square holes on 35mm in-line pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

25mm Square Hole 304 Stainless Steel Perforated Sheet (C25 U35)

Perforated sheetStainless 304Kenton code K162S

25mmSquare hole
35mmIn-line pitch
51%Open area
1–3mmThickness

Stock and sheet sizes

Stainless 304K162S 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 3.9
1.5mm 5-7 days 5-7 days 5-7 days 5.9
2.0mm 5-7 days 5-7 days 5-7 days 7.8
3.0mm 5-7 days 11.8

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

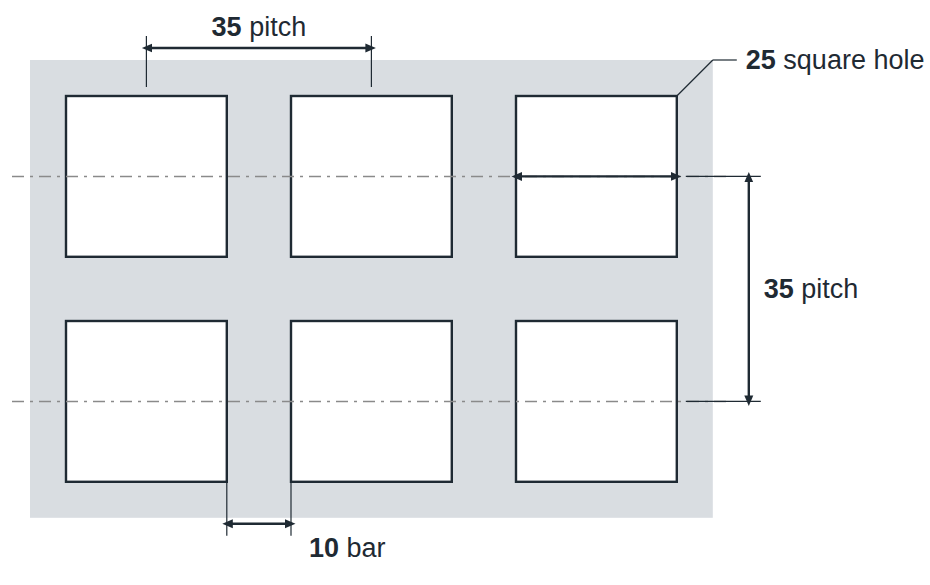

C25 U35 hole layout: 25mm square holes, 35mm in-line pitch, 10mm bar

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
25mm square
Pitch
35mm in-line
Bar between holes
10mm
Open area
51%
Holes per m²
816
Thickness
1–3mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About C25 U35 304 stainless steel perforated sheet

C25 U35 is a 25mm square hole perforated sheet in 304 stainless steel, with the holes on a 35mm in-line pitch giving 51% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 3mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does C25 U35 mean?

C25 is a 25mm square hole. U35 means the holes sit on a 35mm in-line pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steelStainless 316

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
C15 U40 15mm square 40mm in-line 14% 1–3mm 5-7 days
C20 U40 20mm square 40mm in-line 25% 1.5–2mm 5-7 days
C20 U50 20mm square 50mm in-line 16% 1–3mm ✓ In stock
C25 U35This page 25mm square 35mm in-line 51% 1–3mm 5-7 days
C25 U70 25mm square 70mm in-line 13% 1–3mm 5-7 days
C30 U70 30mm square 70mm in-line 18% 1–2mm 5-7 days
C40 U60 40mm square 60mm in-line 44% 1–2mm 5-7 days

The nearest 304 stainless steel square hole patterns to C25 U35. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
