8mm Square Hole Pre-Galvanised Steel Perforated Sheet (C8 U10)
Description
C8 U10. 8mm square hole, 10mm in-line pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

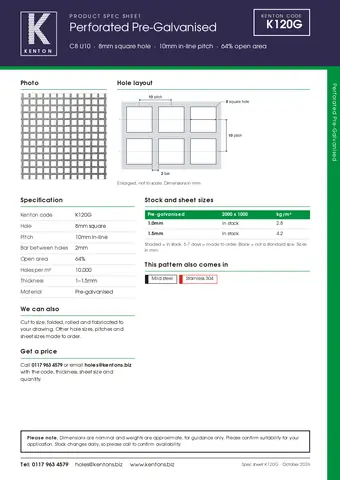

Perforated sheet, pre-galvanised, c8 u10. Kenton code K120G
8mm square hole pre-galvanised steel perforated sheet
C8 U10 is an 8mm square hole perforated sheet in pre-galvanised steel, with the holes on a 10mm in-line pitch giving 64% open area. We keep it in stock, in thicknesses from 1 to 1.5mm.
Also written: C8U10 · 8mm square hole 10mm pitch · 8mm square hole on 10mm centres
| ThicknessPre-galvanised, K120G | Sheet size (mm) | Weightkg/m² |
|---|---|---|
| 2000 x 1000 | ||
| 1.0mm | ✓ In stock | 2.8 |
| 1.5mm | ✓ In stock | 4.2 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout
Enlarged, not to scale. Dimensions in mm.
About C8 U10
C8 U10 is an 8mm square hole perforated sheet in pre-galvanised steel, with the holes on a 10mm in-line pitch giving 64% open area. We keep it in stock, in thicknesses from 1 to 1.5mm.
In stock: 1mm and 1.5mm in 2m x 1m sheets. Everything else in the table is made to order in 5 to 7 days.
What does C8 U10 mean?
C8 is an 8mm square hole. U10 means the holes sit on a 10mm in-line pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from C8 U10 is marked. See every pre-galvanised steel pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C5 U8 | 5mm square | 8mm in-line | 39% | 1–1.5mm | 5 to 7 days |
| YOU’RE VIEWINGC8 U10 | 8mm square | 10mm in-line | 64% | 1–1.5mm | ✓ In stock |
| C8 U12 | 8mm square | 12mm in-line | 44% | 1–2mm | 5 to 7 days |
| C10 U12 | 10mm square | 12mm in-line | 69% | 1–1.5mm | 5 to 7 days |
| C10 U15 | 10mm square | 15mm in-line | 44% | 1–2mm | ✓ In stock |
Highlighted where it differs from C8 U10
