5mm square hole pre-galvanised steel perforated sheet

C5 U8 hole layout: 5mm square holes, 8mm in-line pitch, 3mm bar

C5 U8. 5mm square hole, 8mm in-line pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

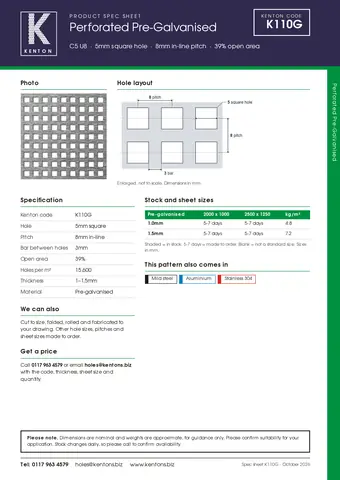

C5 U8 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K110G for easy re-ordering.Download spec sheet PDF

Perforated sheet, pre-galvanised, c5 u8. Kenton code K110G

5mm square hole pre-galvanised steel perforated sheet

C5 U8 is a 5mm square hole perforated sheet in pre-galvanised steel, with the holes on an 8mm in-line pitch giving 39% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 1 to 1.5mm.

Made to order, usually 5 to 7 days

Product specificationThe measurements of C5 U8

Hole5mm square

Pitch8mm in-line

Bar between holes3mm

Open area39%

Holes per m²15,600

Thickness1–1.5mm

MaterialPre-galvanised

Also written: C5U8 · 5mm square hole 8mm pitch · 5mm square hole on 8mm centres

Thicknesses and sheet sizesSelect a size to ask for a price

ThicknessPre-galvanised, K110G	Sheet size (mm)		Weightkg/m²
ThicknessPre-galvanised, K110G	2000 x 1000	2500 x 1250	Weightkg/m²
1.0mm	5 to 7 days	5 to 7 days	4.8
1.5mm	5 to 7 days	5 to 7 days	7.2

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Hole layout

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About C5 U8

All sizes in the table are made to order, usually in 5 to 7 days.

What does C5 U8 mean?

C5 is a 5mm square hole. U8 means the holes sit on an 8mm in-line pitch, measured centre to centre.

This pattern also comes in

Mild steel Aluminium Stainless 304

Not quite right? Compare similar patterns

Anything different from C5 U8 is marked. See every pre-galvanised steel pattern, or work out a different pattern

Pattern	Hole	Pitch	Open area	Thickness	Stock
YOU’RE VIEWINGC5 U8	5mm square	8mm in-line	39%	1–1.5mm	5 to 7 days
C8 U10	8mm square	10mm in-line	64%	1–1.5mm	✓ In stock
C8 U12	8mm square	12mm in-line	44%	1–2mm	5 to 7 days
C10 U12	10mm square	12mm in-line	69%	1–1.5mm	5 to 7 days
C10 U15	10mm square	15mm in-line	44%	1–2mm	✓ In stock

Highlighted where it differs from C5 U8

Get a price

Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
