10mm Square Hole Pre-Galvanised Steel Perforated Sheet (C10 U12)
Description
C10 U12. 10mm square hole, 12mm in-line pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

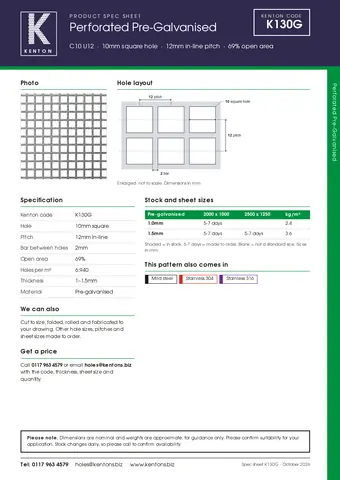

Perforated sheet, pre-galvanised, c10 u12. Kenton code K130G

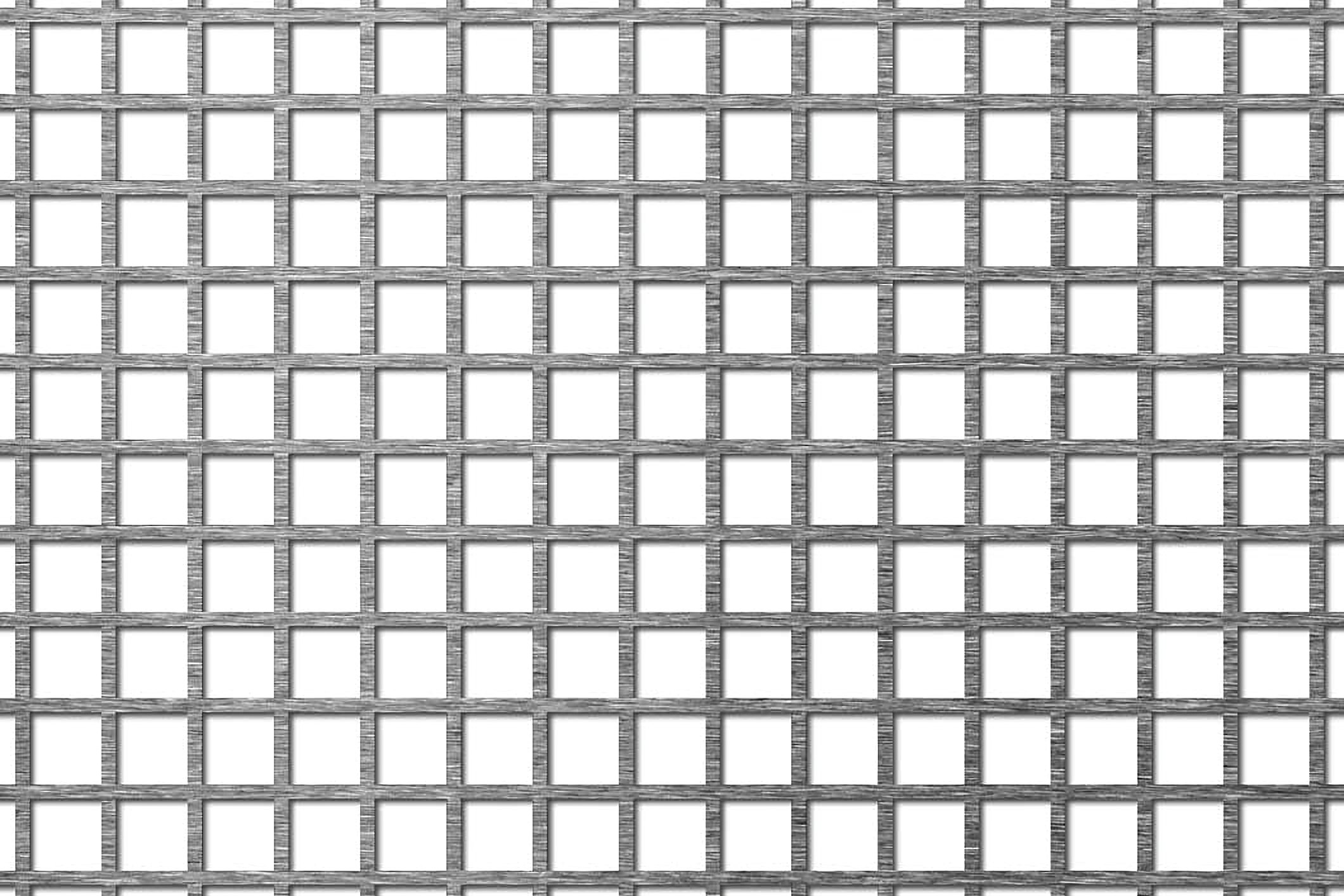

10mm square hole pre-galvanised steel perforated sheet
C10 U12 is a 10mm square hole perforated sheet in pre-galvanised steel, with the holes on a 12mm in-line pitch giving 69% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 1 to 1.5mm.
Also written: C10U12 · 10mm square hole 12mm pitch · 10mm square hole on 12mm centres
| ThicknessPre-galvanised, K130G | Sheet size (mm) | Weightkg/m² | |
|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | ||
| 1.0mm | 5 to 7 days | 2.4 | |
| 1.5mm | 5 to 7 days | 5 to 7 days | 3.6 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout
Enlarged, not to scale. Dimensions in mm.
About C10 U12
C10 U12 is a 10mm square hole perforated sheet in pre-galvanised steel, with the holes on a 12mm in-line pitch giving 69% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 1 to 1.5mm.
All sizes in the table are made to order, usually in 5 to 7 days.
What does C10 U12 mean?
C10 is a 10mm square hole. U12 means the holes sit on a 12mm in-line pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from C10 U12 is marked. See every pre-galvanised steel pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C5 U8 | 5mm square | 8mm in-line | 39% | 1–1.5mm | 5 to 7 days |
| C8 U10 | 8mm square | 10mm in-line | 64% | 1–1.5mm | ✓ In stock |
| C8 U12 | 8mm square | 12mm in-line | 44% | 1–2mm | 5 to 7 days |
| YOU’RE VIEWINGC10 U12 | 10mm square | 12mm in-line | 69% | 1–1.5mm | 5 to 7 days |
| C10 U15 | 10mm square | 15mm in-line | 44% | 1–2mm | ✓ In stock |
Highlighted where it differs from C10 U12
