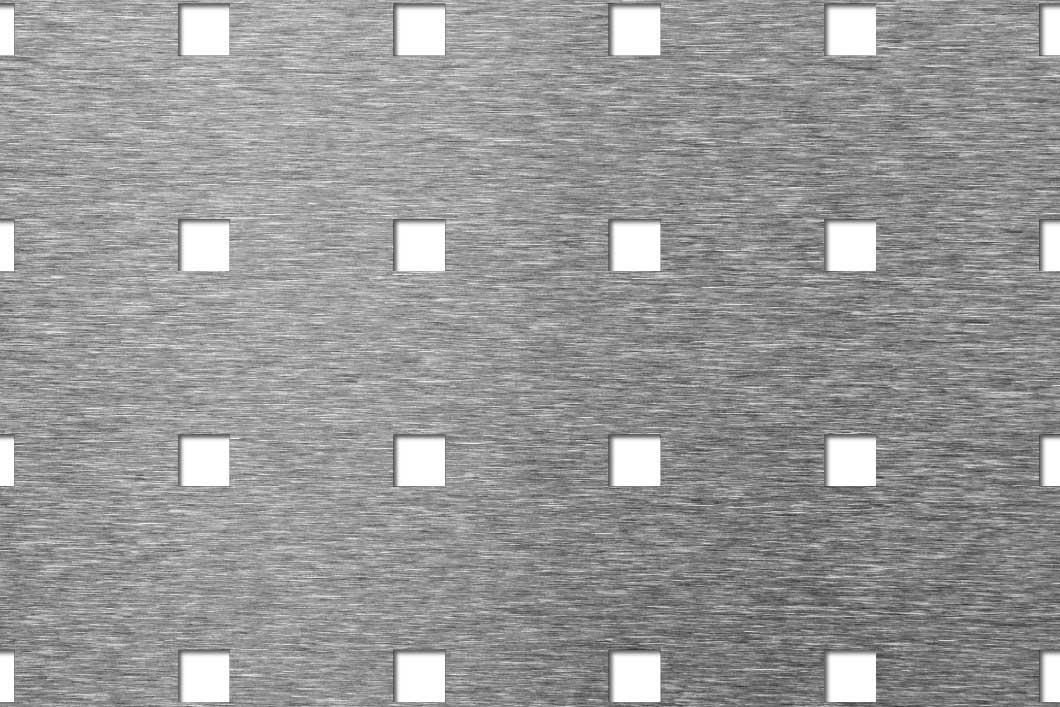

C9.2 U37.98 perforated sheet: 9.2mm square holes on 37.98mm in-line pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

9.2mm Square Hole 304 Stainless Steel Perforated Sheet (C9.2 U37.98)

Perforated sheetStainless 304Kenton code K129S

9.2mmSquare hole
37.98mmIn-line pitch
6%Open area
1.5–2mmThickness

Stock and sheet sizes

Stainless 304K129S 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.5mm 5-7 days 5-7 days 5-7 days 11.3
2.0mm 5-7 days 5-7 days 5-7 days 15.1

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

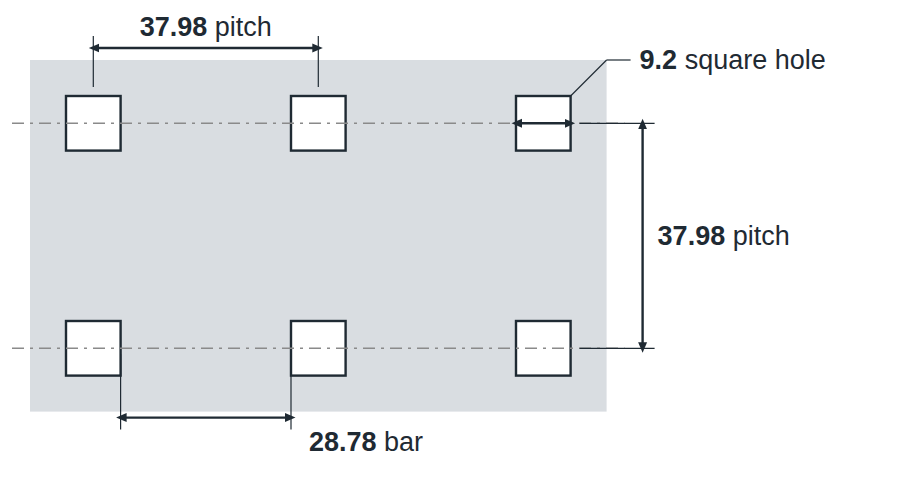

C9.2 U37.98 hole layout: 9.2mm square holes, 37.98mm in-line pitch, 28.78mm bar

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
9.2mm square
Pitch
37.98mm in-line
Bar between holes
28.78mm
Open area
6%
Holes per m²
693
Thickness
1.5–2mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About C9.2 U37.98 304 stainless steel perforated sheet

C9.2 U37.98 is a 9.2mm square hole perforated sheet in 304 stainless steel, with the holes on a 37.98mm in-line pitch giving 6% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1.5 to 2mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does C9.2 U37.98 mean?

C9.2 is a 9.2mm square hole. U37.98 means the holes sit on a 37.98mm in-line pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steelStainless 316

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
C8 U12 8mm square 12mm in-line 44% 1.5mm ✓ In stock
C8 U24 8mm square 24mm in-line 11% 1.5mm ✓ In stock
C9.2 U34 9.2mm square 34mm in-line 7% 1–1.5mm 5-7 days
C9.2 U37.98This page 9.2mm square 37.98mm in-line 6% 1.5–2mm 5-7 days
C10 U14 10mm square 14mm in-line 69% 1–2mm ✓ In stock
C10 U15 10mm square 15mm in-line 44% 1.5–3mm ✓ In stock
C10 U30 10mm square 30mm in-line 11% 1.5mm ✓ In stock

The nearest 304 stainless steel square hole patterns to C9.2 U37.98. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
