Stock orders ship on a next working day delivery !

40 x 17mm Expanded Metal, 2.5mm Strand

Need help in choosing the right product?

Ask our experts

CONTACT US

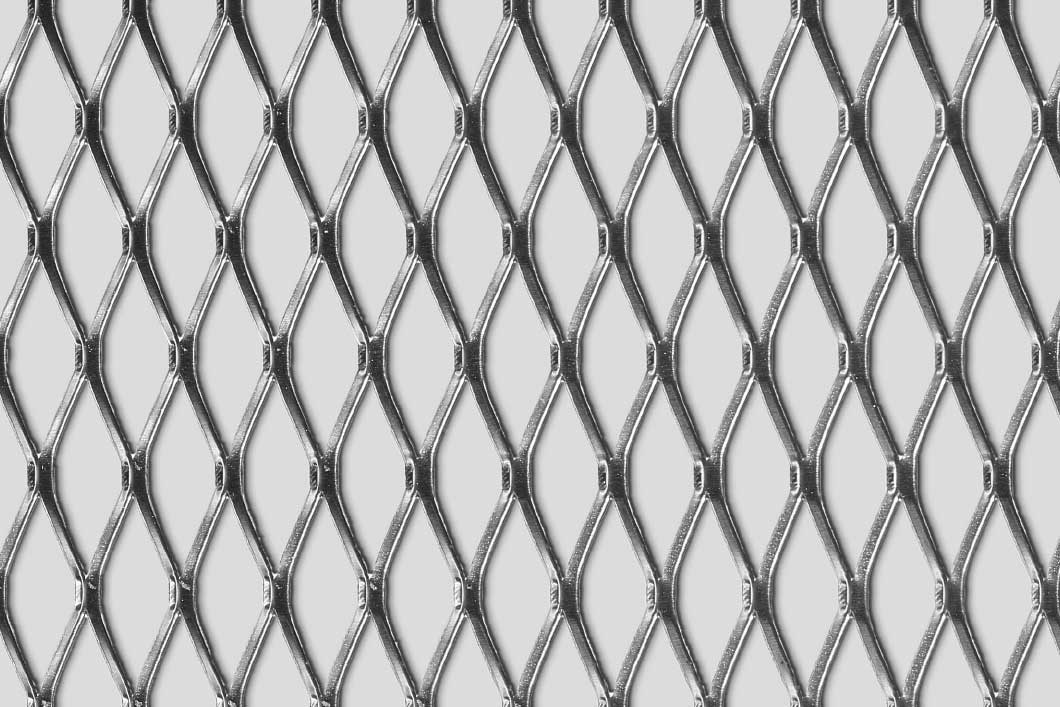

40 x 17mm Pre-Galvanised Steel Expanded Metal, 2.5mm Strand

Expanded metal · made to orderPre-galvanised40 x 17mm

40 x 17mmDiamond (LWD x SWD)
2.5mmStrand
71%Open area
1–2mmThickness

Thicknesses

Pre-galvanisedMade to order Thicknesses (mm)
5-7 days 1, 1.5, 2

5-7 daysmade to orderSheets 2000 x 1000, 2500 x 1250 and 3000 x 1500mm. Not every thickness is made in every size, so please call.

  • Cut to sizewhile you wait
  • 5-7 daysmade to order
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sheet size and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Diamond pattern

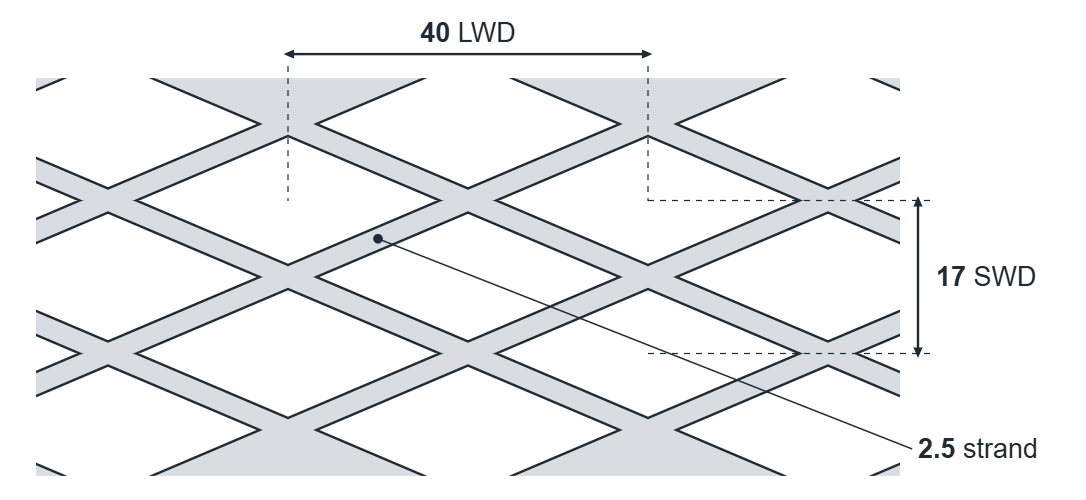

Expanded metal diamond: 40mm LWD, 17mm SWD, 2.5mm strand

Enlarged, not to scale. Dimensions in mm. LWD and SWD are measured centre to centre of the strands.

Specification

Long way of diamond (LWD)
40mm
Short way of diamond (SWD)
17mm
Strand width
2.5mm
Open area
71%
Thickness
1–2mm
Material
Pre-galvanised
Sheet sizes
2000 x 1000, 2500 x 1250, 3000 x 1500mm
Lead time
Made to order, usually 5-7 days
Need it cut, folded or made to a drawing?Once it’s here we cut sheets to size while you wait, and fold and fabricate panels, guards and walkways to your drawing.

Call 0117 963 4579Email your drawing

About this expanded pre-galvanised steel

Expanded pre-galvanised steel with a 40 x 17mm diamond and 2.5mm strands, giving 71% open area. It’s made to order, usually in 5-7 days, in 1, 1.5 and 2mm thick. Once it arrives we can cut it to size here in Bristol while you wait.

What do LWD and SWD mean?

LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.

This mesh also comes in

Mild steelAluminiumStainless 304

Similar meshes

Mesh Diamond Strand Thickness Stock
30 x 17 30 x 17mm 2.5mm 1.5–2mm 5-7 days
40 x 17 40 x 17mm 2mm 1–2mm 5-7 days
40 x 17This page 40 x 17mm 2.5mm 1–2mm 5-7 days
43 x 10 43 x 10mm 2.5mm 1–2mm 5-7 days
43 x 13 43 x 13mm 2.5mm 1–2mm 5-7 days
43 x 15 43 x 15mm 4mm 1–2mm 5-7 days
45 x 20 45 x 20mm 4mm 1–2mm 5-7 days

The nearest expanded pre-galvanised steel sizes, including sheets we keep in stock. See every expanded pre-galvanised steel sheet →

Dimensions are nominal. Lead times can vary, so please call to confirm.
