14 x 4.8mm Flattened Expanded Metal, Aluminium (1610AF)
Description

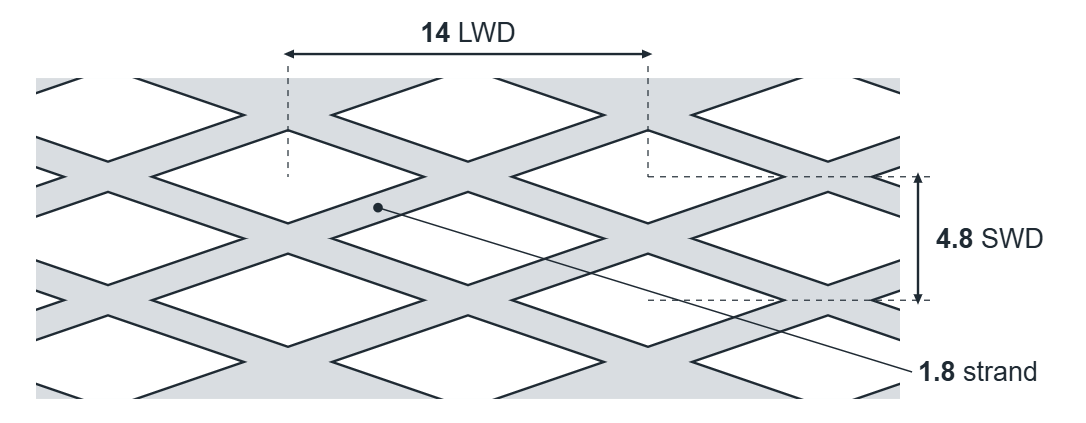

1610AF. 14 x 4.8mm diamond (LWD x SWD), 1.8mm strand.
Diamond pattern. Enlarged, not to scale. Dimensions in mm.
Expanded metal, flattened, aluminium. Kenton code 1610AF

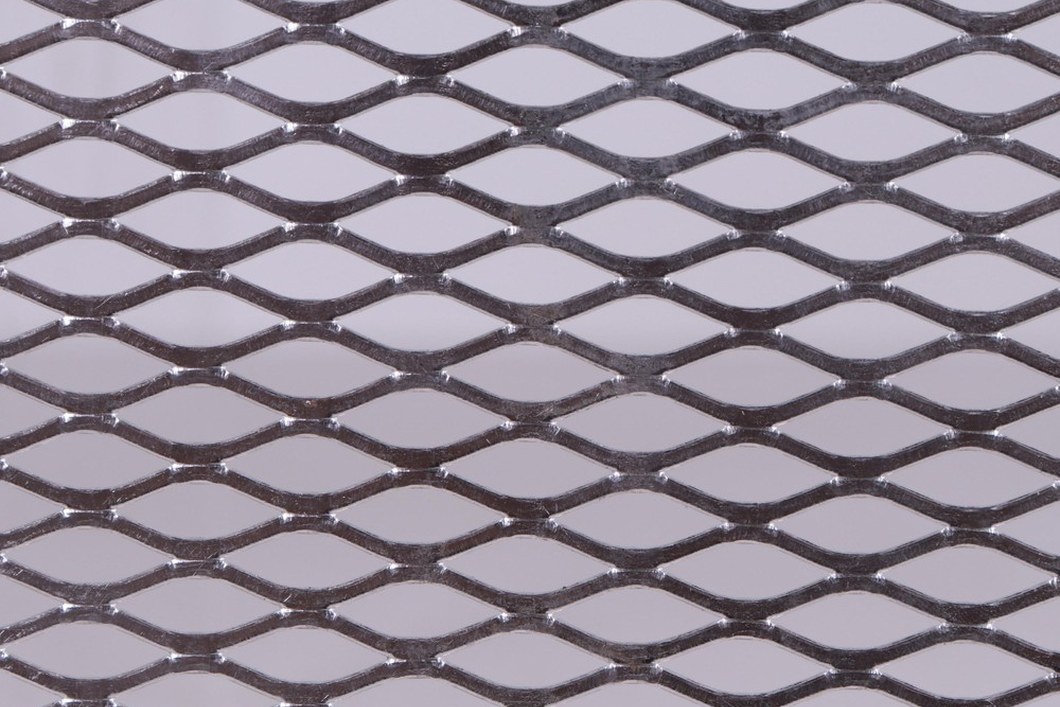

14 x 4.8mm flattened expanded metal, aluminium
1610AF is flattened expanded aluminium with a 14 x 4.8mm diamond and 1.8mm strands, giving 57% open area. We keep it in stock, 0.89mm thick, in 2500 x 1250mm sheets.
| ThicknessAluminium, 1610AF | Sheet size (mm) |
|---|---|
| 2500 x 1250 | |
| 0.89mm | ✓ In stock |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Diamond pattern
Enlarged, not to scale. Dimensions in mm.
About 1610AF
1610AF is flattened expanded aluminium with a 14 x 4.8mm diamond and 1.8mm strands, giving 57% open area. We keep it in stock, 0.89mm thick, in 2500 x 1250mm sheets.
Flattened or raised?
Raised expanded metal is left as it comes off the expanding press, so the strands sit at an angle to the sheet. Flattened expanded metal is rolled after expanding, so the strands lie flat and the sheet has a smooth surface. 1610AF is flattened.
What do LWD and SWD mean?
LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.
Not quite right? Compare similar sizes
Anything different from 1610AF is marked. See every expanded aluminium sheet
| Code | Diamond | Strand | Thickness | Material | Finish | Stock |
|---|---|---|---|---|---|---|
| 0606M | 5.8 x 3.5mm | 0.79mm | 0.6mm | Mild steel | Raised | ✓ In stock |
| 1010MF | 6.8 x 3.6mm | 1.3mm | 0.94mm | Mild steel | Flattened | ✓ In stock |
| 1010AF | 6.9 x 3.6mm | 1.27mm | 0.89mm | Aluminium | Flattened | ✓ In stock |
| 8055G | 8 x 6mm | 1.25mm | 0.7mm | Pre-galvanised | Flattened | ✓ In stock |
| YOU’RE VIEWING1610AF | 14 x 4.8mm | 1.8mm | 0.89mm | Aluminium | Flattened | ✓ In stock |
| 2210MF | 14.2 x 4.8mm | 1.85mm | 0.96mm | Mild steel | Flattened | ✓ In stock |
| 3013MF | 24.4 x 7.6mm | 2.08mm | 1.14mm | Mild steel | Flattened | ✓ In stock |
Highlighted where it differs from 1610AF
