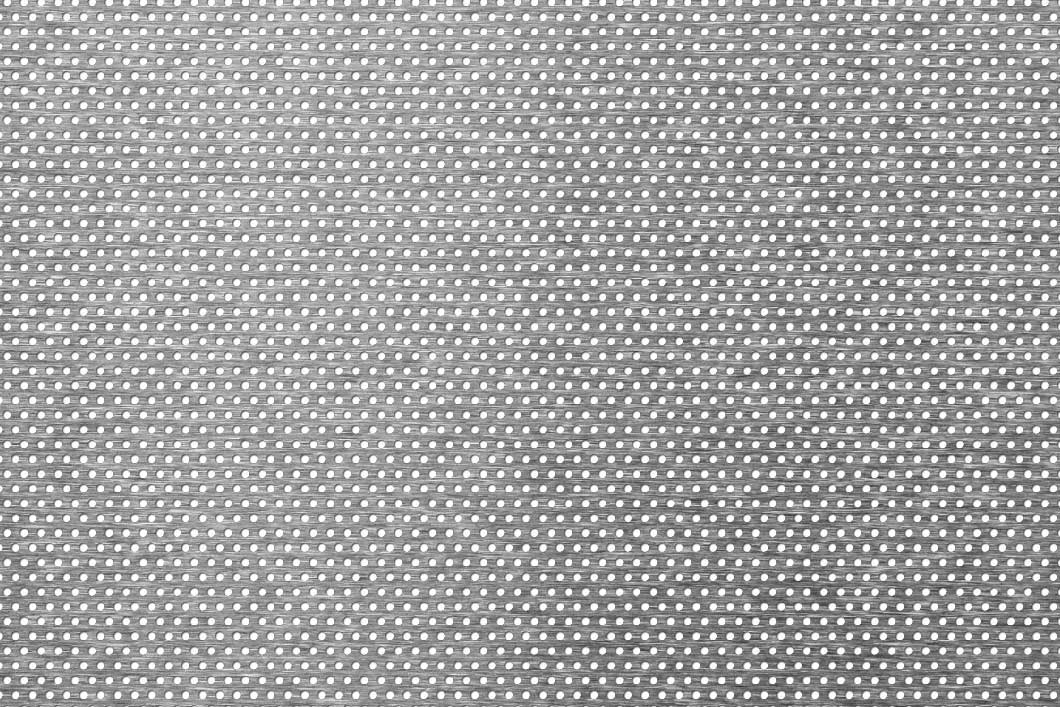

R1.5 T3 perforated sheet: 1.5mm round holes on 3mm staggered pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

1.5mm Hole 304 Stainless Steel Perforated Sheet (R1.5 T3)

Perforated sheetStainless 304Kenton code K008S

1.5mmRound hole
3mmStaggered pitch
23%Open area
1.5mmThickness

Stock and sheet sizes

Stainless 304K008S 2000 x 1000 kg/m²
1.5mm 5-7 days 9.3

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

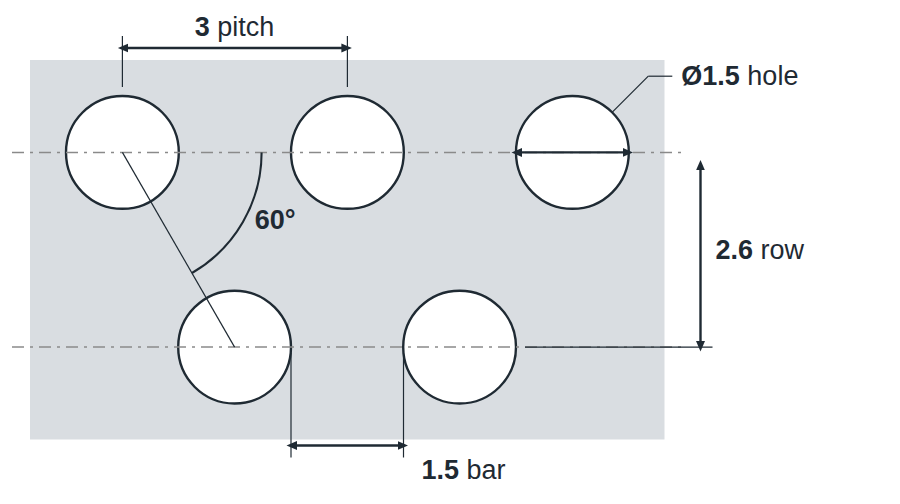

R1.5 T3 hole layout: 1.5mm round holes, 3mm staggered pitch, 1.5mm bar, 2.6mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
1.5mm round
Pitch
3mm staggered 60°
Row spacing
2.6mm
Bar between holes
1.5mm
Open area
23%
Holes per m²
128,000
Thickness
1.5mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R1.5 T3 304 stainless steel perforated sheet

R1.5 T3 is a 1.5mm round hole perforated sheet in 304 stainless steel, with the holes on a 3mm staggered pitch giving 23% open area. It’s made to order, usually in 5-7 days, in 1.5mm thickness. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R1.5 T3 mean?

R1.5 is a 1.5mm round hole. T3 means the holes sit on a 3mm staggered (60°) pitch, measured centre to centre.

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R1.1 T2 1.1mm round 2mm staggered 27% 0.8mm ✓ In stock
R1.25 T2.4 1.25mm round 2.4mm staggered 25% 1mm 5-7 days
R1.5 T2.5 1.5mm round 2.5mm staggered 33% 1mm ✓ In stock
R1.5 T3This page 1.5mm round 3mm staggered 23% 1.5mm 5-7 days
R2 T3 2mm round 3mm staggered 40% 1mm ✓ In stock
R2 T3.5 2mm round 3.5mm staggered 30% 1–1.5mm ✓ In stock
R2 T4 2mm round 4mm staggered 23% 2mm ✓ In stock

The nearest 304 stainless steel round hole patterns to R1.5 T3. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
