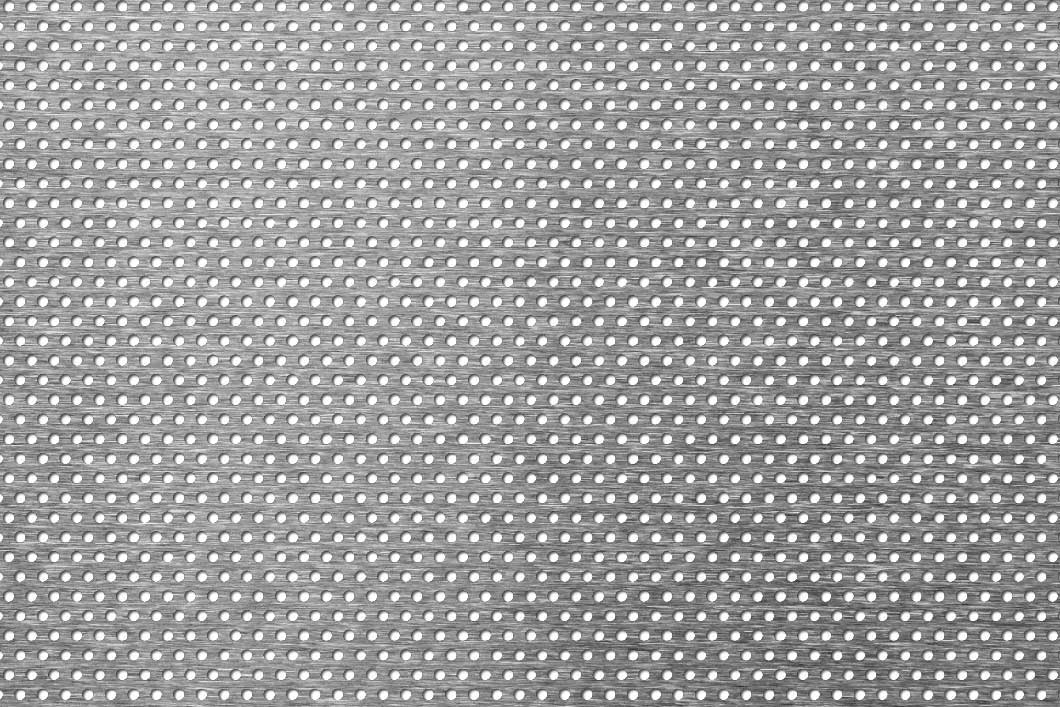

2mm Hole 304 Stainless Steel Perforated Sheet (R2 T4)

Need help in choosing the right product?

Ask our experts

CONTACT US

2mm Hole 304 Stainless Steel Perforated Sheet (R2 T4)

Perforated sheetStainless 304Kenton code K017S

2mmRound hole
4mmStaggered pitch
23%Open area
2mmThickness

Stock and sheet sizes

Stainless 304K017S 2000 x 1000 kg/m²
2.0mm ✓ In stock 12.4

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

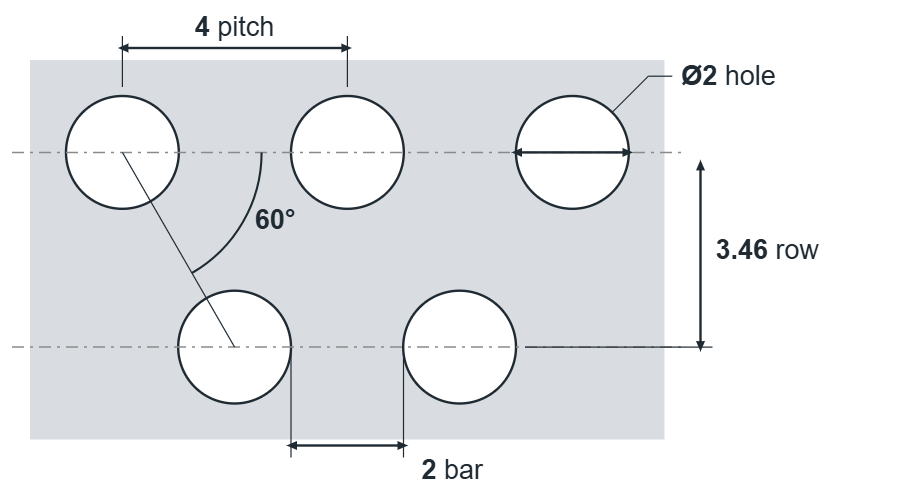

R2 T4 hole layout: 2mm round holes, 4mm staggered pitch, 2mm bar, 3.46mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
2mm round
Pitch
4mm staggered 60°
Row spacing
3.46mm
Bar between holes
2mm
Open area
23%
Holes per m²
72,200
Thickness
2mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R2 T4 304 stainless steel perforated sheet

R2 T4 is a 2mm round hole perforated sheet in 304 stainless steel, with the holes on a 4mm staggered pitch giving 23% open area. We keep it in stock here in Bristol, in 2mm thickness. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

In stock: 2mm in 2m x 1m sheets. Everything else in the table is made to order in 5-7 days.

What does R2 T4 mean?

R2 is a 2mm round hole. T4 means the holes sit on a 4mm staggered (60°) pitch, measured centre to centre.

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R1.5 T2.5 1.5mm round 2.5mm staggered 33% 1mm ✓ In stock
R2 T3 2mm round 3mm staggered 40% 1mm ✓ In stock
R2 T3.5 2mm round 3.5mm staggered 30% 1–1.5mm ✓ In stock
R2 T4This page 2mm round 4mm staggered 23% 2mm ✓ In stock
R3 T4 3mm round 4mm staggered 51% 1mm ✓ In stock
R3 T5 3mm round 5mm staggered 33% 0.7–3mm ✓ In stock
R3 T6 3mm round 6mm staggered 23% 1–2mm ✓ In stock

The nearest 304 stainless steel round hole patterns to R2 T4. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
