1mm Hole 304 Stainless Steel Perforated Sheet (R1 T2)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
1mm hole 304 stainless steel perforated sheetR1 T2 hole layout: 1mm round holes, 2mm staggered pitch, 1mm bar, 1.73mm row spacing

R1 T2. 1mm round hole, 2mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for K088S
R1 T2 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K088S for easy re-ordering.Download spec sheet PDF

Perforated sheet, stainless 304, r1 t2. Kenton code K088S

1mm hole 304 stainless steel perforated sheet

R1 T2 is a 1mm round hole perforated sheet in 304 stainless steel, with the holes on a 2mm staggered pitch giving 23% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 0.8 to 1mm.

Made to order, approximately 5 to 7 days
Product specificationThe measurements of R1 T2
Hole1mm round
Pitch2mm staggered 60°
Row spacing1.73mm
Bar between holes1mm
Open area23%
Holes per m²289,000
Thickness0.8–1mm
MaterialStainless 304

Also written: R1T2 · 1mm R1 · 1mm hole 2mm pitch · 1mm round hole on 2mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessStainless 304, K088SSheet size (mm)Weightkg/m²
2000 x 1000
0.8mm5 to 7 days4.9
1.0mm5 to 7 days6.2

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

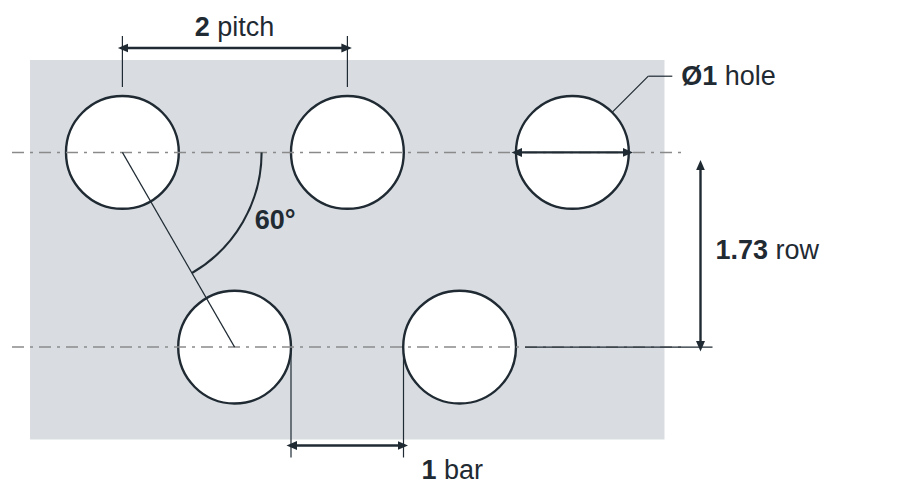

Hole layout

R1 T2 hole layout: 1mm round holes, 2mm staggered pitch, 1mm bar, 1.73mm row spacing

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R1 T2

R1 T2 is a 1mm round hole perforated sheet in 304 stainless steel, with the holes on a 2mm staggered pitch giving 23% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 0.8 to 1mm.

All sizes in the table are made to order, in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.

What does R1 T2 mean?

R1 is a 1mm round hole. T2 means the holes sit on a 2mm staggered (60°) pitch, measured centre to centre.

Not quite right? Compare similar patterns

Anything different from R1 T2 is marked. See every 304 stainless steel pattern, or work out a different pattern

PatternHolePitchOpen areaThicknessStock
R0.75 T1.50.75mm round1.5mm staggered23%0.6mm5 to 7 days
YOU’RE VIEWINGR1 T21mm round2mm staggered23%0.8–1mm5 to 7 days
R1 T2.21mm round2.2mm staggered19%1mm✓ In stock
R1.1 T21.1mm round2mm staggered27%0.8mm✓ In stock
R1.25 T2.41.25mm round2.4mm staggered25%1mm5 to 7 days
R1.5 T2.51.5mm round2.5mm staggered33%1mm✓ In stock
R1.5 T31.5mm round3mm staggered23%1.5mm5 to 7 days

Highlighted where it differs from R1 T2

Get a price

Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
