2.5mm Hole Pre-Galvanised Steel Perforated Sheet (R2.5 T3.5)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
2.5mm hole pre-galvanised steel perforated sheetR2.5 T3.5 hole layout: 2.5mm round holes, 3.5mm staggered pitch, 1mm bar, 3.03mm row spacing

R2.5 T3.5. 2.5mm round hole, 3.5mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for K018G
R2.5 T3.5 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K018G for easy re-ordering.Download spec sheet PDF

Perforated sheet, pre-galvanised, r2.5 t3.5. Kenton code K018G

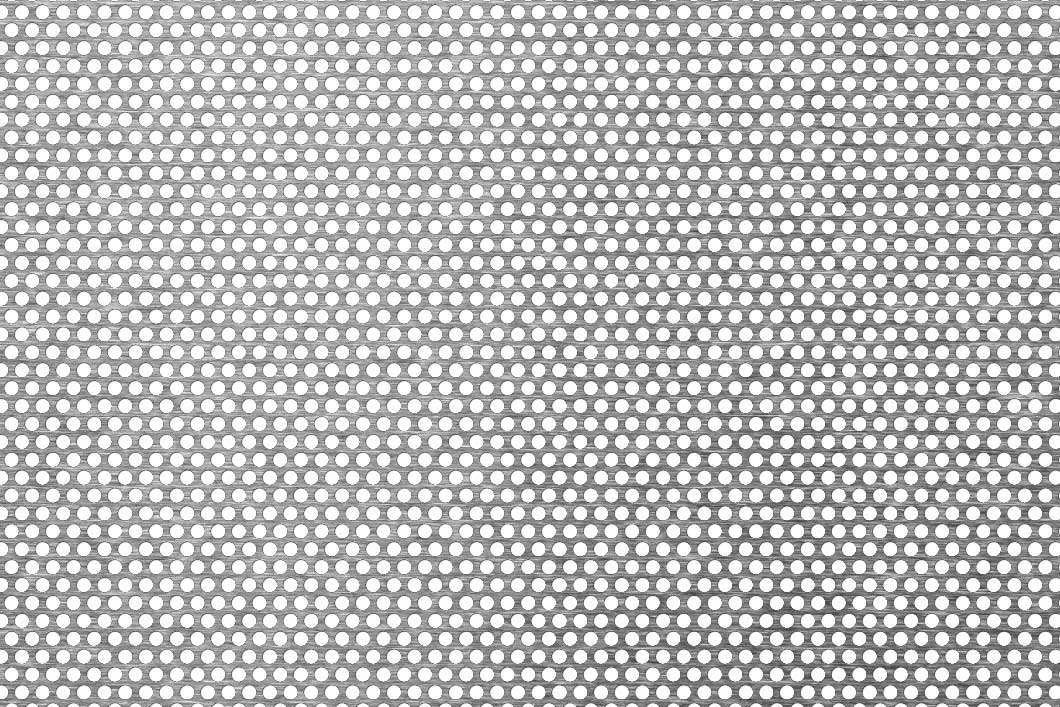

2.5mm hole pre-galvanised steel perforated sheet

R2.5 T3.5 is a 2.5mm round hole perforated sheet in pre-galvanised steel, with the holes on a 3.5mm staggered pitch giving 46% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1 to 1.5mm.

Made to order, approximately 5 to 7 days
Product specificationThe measurements of R2.5 T3.5
Hole2.5mm round
Pitch3.5mm staggered 60°
Row spacing3.03mm
Bar between holes1mm
Open area46%
Holes per m²94,300
Thickness1–1.5mm
MaterialPre-galvanised

Also written: R2.5T3.5 · 2.5mm R2.5 · 2.5mm hole 3.5mm pitch · 2.5mm round hole on 3.5mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessPre-galvanised, K018GSheet size (mm)Weightkg/m²
2000 x 10002500 x 1250
1.0mm5 to 7 days5 to 7 days4.2
1.5mm5 to 7 days5 to 7 days6.3

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

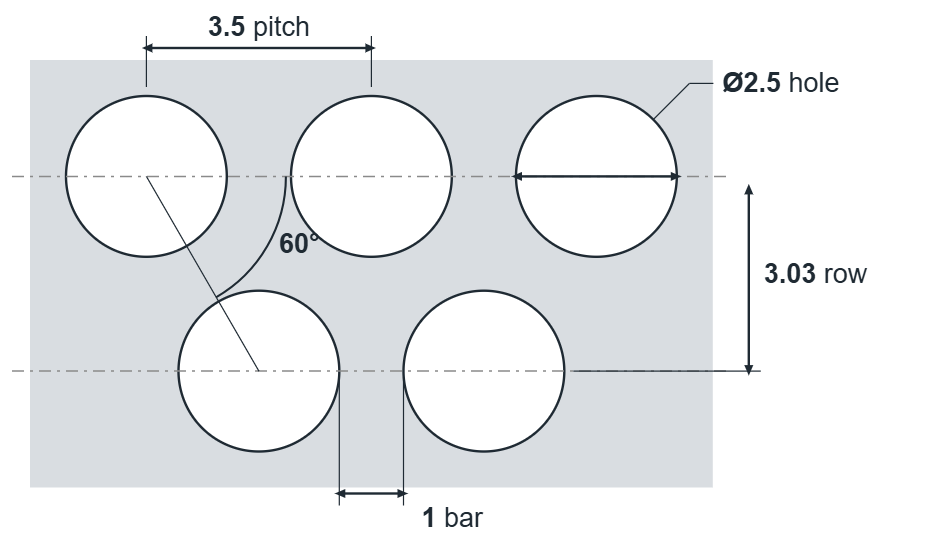

Hole layout

R2.5 T3.5 hole layout: 2.5mm round holes, 3.5mm staggered pitch, 1mm bar, 3.03mm row spacing

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R2.5 T3.5

R2.5 T3.5 is a 2.5mm round hole perforated sheet in pre-galvanised steel, with the holes on a 3.5mm staggered pitch giving 46% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1 to 1.5mm.

All sizes in the table are made to order, in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.

What does R2.5 T3.5 mean?

R2.5 is a 2.5mm round hole. T3.5 means the holes sit on a 3.5mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminium

Not quite right? Compare similar patterns

Anything different from R2.5 T3.5 is marked. See every pre-galvanised steel pattern, or work out a different pattern

PatternHolePitchOpen areaThicknessStock
R1 T21mm round2mm staggered23%1mm5 to 7 days
R2 T32mm round3mm staggered40%1mm5 to 7 days
R2 T3.52mm round3.5mm staggered30%1–2mm✓ In stock
YOU’RE VIEWINGR2.5 T3.52.5mm round3.5mm staggered46%1–1.5mm5 to 7 days
R2.5 T42.5mm round4mm staggered35%1–2mm5 to 7 days
R3 T43mm round4mm staggered51%1–2mm5 to 7 days
R3 T53mm round5mm staggered33%0.7–3mm✓ In stock
R3 T63mm round6mm staggered23%1–2mm5 to 7 days
R3 T73mm round7mm staggered17%1.5–3mm5 to 7 days

Highlighted where it differs from R2.5 T3.5
