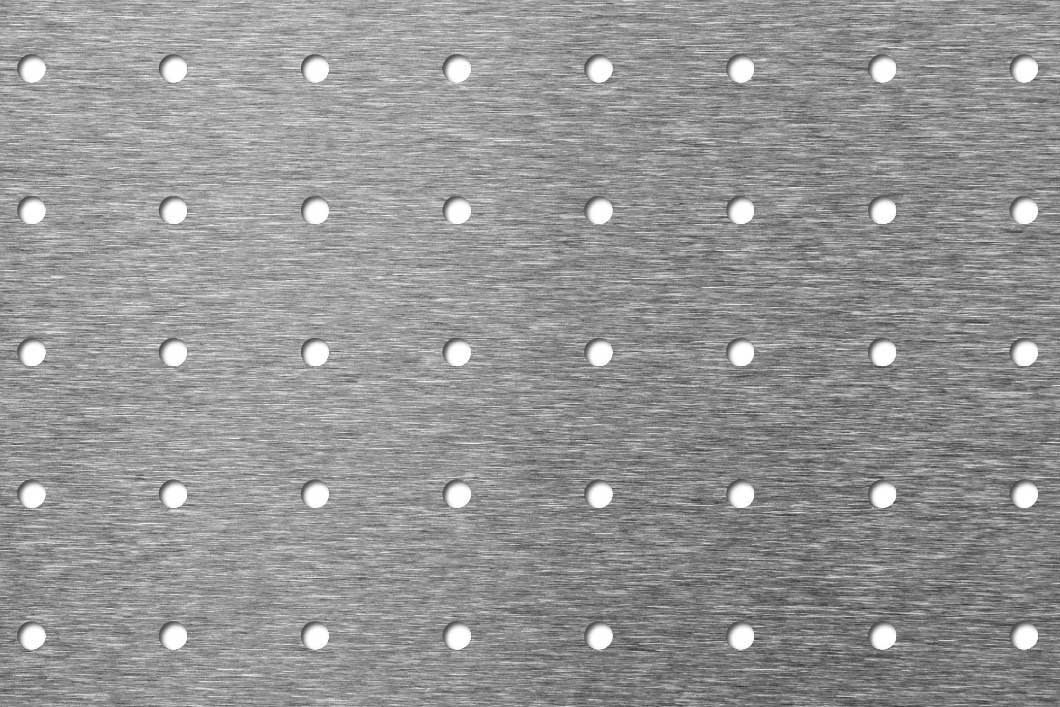

R5 U25 perforated sheet: 5mm round holes on 25mm square pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

5mm Hole 304 Stainless Steel Perforated Sheet (R5 U25)

Perforated sheetStainless 304Kenton code K458S

5mmRound hole
25mmSquare pitch
3%Open area
1–3mmThickness

Stock and sheet sizes

Stainless 304K458S 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 5-7 days 7.7
1.5mm 5-7 days 5-7 days 5-7 days 11.6
2.0mm 5-7 days 5-7 days 5-7 days 15.5
3.0mm 5-7 days 23.2

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

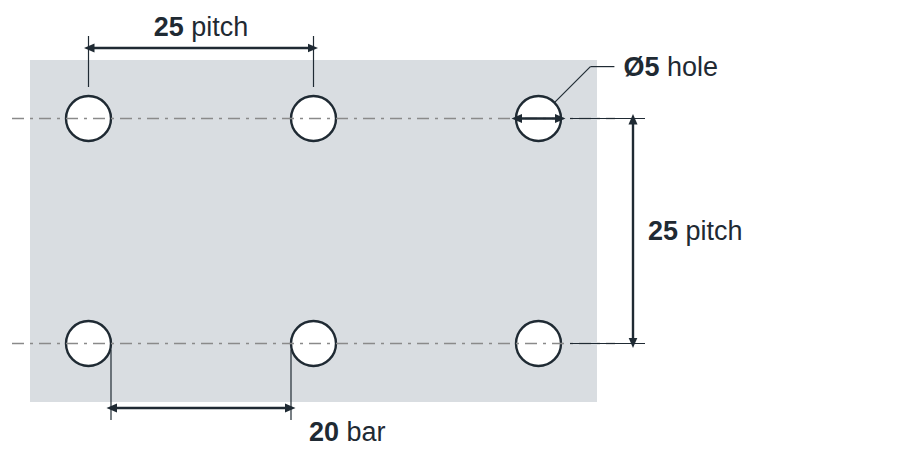

R5 U25 hole layout: 5mm round holes, 25mm square pitch, 20mm bar

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
5mm round
Pitch
25mm square
Bar between holes
20mm
Open area
3%
Holes per m²
1,600
Thickness
1–3mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R5 U25 304 stainless steel perforated sheet

R5 U25 is a 5mm round hole perforated sheet in 304 stainless steel, with the holes on a 25mm square pitch giving 3% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 3mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R5 U25 mean?

R5 is a 5mm round hole. U25 means the holes sit on a 25mm square (in-line) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steelStainless 316

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R4.5 U15 4.5mm round 15mm square 7% 1.5mm ✓ In stock
R5 U10 5mm round 10mm square 20% 1–2mm 5-7 days
R5 T10 5mm round 10mm staggered 23% 1–2mm 5-7 days
R5 T12 5mm round 12mm staggered 16% 1.5–2mm 5-7 days
R5 T14 5mm round 14mm staggered 12% 1–2mm 5-7 days
R5 U15 5mm round 15mm square 9% 1–3mm 5-7 days
R5 U25This page 5mm round 25mm square 3% 1–3mm 5-7 days

The nearest 304 stainless steel round hole patterns to R5 U25. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
