6mm Hole Mild Steel Perforated Sheet (R6 T9)
Perforated sheetMild steelKenton code K050M
Stock and sheet sizes
| Mild steelK050M | 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | kg/m² |
|---|---|---|---|---|
| 1.0mm | ✓ In stock | 5-7 days | 5-7 days | 4.7 |
| 1.5mm | ✓ In stock | ✓ In stock | ✓ In stock | 7.0 |
| 2.0mm | ✓ In stock | ✓ In stock | 5-7 days | 9.4 |
| 3.0mm | ✓ In stock | ✓ In stock | 5-7 days | 14.1 |
✓ In stockon the shelf, ready to send5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details
Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

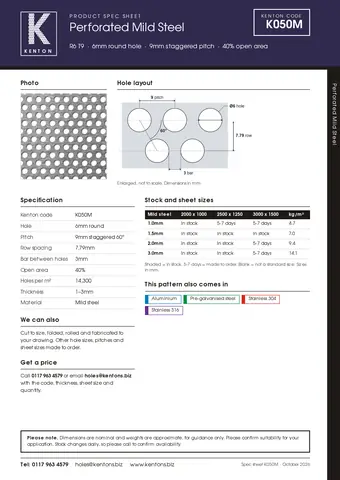

Specification
- Hole
- 6mm round
- Pitch
- 9mm staggered 60°
- Row spacing
- 7.79mm
- Bar between holes
- 3mm
- Open area
- 40%
- Holes per m²
- 14,300
- Thickness
- 1–3mm
- Material
- Mild steel
About R6 T9 mild steel perforated sheet
R6 T9 is a 6mm round hole perforated sheet in mild steel, with the holes on a 9mm staggered pitch giving 40% open area. We keep it in stock here in Bristol, in thicknesses from 1 to 3mm.
In stock: 1mm in 2m x 1m sheets; 1.5mm in 2m x 1m, 2.5m x 1.25m and 3m x 1.5m; 2mm and 3mm in 2m x 1m and 2.5m x 1.25m. Everything else in the table is made to order in 5-7 days.
What does R6 T9 mean?
R6 is a 6mm round hole. T9 means the holes sit on a 9mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R4 T5 | 4mm round | 5mm staggered | 58% | 1–1.5mm | ✓ In stock |
| R4 T6 | 4mm round | 6mm staggered | 40% | 1–3mm | ✓ In stock |
| R5 T7 | 5mm round | 7mm staggered | 46% | 1–2mm | ✓ In stock |
| R5 T8 | 5mm round | 8mm staggered | 35% | 1–5mm | ✓ In stock |
| R6 T9This page | 6mm round | 9mm staggered | 40% | 1–3mm | ✓ In stock |
| R8 T11 | 8mm round | 11mm staggered | 48% | 1–2mm | ✓ In stock |
| R8 T12 | 8mm round | 12mm staggered | 40% | 1–6mm | ✓ In stock |
The nearest mild steel round hole patterns to R6 T9. See every mild steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
