Stock and sheet sizes

Stainless 316K050S6	2000 x 1000	2500 x 1250	kg/m²
1.0mm	5-7 days	5-7 days	4.8
1.5mm	5-7 days	✓ In stock	7.2
2.0mm	5-7 days	5-7 days	9.6

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

Cut to sizewhile you wait

Next working daydelivery on stock sheets

Folded & fabricatedto your drawing

Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579 Email us

Description

Technical details

Hole layout

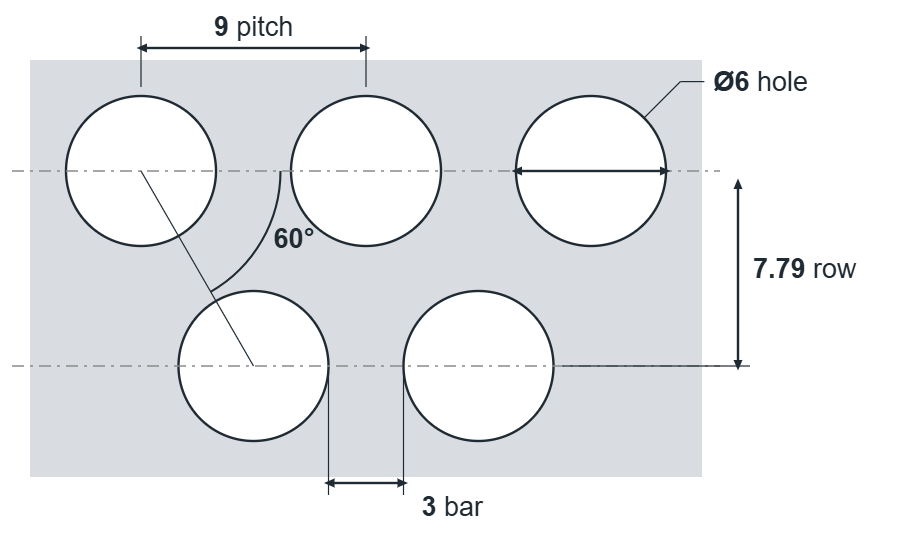

R6 T9 hole layout: 6mm round holes, 9mm staggered pitch, 3mm bar, 7.79mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole: 6mm round
Pitch: 9mm staggered 60°
Row spacing: 7.79mm
Bar between holes: 3mm
Open area: 40%
Holes per m²: 14,300
Thickness: 1–2mm
Material: Stainless 316

Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579 Email your drawing

About R6 T9 316 stainless steel perforated sheet

R6 T9 is a 6mm round hole perforated sheet in 316 stainless steel, with the holes on a 9mm staggered pitch giving 40% open area. We keep it in stock here in Bristol, in thicknesses from 1 to 2mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

In stock: 1.5mm in 2.5m x 1.25m sheets. Everything else in the table is made to order in 5-7 days.

What does R6 T9 mean?

R6 is a 6mm round hole. T9 means the holes sit on a 9mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steel Aluminium Pre-galvanised steel Stainless 304

Similar patterns

Pattern	Hole	Pitch	Open area	Thickness	Stock
R2 T3.5	2mm round	3.5mm staggered	30%	1–1.5mm	✓ In stock
R3 T5	3mm round	5mm staggered	33%	0.7–2mm	✓ In stock
R3 T6	3mm round	6mm staggered	23%	3mm	✓ In stock
R4 T6	4mm round	6mm staggered	40%	1–2mm	✓ In stock
R5 T8	5mm round	8mm staggered	35%	1–3mm	✓ In stock
R6 T9This page	6mm round	9mm staggered	40%	1–2mm	✓ In stock
R10 T15	10mm round	15mm staggered	40%	1–3mm	✓ In stock

The nearest 316 stainless steel round hole patterns to R6 T9. See every 316 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.

Stock orders ship on a next working day delivery !
