6mm Hole Aluminium Perforated Sheet (R6 T9)
Description
R6 T9. 6mm round hole, 9mm staggered pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

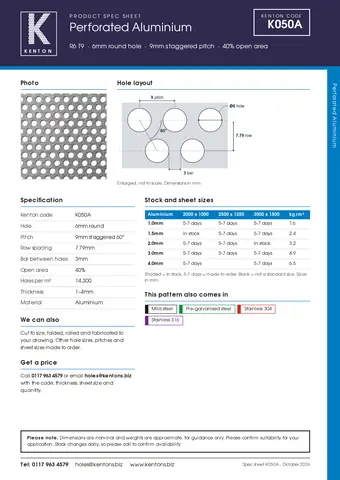

Perforated sheet, aluminium, r6 t9. Kenton code K050A

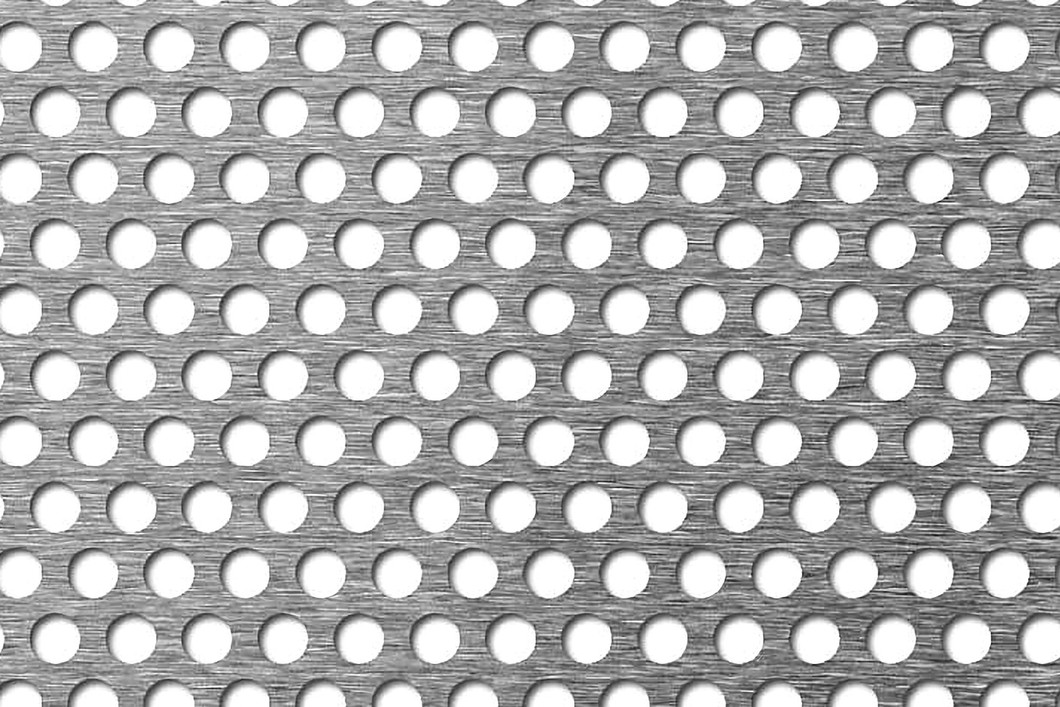

6mm hole aluminium perforated sheet
R6 T9 is a 6mm round hole perforated sheet in aluminium, with the holes on a 9mm staggered pitch giving 40% open area. We keep it in stock, in thicknesses from 1 to 4mm.
Also written: R6T9 · 6mm R6 · 6mm hole 9mm pitch · 6mm round hole on 9mm staggered centres
| ThicknessAluminium, K050A | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 1.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 1.6 |
| 1.5mm | ✓ In stock | 5 to 7 days | 5 to 7 days | 2.4 |
| 2.0mm | 5 to 7 days | 5 to 7 days | ✓ In stock | 3.2 |
| 3.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 4.9 |
| 4.0mm | 5 to 7 days | 5 to 7 days | 6.5 | |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout
Enlarged, not to scale. Dimensions in mm.
About R6 T9
R6 T9 is a 6mm round hole perforated sheet in aluminium, with the holes on a 9mm staggered pitch giving 40% open area. We keep it in stock, in thicknesses from 1 to 4mm.
In stock: 1.5mm in 2m x 1m sheets; 2mm in 3m x 1.5m. Everything else in the table is made to order in 5 to 7 days.
What does R6 T9 mean?
R6 is a 6mm round hole. T9 means the holes sit on a 9mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from R6 T9 is marked. See every aluminium pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R3 T5 | 3mm round | 5mm staggered | 33% | 0.7–3mm | ✓ In stock |
| R4 T6 | 4mm round | 6mm staggered | 40% | 1–3mm | 5 to 7 days |
| R4.5 U15 | 4.5mm round | 15mm square | 7% | 1.5–2mm | 5 to 7 days |
| R5 T8 | 5mm round | 8mm staggered | 35% | 1–3mm | ✓ In stock |
| YOU’RE VIEWINGR6 T9 | 6mm round | 9mm staggered | 40% | 1–4mm | ✓ In stock |
| R8 T12 | 8mm round | 12mm staggered | 40% | 1–3mm | ✓ In stock |
| R10 T15 | 10mm round | 15mm staggered | 40% | 1–4mm | ✓ In stock |
Highlighted where it differs from R6 T9
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
