1½" x 1½" Welded Wire Mesh, Stainless Steel (KWE15)

Need help in choosing the right product?

Ask our experts

CONTACT US

1½” x 1½” Welded Wire Mesh, Stainless Steel (KWE15)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz

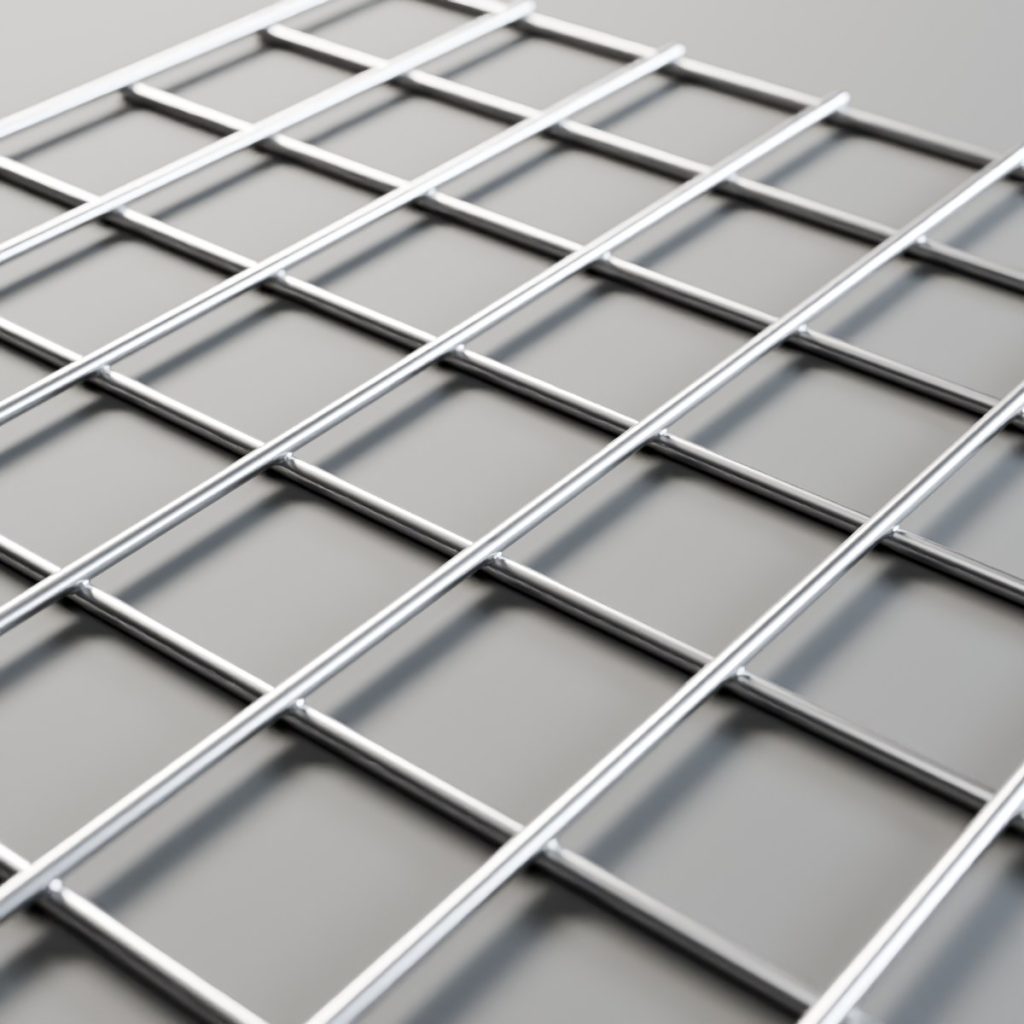

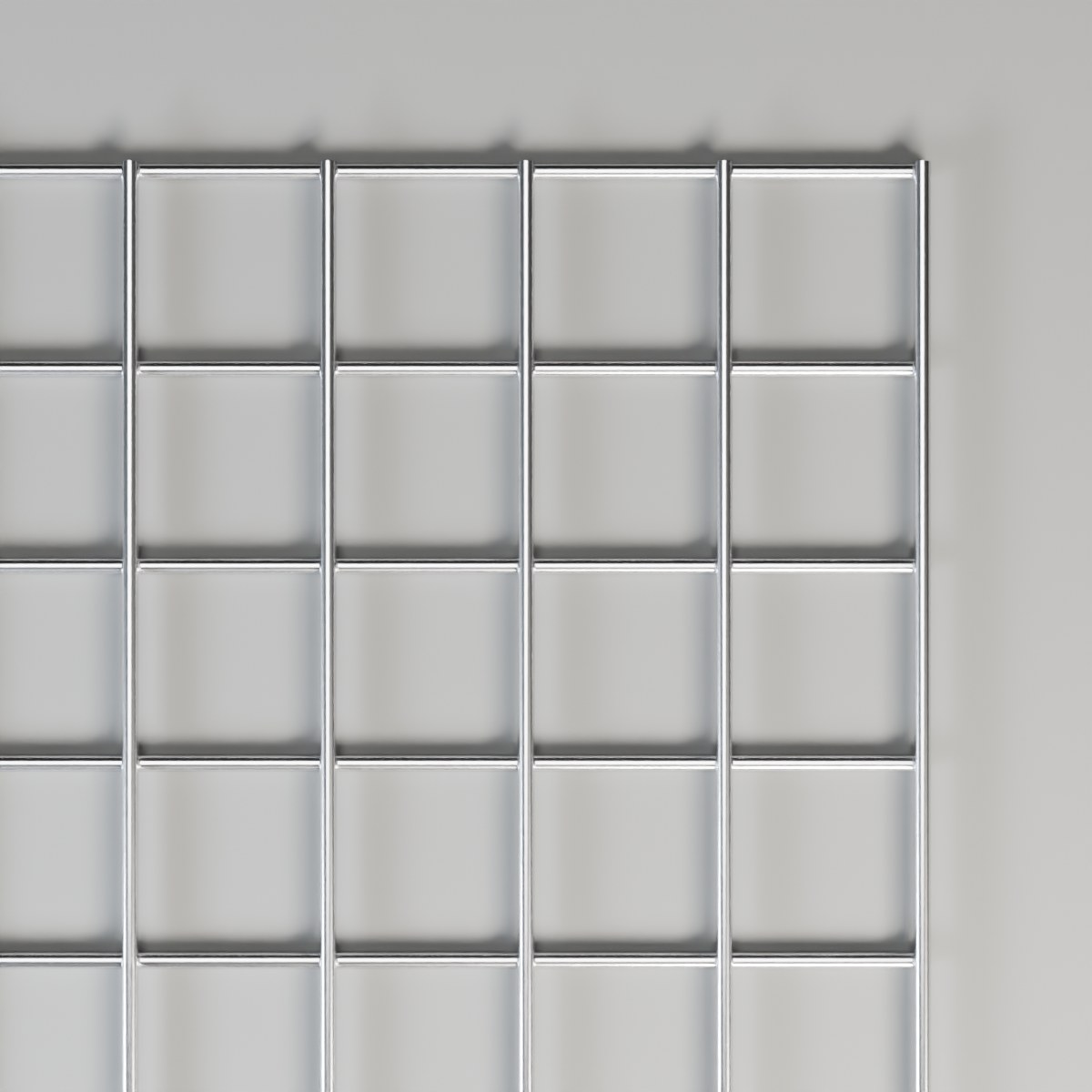

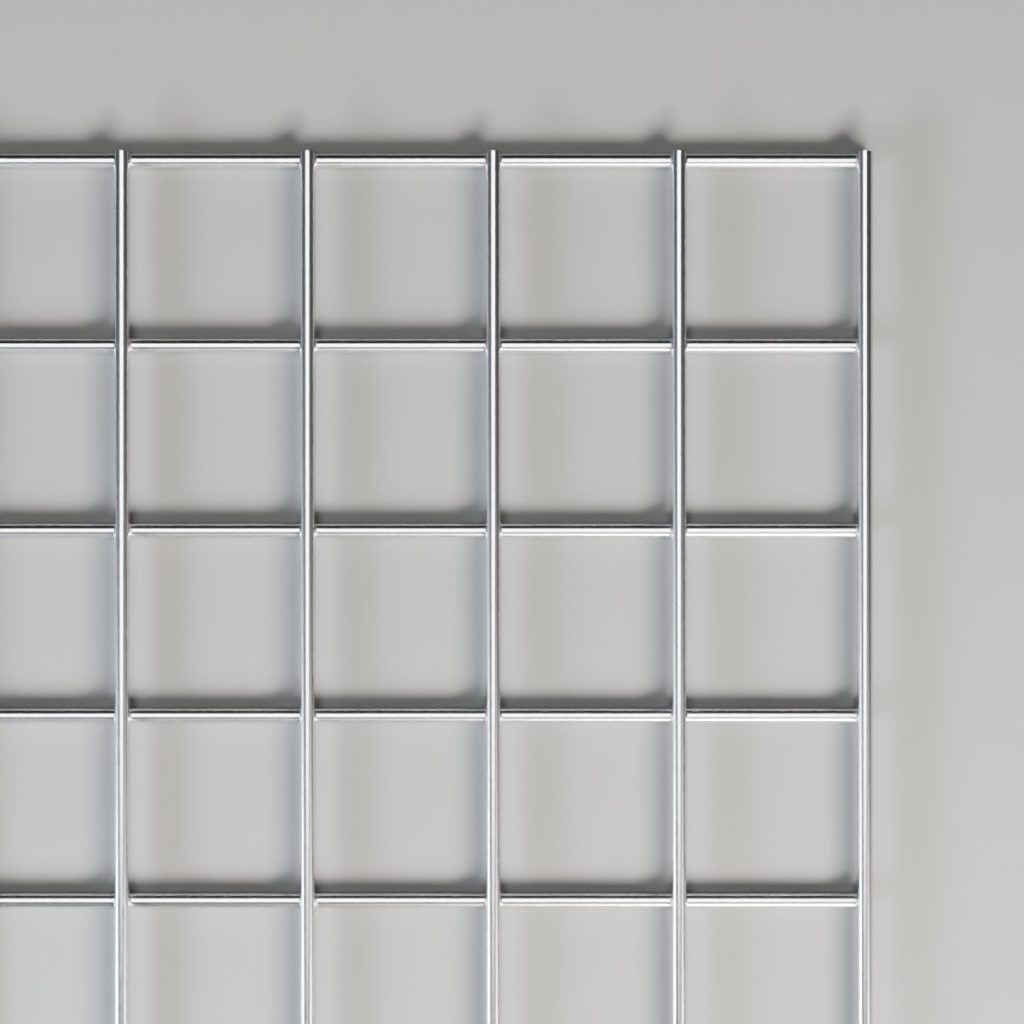

1½" x 1½" stainless welded mesh, top view1½" x 1½" stainless welded mesh, side view

Stainless welded mesh. Kenton code KWE15

1½″ x 1½″ stainless welded mesh

A flat sheet of stainless steel wires that cross every 38.1mm and are welded at every joint, leaving square openings just under 35mm across.

38.1mmWire centres
84%Open area
2440 x 1220Full sheet (mm)
Stocked in Stainless 304
In stock, next working day delivery
Get a price →Spec sheet PDF

Specification

Every 1½″ x 1½″ sheet we keep in stock.

WireWire centresClear gapOpen areaWeightGradeFull sheetStock
3.25mm10g gauge38.1mm34.85mm84%approx. 3.5 kg/m²3042440 x 1220mm✓ In stockPrice this
Welded at every crossing. Dimensions are nominal and weights approximate.Download the spec sheet PDF

Order in three steps

Pick your wire, grade and number of sheets. We’ll fill in the price request for you.

1

The wire

We stock 1½″ x 1½″ in one wire.

2

The grade

We stock 1½″ x 1½″ in stainless 304.

3

How many sheets?

Each sheet is 2440 x 1220mm.

1 full sheet

You’re asking for

Get a price →

Need different sizes? We can cut sheets down. Just add the sizes on the form, or call 0117 963 4579.

Drawing and spec sheet

The 1½″ x 1½″ mesh up close, and our spec sheet to keep or pass on.

38.1 centres34.85 gap3.25 wireweld

Enlarged, not to scale. Dimensions in mm, shown for the 3.25mm wire.

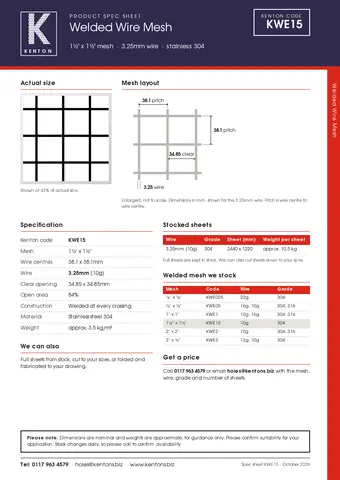

Kenton spec sheet for 1½" x 1½" welded mesh

1½″ x 1½″ spec sheet

One A4 page with the sizes, weights, stocked sheets and a drawing.

  • Ready to print or attach to an order
  • Our code KWE15 for easy re-ordering
Download spec sheet PDF

Not quite right? Compare our welded meshes

Anything different from the 1½″ x 1½″ is marked.

MeshWire centresWireOpen areaWhat’s different
¼" x ¼" welded mesh, top view
¼″ x ¼″
6.35mm
0.71mm
79%
Squares smaller, 0.71mm wire only. Sheet 2500 x 1250mm.
View ¼″ x ¼″
½" x ½" welded mesh, top view
½″ x ½″
12.7mm
1.63 or 3.25mm
55–76%
Squares smaller.
View ½″ x ½″
1" x 1" welded mesh, top view
1″ x 1″
25.4mm
1.63 or 3.25mm
76–88%
Squares two thirds of the size.
View 1″ x 1″
1½" x 1½" welded mesh, top view
YOU’RE VIEWING1½″ x 1½″
38.1mm
3.25mm
84%
This page.
2" x 2" welded mesh, top view
2″ x 2″
50.8mm
3.25mm
88%
Squares a third bigger, in the same wire.
View 2″ x 2″
3" x ½" welded mesh, top view
3″ x ½″
76.2 x 12.7mm
2.64 or 3.25mm
71–76%
Long, narrow openings rather than squares.
View 3″ x ½″

Highlighted where it differs from 1½″ x 1½″
