3" x ½" Welded Wire Mesh, Stainless Steel (KWE3)

Need help in choosing the right product?

Ask our experts

CONTACT US

3″ x ½” Welded Wire Mesh, Stainless Steel (KWE3)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz

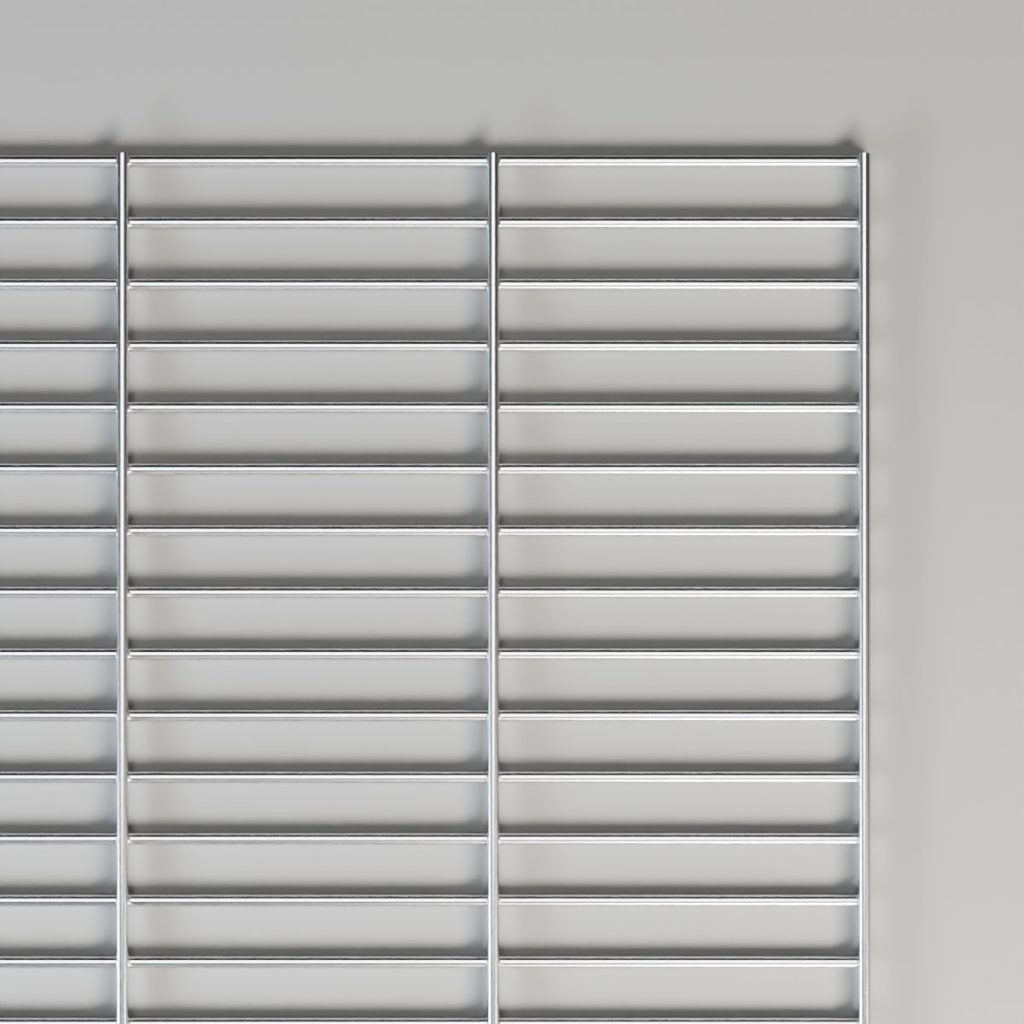

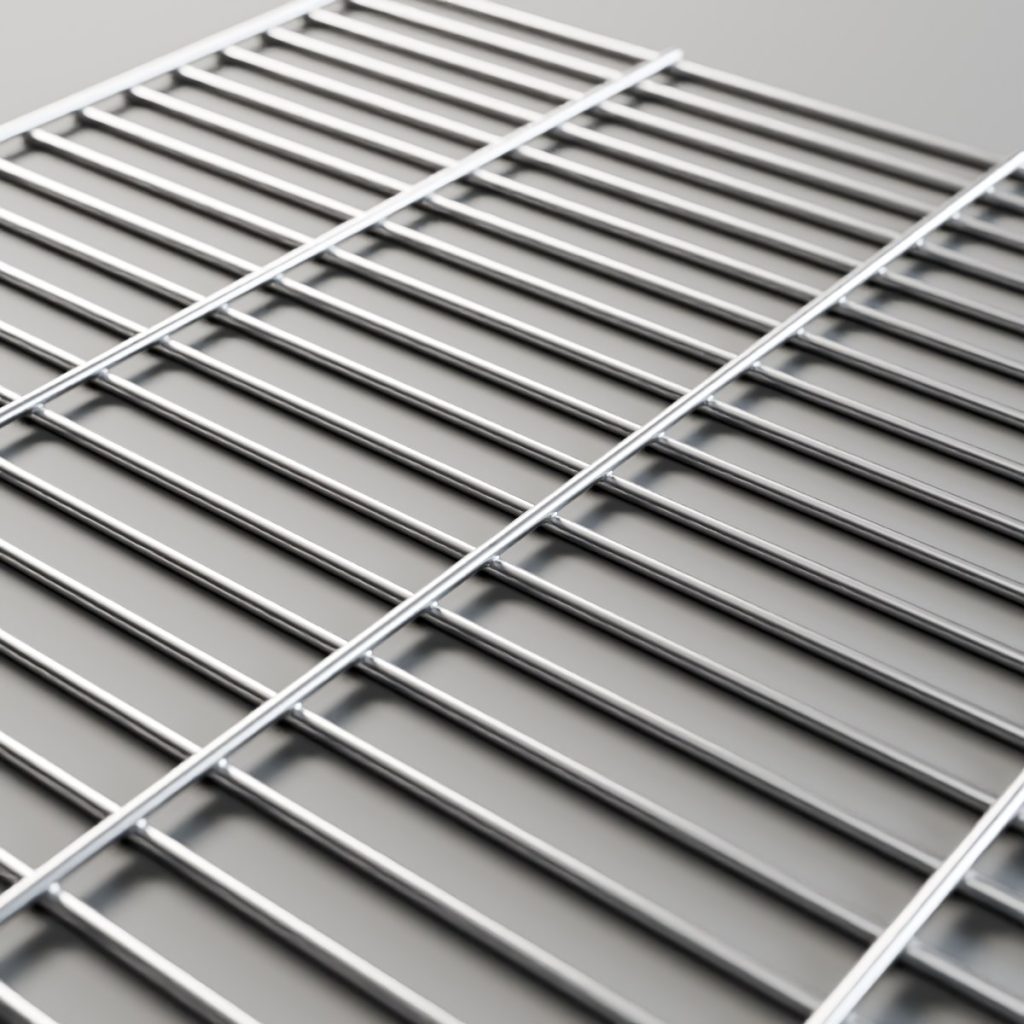

3" x ½" stainless welded mesh, top view3" x ½" stainless welded mesh, side view

Stainless welded mesh. Kenton code KWE3

3″ x ½″ stainless welded mesh

A flat sheet of stainless steel wires, 76.2mm apart one way and 12.7mm the other, welded at every joint. The openings are long and narrow, about 73.5mm by just over 10mm.

76.2 x 12.7mmWire centres
71–76%Open area
2440 x 1220Full sheet (mm)
Stocked in Stainless 304
In stock, next working day delivery
Get a price →Spec sheet PDF

Specification

Every 3″ x ½″ sheet we keep in stock.

WireWire centresClear gapOpen areaWeightGradeFull sheetStock
2.64mm12g gauge76.2 x 12.7mm73.56 x 10.06mm76%approx. 4.0 kg/m²3042440 x 1220mm✓ In stockPrice this
3.25mm10g gauge76.2 x 12.7mm72.95 x 9.45mm71%approx. 6.0 kg/m²3042440 x 1220mm✓ In stockPrice this
Welded at every crossing. Dimensions are nominal and weights approximate.Download the spec sheet PDF

Order in three steps

Pick your wire, grade and number of sheets. We’ll fill in the price request for you.

1

Choose the wire

Both have the same 76.2 x 12.7mm centres. The thicker wire makes a stiffer sheet.

2

The grade

We stock 3″ x ½″ in stainless 304.

3

How many sheets?

Each sheet is 2440 x 1220mm.

1 full sheet

You’re asking for

Get a price →

Need different sizes? We can cut sheets down. Just add the sizes on the form, or call 0117 963 4579.

Drawing and spec sheet

The 3″ x ½″ mesh up close, and our spec sheet to keep or pass on.

76.2 centres12.773.56 gap2.64 wireweld

Enlarged, not to scale. Dimensions in mm, shown for the 2.64mm wire.

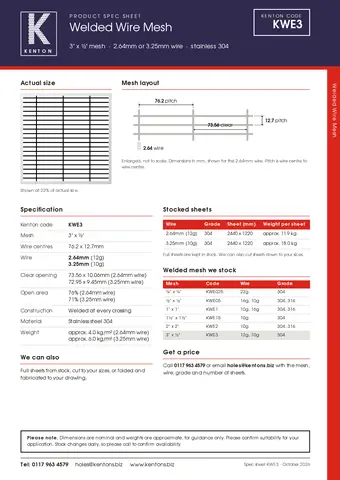

Kenton spec sheet for 3" x ½" welded mesh

3″ x ½″ spec sheet

One A4 page with the sizes, weights, stocked sheets and a drawing.

  • Ready to print or attach to an order
  • Our code KWE3 for easy re-ordering
Download spec sheet PDF

Not quite right? Compare our welded meshes

Anything different from the 3″ x ½″ is marked.

MeshWire centresWireOpen areaWhat’s different
¼" x ¼" welded mesh, top view
¼″ x ¼″
6.35mm
0.71mm
79%
Square openings on 6.35mm centres, 0.71mm wire only. Sheet 2500 x 1250mm.
View ¼″ x ¼″
½" x ½" welded mesh, top view
½″ x ½″
12.7mm
1.63 or 3.25mm
55–76%
Square openings on 12.7mm centres.
View ½″ x ½″
1" x 1" welded mesh, top view
1″ x 1″
25.4mm
1.63 or 3.25mm
76–88%
Square openings on 25.4mm centres.
View 1″ x 1″
1½" x 1½" welded mesh, top view
1½″ x 1½″
38.1mm
3.25mm
84%
Square openings on 38.1mm centres, 3.25mm wire only.
View 1½″ x 1½″
2" x 2" welded mesh, top view
2″ x 2″
50.8mm
3.25mm
88%
Square openings on 50.8mm centres, 3.25mm wire only.
View 2″ x 2″
3" x ½" welded mesh, top view
YOU’RE VIEWING3″ x ½″
76.2 x 12.7mm
2.64 or 3.25mm
71–76%
This page.

Highlighted where it differs from 3″ x ½″

Get a price

Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.

Phone

0117 963 4579

Email

holes@kentons.biz

Address

25/26 Barnack Trading Centre
Novers Hill, Bristol BS3 5QE

Opening hours

Monday to Thursday 8:30 to 5
Friday 8:30 to 3
