1" x 1" Welded Wire Mesh, Stainless Steel (KWE1)

Need help in choosing the right product?

Ask our experts

CONTACT US

1″ x 1″ Welded Wire Mesh, Stainless Steel (KWE1)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz

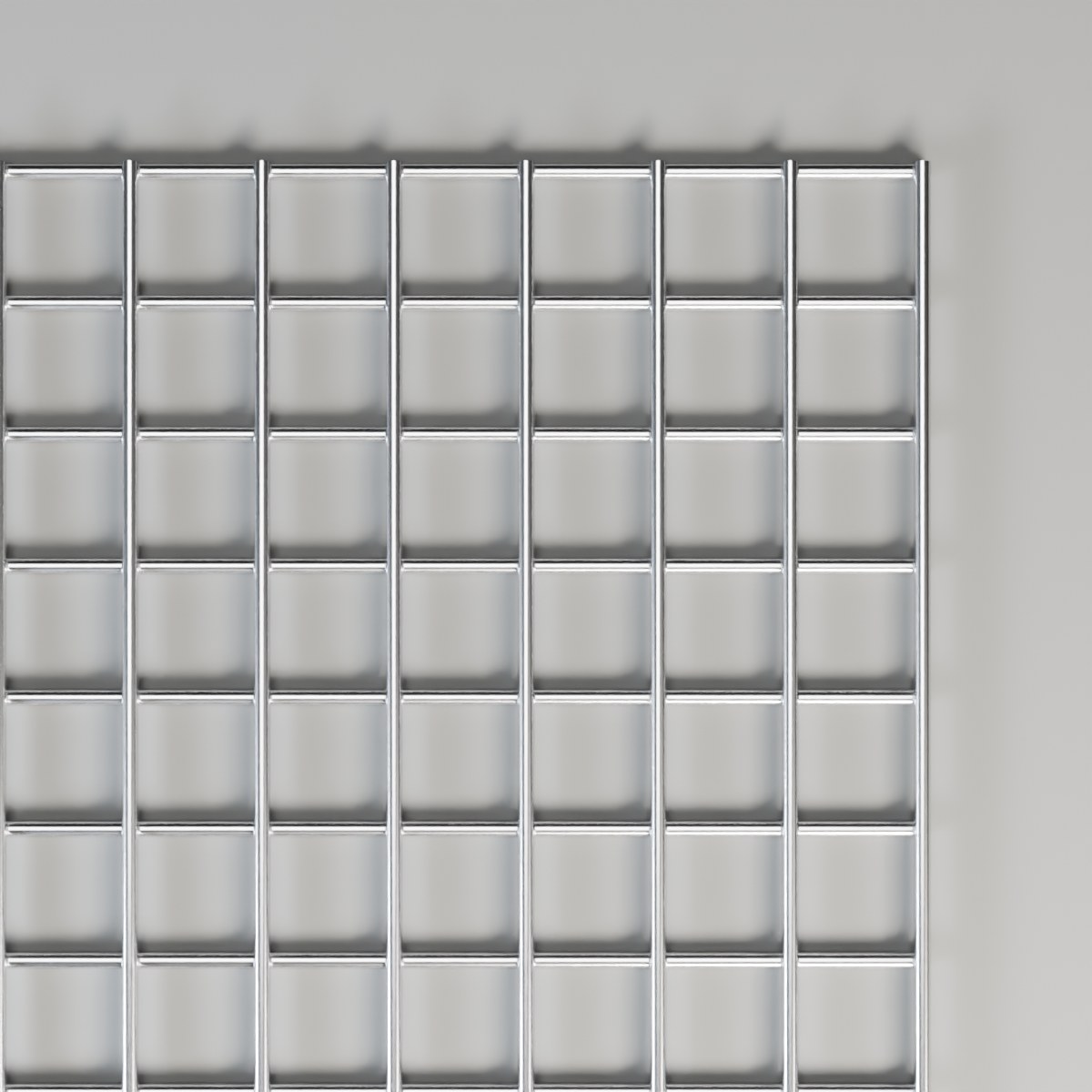

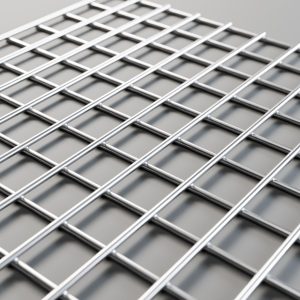

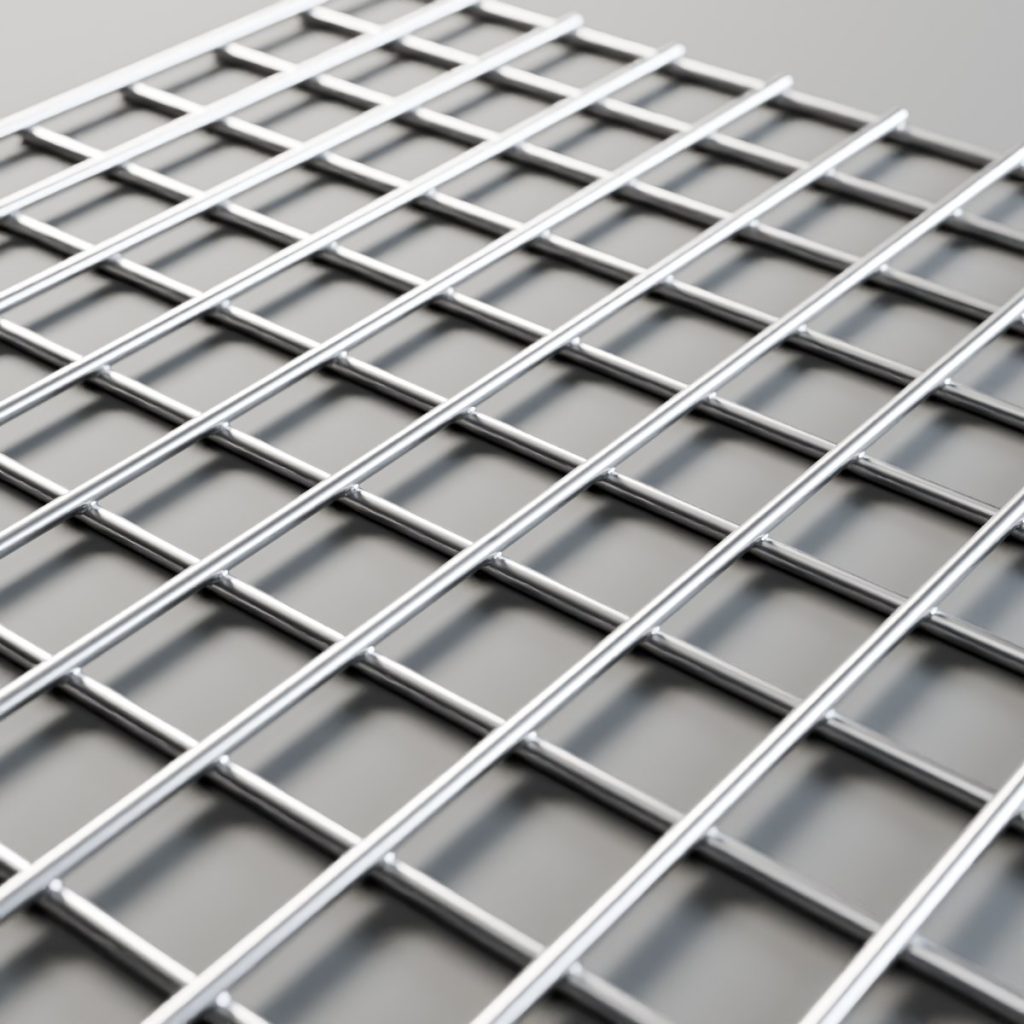

1" x 1" stainless welded mesh, top view1" x 1" stainless welded mesh, side view

Stainless welded mesh. Kenton code KWE1

1″ x 1″ stainless welded mesh

A flat sheet of stainless steel wires that cross every 25.4mm and are welded at every joint, leaving square openings just over 22mm across.

25.4mmWire centres
76–88%Open area
2440 x 1220Full sheet (mm)
Stocked in Stainless 304 Stainless 316
In stock, next working day delivery
Get a price →Spec sheet PDF

Specification

Every 1″ x 1″ sheet we keep in stock.

WireWire centresClear gapOpen areaWeightGradeFull sheetStock
3.25mm10g gauge25.4mm22.15mm76%approx. 5.2 kg/m²3042440 x 1220mm✓ In stockPrice this
3.25mm10g gauge25.4mm22.15mm76%approx. 5.2 kg/m²3162440 x 1220mm✓ In stockPrice this

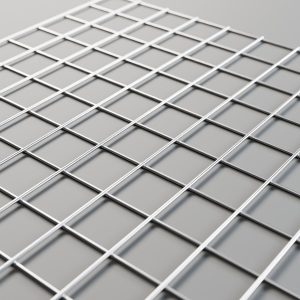

1.63mm16g gauge25.4mm23.77mm88%approx. 1.3 kg/m²3042440 x 1220mm✓ In stockPrice this
Welded at every crossing. Dimensions are nominal and weights approximate.Download the spec sheet PDF

Order in three steps

Pick your wire, grade and number of sheets. We’ll fill in the price request for you.

1

Choose the wire

Both have the same 25.4mm centres. The thicker wire makes a stiffer sheet.

2

Choose the grade

Both are stainless steel.

3

How many sheets?

Each sheet is 2440 x 1220mm.

1 full sheet

You’re asking for

Get a price →

Need different sizes? We can cut sheets down. Just add the sizes on the form, or call 0117 963 4579.

Drawing and spec sheet

The 1″ x 1″ mesh up close, and our spec sheet to keep or pass on.

25.4 centres22.15 gap3.25 wireweld

Enlarged, not to scale. Dimensions in mm, shown for the 3.25mm wire.

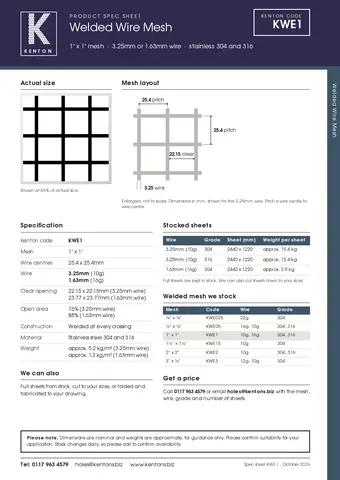

Kenton spec sheet for 1" x 1" welded mesh

1″ x 1″ spec sheet

One A4 page with the sizes, weights, stocked sheets and a drawing.

  • Ready to print or attach to an order
  • Our code KWE1 for easy re-ordering
Download spec sheet PDF

Not quite right? Compare our welded meshes

Anything different from the 1″ x 1″ is marked.

MeshWire centresWireOpen areaWhat’s different
¼" x ¼" welded mesh, top view
¼″ x ¼″
6.35mm
0.71mm
79%
Squares a quarter of the size, 0.71mm wire only. Sheet 2500 x 1250mm.
View ¼″ x ¼″
½" x ½" welded mesh, top view
½″ x ½″
12.7mm
1.63 or 3.25mm
55–76%
Squares half the size, in the same wires.
View ½″ x ½″
1" x 1" welded mesh, top view
YOU’RE VIEWING1″ x 1″
25.4mm
1.63 or 3.25mm
76–88%
This page.
1½" x 1½" welded mesh, top view
1½″ x 1½″
38.1mm
3.25mm
84%
Squares one and a half times the size, 3.25mm wire only.
View 1½″ x 1½″
2" x 2" welded mesh, top view
2″ x 2″
50.8mm
3.25mm
88%
Squares twice the size, 3.25mm wire only.
View 2″ x 2″
3" x ½" welded mesh, top view
3″ x ½″
76.2 x 12.7mm
2.64 or 3.25mm
71–76%
Long, narrow openings rather than squares.
View 3″ x ½″

Highlighted where it differs from 1″ x 1″
