¼” x ¼” Welded Wire Mesh, Stainless Steel (KWE025)
Description
Stainless welded mesh. Kenton code KWE025

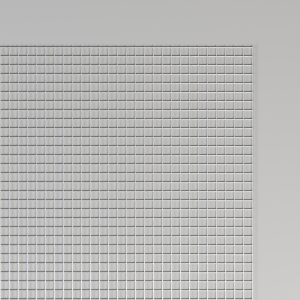

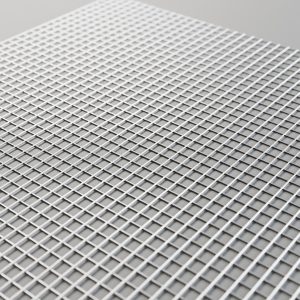

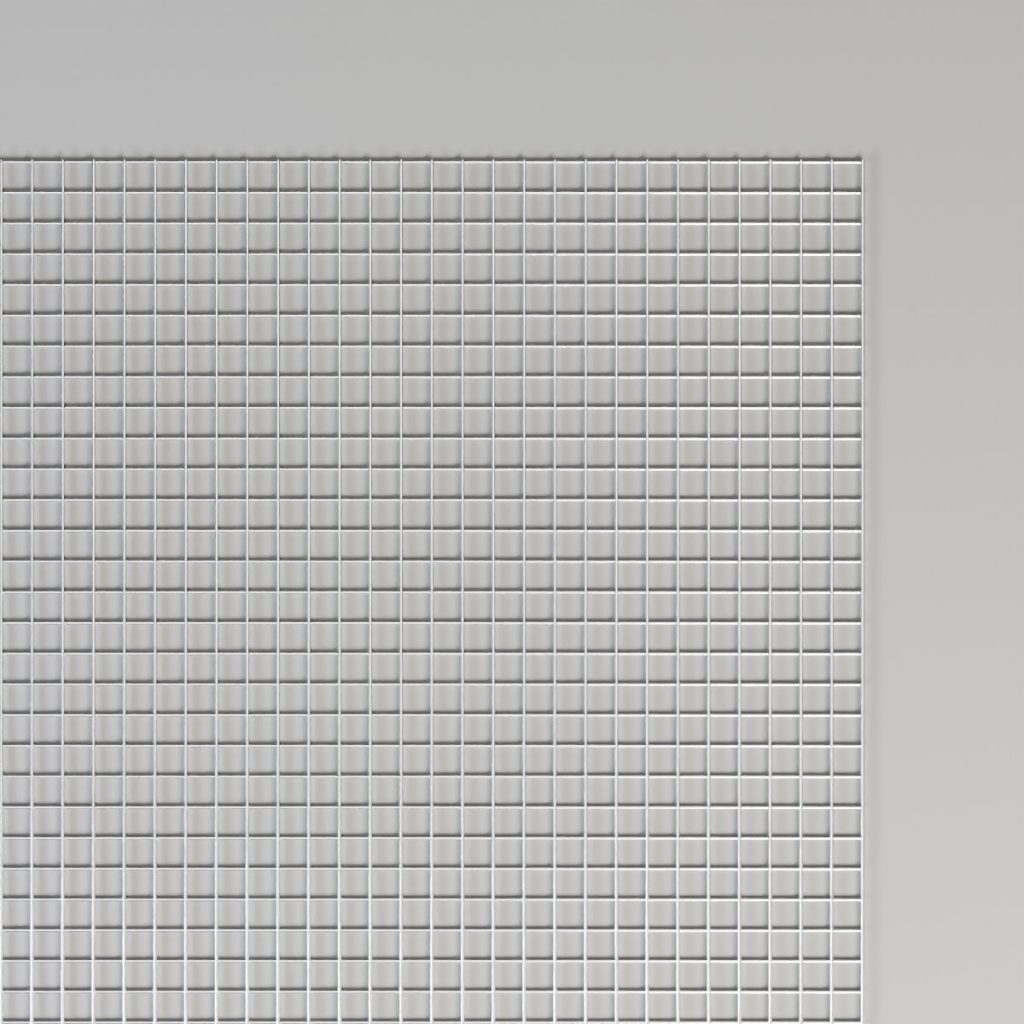

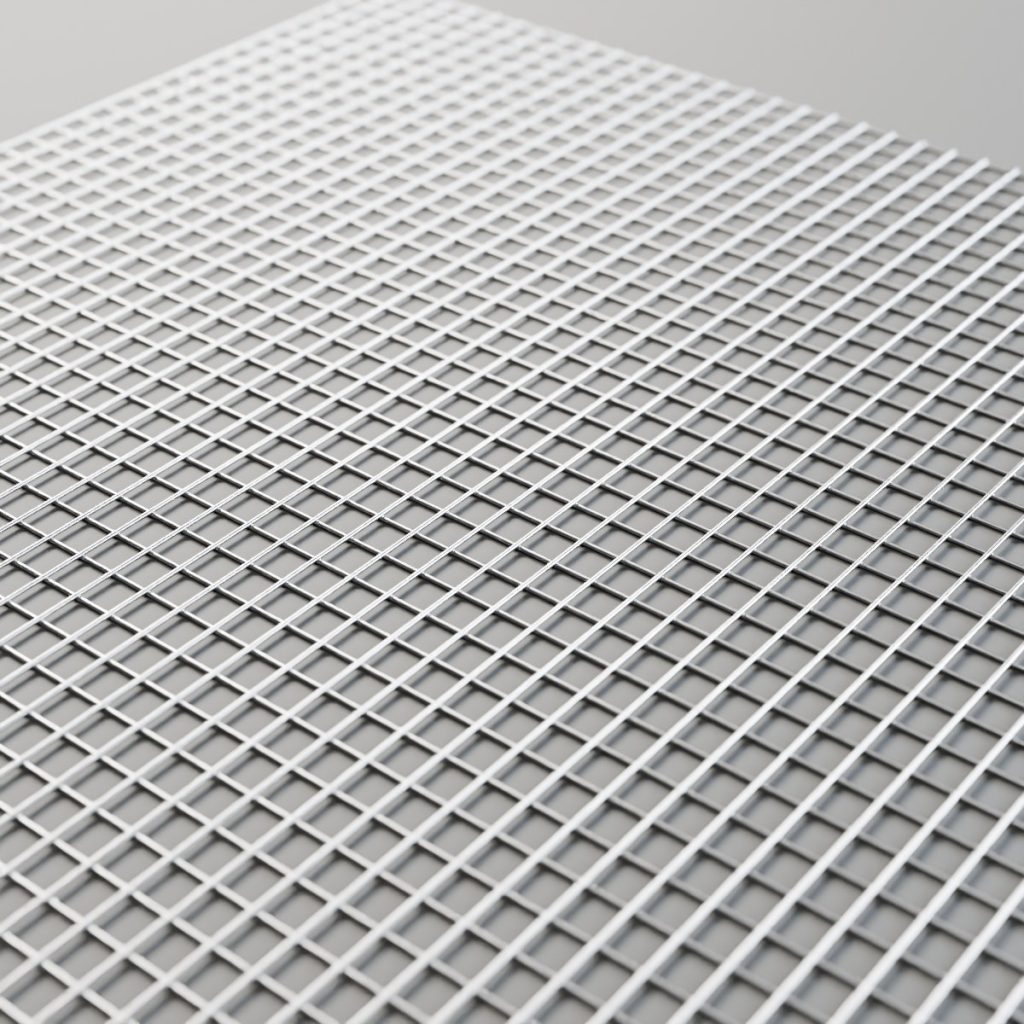

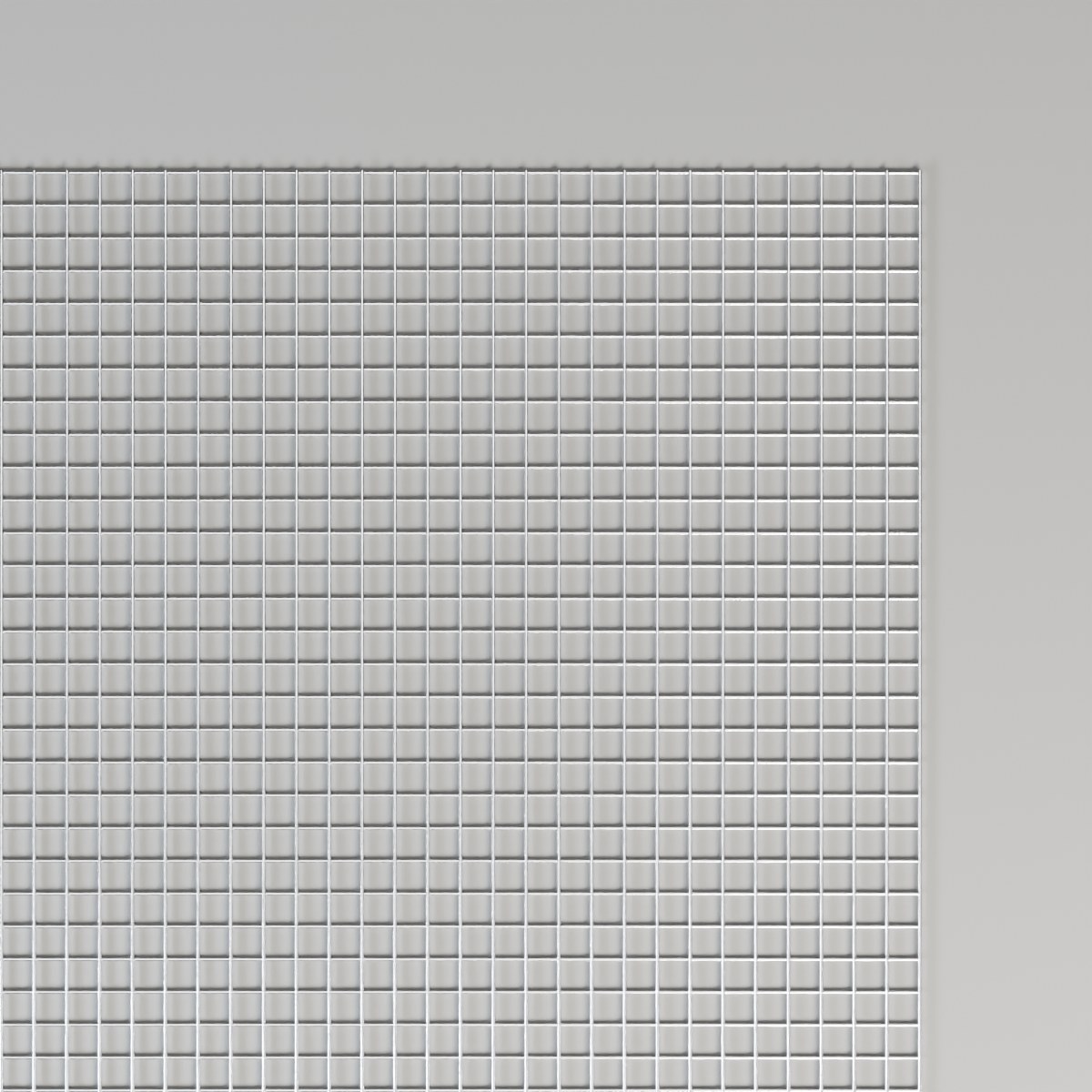

¼″ x ¼″ stainless welded mesh
A flat sheet of stainless steel wires that cross every 6.35mm and are welded at every joint, leaving square openings about 6mm across.
Specification
Every ¼″ x ¼″ sheet we keep in stock.
| Wire | Wire centres | Clear gap | Open area | Weight | Grade | Full sheet | Stock | |
|---|---|---|---|---|---|---|---|---|
| 0.71mm22g gauge | 6.35mm | 5.64mm | 79% | approx. 1.0 kg/m² | 304 | 2500 x 1250mm | ✓ In stock | Price this |
Order in three steps
Pick your wire, grade and number of sheets. We’ll fill in the price request for you.
The wire
We stock ¼″ x ¼″ in one wire.
The grade
We stock ¼″ x ¼″ in stainless 304.
How many sheets?
Each sheet is 2500 x 1250mm.
You’re asking for
Need different sizes? We can cut sheets down. Just add the sizes on the form, or call 0117 963 4579.
Drawing and spec sheet
The ¼″ x ¼″ mesh up close, and our spec sheet to keep or pass on.
Enlarged, not to scale. Dimensions in mm, shown for the 0.71mm wire.

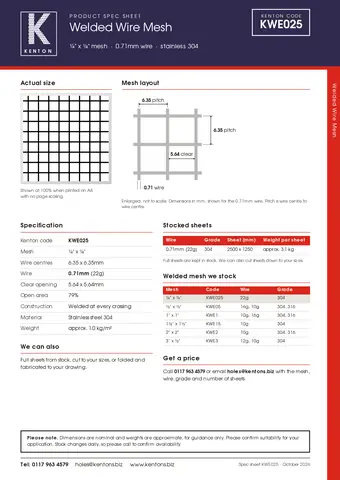

¼″ x ¼″ spec sheet
One A4 page with the sizes, weights, stocked sheets and a drawing.
- Ready to print or attach to an order
- Our code KWE025 for easy re-ordering

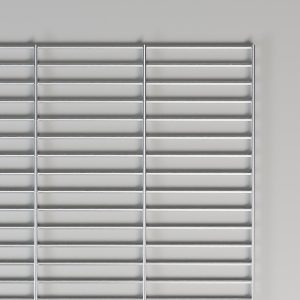

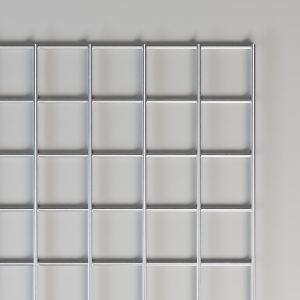

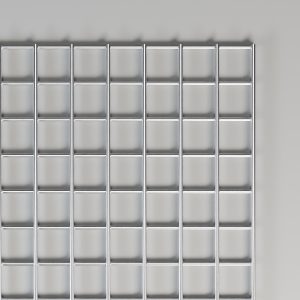

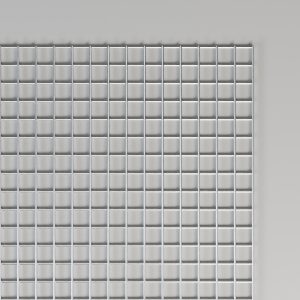

Not quite right? Compare our welded meshes
Anything different from the ¼″ x ¼″ is marked.
Highlighted where it differs from ¼″ x ¼″
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
