32.8 x 10.9mm Flattened Expanded Metal, Mild Steel (4216MF)
Expanded metal · flattenedMild steelKenton code 4216MF
Stock and sheet sizes
| Mild steel4216MF | 2440 x 1220 |
|---|---|
| 1.5mm | ✓ In stock |
✓ In stockon the shelf, ready to send5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

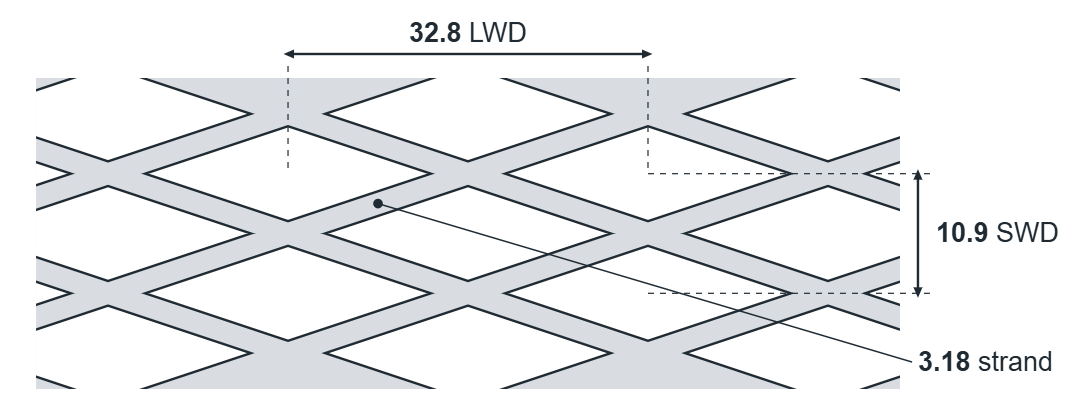

Diamond pattern
Enlarged, not to scale. Dimensions in mm. LWD and SWD are measured centre to centre of the strands.
Specification
- Long way of diamond (LWD)
- 32.8mm
- Short way of diamond (SWD)
- 10.9mm
- Strand width
- 3.18mm
- Thickness
- 1.5mm
- Open area
- 63%
- Finish
- Flattened
- Material
- Mild steel
- Sheet size
- 2440 x 1220mm

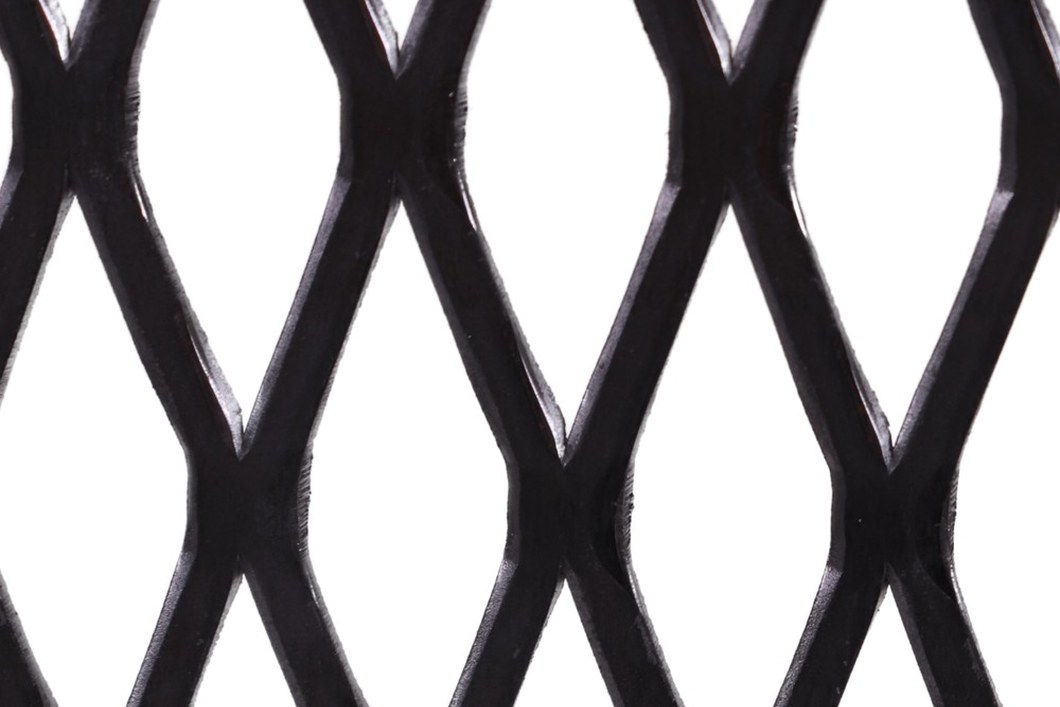

About 4216MF expanded mild steel
4216MF is flattened expanded mild steel with a 32.8 x 10.9mm diamond and 3.18mm strands, giving 63% open area. We keep it in stock here in Bristol, 1.5mm thick, in 2440 x 1220mm sheets.
Flattened or raised?
Raised expanded metal is left as it comes off the expanding press, so the strands sit at an angle to the sheet. Flattened expanded metal is rolled after expanding, so the strands lie flat and the sheet has a smooth surface. 4216MF is flattened.
What do LWD and SWD mean?
LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.
Similar meshes
| Code | Diamond | Strand | Thickness | Material | Finish | Stock |
|---|---|---|---|---|---|---|
| 3013MF | 24.4 x 7.6mm | 2.08mm | 1.14mm | Mild steel | Flattened | ✓ In stock |
| 3015M | 30.5 x 11.7mm | 2.36mm | 1.6mm | Mild steel | Raised | ✓ In stock |
| 4216MFThis page | 32.8 x 10.9mm | 3.18mm | 1.5mm | Mild steel | Flattened | ✓ In stock |
| 3812AF | 35 x 11.9mm | 2.34mm | 1.14mm | Aluminium | Flattened | ✓ In stock |
| 5230MF | 39.1 x 18.3mm | 4.72mm | 2.74mm | Mild steel | Flattened | ✓ In stock |
| 5230AF | 40.6 x 17.8mm | 4.04mm | 3mm | Aluminium | Flattened | ✓ In stock |
| 5212MF | 43.4 x 14.2mm | 2.31mm | 1.14mm | Mild steel | Flattened | ✓ In stock |
The nearest expanded metal sizes to 4216MF. See every expanded mild steel sheet →
Dimensions are nominal. Stock changes daily, so please call to confirm.
