40.6 x 17.8mm Flattened Expanded Metal, Aluminium (5230AF)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
40.6 x 17.8mm flattened expanded metal, aluminium5230AF expanded metal diamond: 40.6mm LWD, 17.8mm SWD, 4.04mm strand

5230AF. 40.6 x 17.8mm diamond (LWD x SWD), 4.04mm strand.

Diamond pattern. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for 5230AF
5230AF spec sheetOne A4 page with the specification, sizes and a drawing. Our code 5230AF for easy re-ordering.Download spec sheet PDF

Expanded metal, flattened, aluminium. Kenton code 5230AF

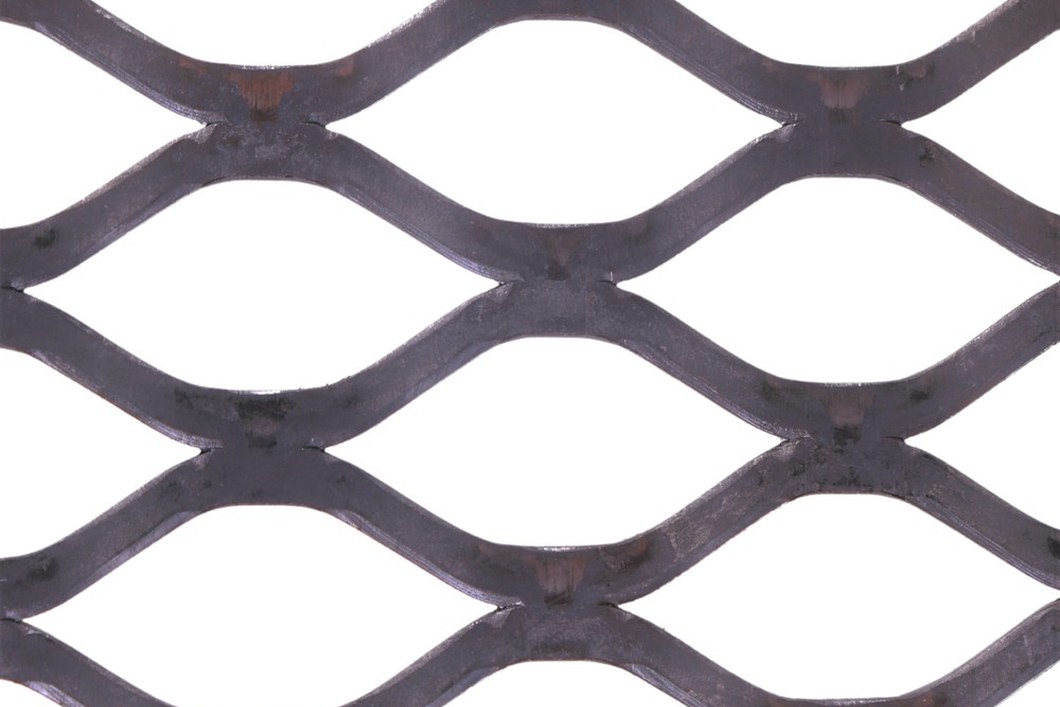

40.6 x 17.8mm flattened expanded metal, aluminium

5230AF is flattened expanded aluminium with a 40.6 x 17.8mm diamond and 4.04mm strands, giving 69% open area. We keep it in stock, 3mm thick, in 2500 x 1250mm sheets.

In stock, next working day delivery
Product specificationThe measurements of 5230AF
Long way of diamond (LWD)40.6mm
Short way of diamond (SWD)17.8mm
Strand width4.04mm
Thickness3mm
Open area69%
FinishFlattened
MaterialAluminium
Sheet size2500 x 1250mm
Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessAluminium, 5230AFSheet size (mm)
2500 x 1250
3mm✓ In stock

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

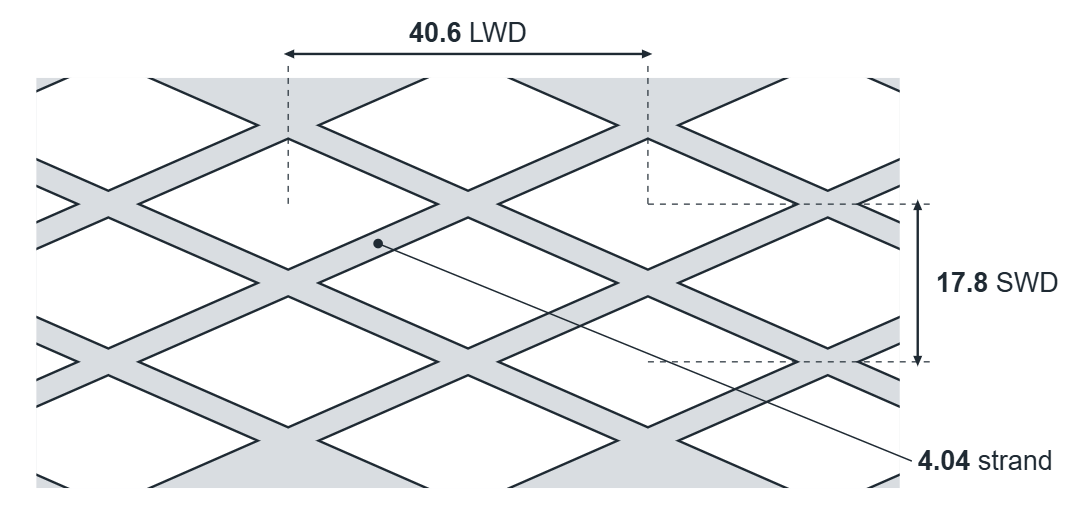

Diamond pattern

5230AF expanded metal diamond: 40.6mm LWD, 17.8mm SWD, 4.04mm strand

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and walkways to your drawing.Ask for a price

About 5230AF

5230AF is flattened expanded aluminium with a 40.6 x 17.8mm diamond and 4.04mm strands, giving 69% open area. We keep it in stock, 3mm thick, in 2500 x 1250mm sheets.

Flattened or raised?

Raised expanded metal is left as it comes off the expanding press, so the strands sit at an angle to the sheet. Flattened expanded metal is rolled after expanding, so the strands lie flat and the sheet has a smooth surface. 5230AF is flattened.

What do LWD and SWD mean?

LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.

Not quite right? Compare similar sizes

Anything different from 5230AF is marked. See every expanded aluminium sheet, or work out a different size

CodeDiamondStrandThicknessMaterialFinishStock
4216MF32.8 x 10.9mm3.18mm1.5mmMild steelFlattened✓ In stock
3812AF35 x 11.9mm2.34mm1.14mmAluminiumFlattened✓ In stock
3815S38.1 x 16.5mm1.91mm1.5mmStainless 304Raised✓ In stock
3812A38.1 x 16.9mm2.31mm1.2mmAluminiumRaised✓ In stock

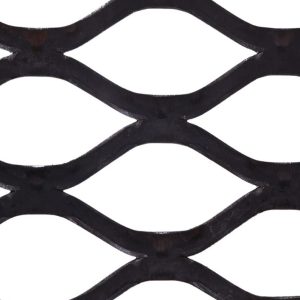

5230MF39.1 x 18.3mm4.72mm2.74mmMild steelFlattened✓ In stock
YOU’RE VIEWING5230AF40.6 x 17.8mm4.04mm3mmAluminiumFlattened✓ In stock
5212MF43.4 x 14.2mm2.31mm1.14mmMild steelFlattened✓ In stock

Highlighted where it differs from 5230AF
