20mm square hole aluminium perforated sheet

C20 U50 hole layout: 20mm square holes, 50mm in-line pitch, 30mm bar

C20 U50. 20mm square hole, 50mm in-line pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

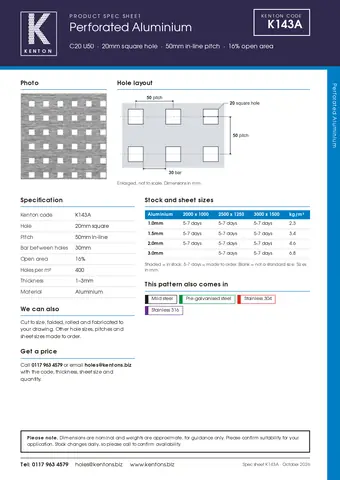

C20 U50 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K143A for easy re-ordering.Download spec sheet PDF

Perforated sheet, aluminium, c20 u50. Kenton code K143A

20mm square hole aluminium perforated sheet

C20 U50 is a 20mm square hole perforated sheet in aluminium, with the holes on a 50mm in-line pitch giving 16% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 1 to 3mm.

Made to order, usually 5 to 7 days

Product specificationThe measurements of C20 U50

Hole20mm square

Pitch50mm in-line

Bar between holes30mm

Open area16%

Holes per m²400

Thickness1–3mm

MaterialAluminium

Also written: C20U50 · 20mm square hole 50mm pitch · 20mm square hole on 50mm centres

Thicknesses and sheet sizesSelect a size to ask for a price

ThicknessAluminium, K143A	Sheet size (mm)			Weightkg/m²
ThicknessAluminium, K143A	2000 x 1000	2500 x 1250	3000 x 1500	Weightkg/m²
1.0mm	5 to 7 days	5 to 7 days	5 to 7 days	2.3
1.5mm	5 to 7 days	5 to 7 days	5 to 7 days	3.4
2.0mm	5 to 7 days	5 to 7 days	5 to 7 days	4.6
3.0mm		5 to 7 days	5 to 7 days	6.8

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Hole layout

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About C20 U50

C20 U50 is a 20mm square hole perforated sheet in aluminium, with the holes on a 50mm in-line pitch giving 16% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 1 to 3mm.

All sizes in the table are made to order, usually in 5 to 7 days.

What does C20 U50 mean?

C20 is a 20mm square hole. U50 means the holes sit on a 50mm in-line pitch, measured centre to centre.

This pattern also comes in

Mild steel Pre-galvanised steel Stainless 304 Stainless 316

Not quite right? Compare similar patterns

Anything different from C20 U50 is marked. See every aluminium pattern, or work out a different pattern

Pattern	Hole	Pitch	Open area	Thickness	Stock
C6 U9	6mm square	9mm in-line	44%	1.5mm	✓ In stock
C7 U10	7mm square	10mm in-line	49%	0.8–2mm	5 to 7 days
C8 U12	8mm square	12mm in-line	44%	1.5–2mm	5 to 7 days
C8 U24	8mm square	24mm in-line	11%	2mm	5 to 7 days
C10 U15	10mm square	15mm in-line	44%	1.5–2mm	✓ In stock
YOU’RE VIEWINGC20 U50	20mm square	50mm in-line	16%	1–3mm	5 to 7 days
C25 U30	25mm square	30mm in-line	69%	2–3mm	✓ In stock

Highlighted where it differs from C20 U50
