200 x 55mm Pre-Galvanised Steel Expanded Metal, 6mm Strand

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
200 x 55mm pre-galvanised steel expanded metal, 6mm strandExpanded metal diamond: 200mm LWD, 55mm SWD, 6mm strand

200 x 55mm. 200 x 55mm diamond (LWD x SWD), 6mm strand.

Diamond pattern. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for 200 x 55mm pre-galvanised steel expanded metal, 6mm strand
200 x 55mm spec sheetOne A4 page with the specification, sizes and a drawing.Download spec sheet PDF

Expanded metal, made to order, pre-galvanised, 200 x 55mm. 200 x 55mm

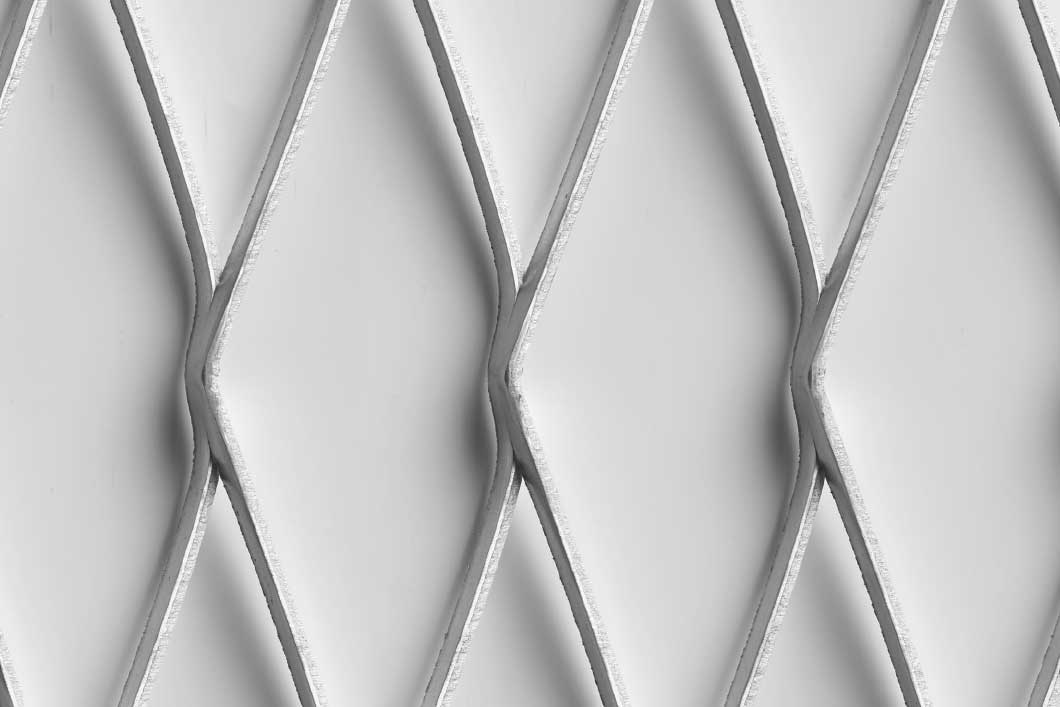

200 x 55mm pre-galvanised steel expanded metal, 6mm strand

Expanded pre-galvanised steel with a 200 x 55mm diamond and 6mm strands, giving 78% open area. It’s made to order in approximately 5 to 7 days, in 3mm thick.

Made to order, approximately 5 to 7 days
Product specificationThe measurements of 200 x 55mm
Long way of diamond (LWD)200mm
Short way of diamond (SWD)55mm
Strand width6mm
Open area78%
Thickness3mm
MaterialPre-galvanised
Sheet sizes2000 x 1000, 2500 x 1250, 3000 x 1500mm
Lead timeMade to order, approximately 5 to 7 days
Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessPre-galvanised, Made to orderSheet size (mm)
Any standard size
3mm5 to 7 days

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

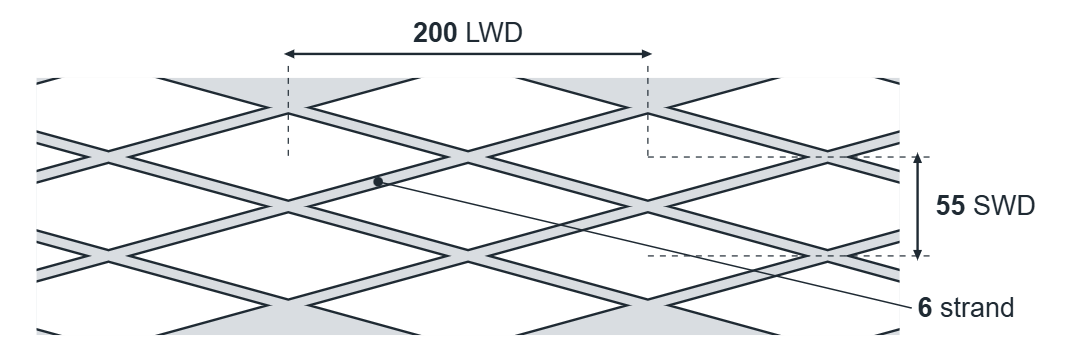

Diamond pattern

Expanded metal diamond: 200mm LWD, 55mm SWD, 6mm strand

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?Once it’s here we cut sheets to size, and fold and fabricate panels, guards and walkways to your drawing.Ask for a price

About 200 x 55mm

Expanded pre-galvanised steel with a 200 x 55mm diamond and 6mm strands, giving 78% open area. It’s made to order in approximately 5 to 7 days, in 3mm thick.

What do LWD and SWD mean?

LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.

Also comes in

Mild steelAluminium

Not quite right? Compare similar sizes

Anything different from 200 x 55mm is marked. See every expanded pre-galvanised steel sheet, or work out a different size

MeshDiamondStrandThicknessStock
115 x 40115 x 40mm3mm1.5–3mm5 to 7 days
115 x 48115 x 48mm18mm1–2mm5 to 7 days
115 x 48115 x 48mm20mm1.5–2mm5 to 7 days
115 x 55115 x 55mm3mm1.5–3mm5 to 7 days
160 x 42160 x 42mm9mm1.5–3mm5 to 7 days
160 x 52160 x 52mm24mm1.5–2mm5 to 7 days
YOU’RE VIEWING200 x 55200 x 55mm6mm3mm5 to 7 days

Highlighted where it differs from 200 x 55mm

Get a price

Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
