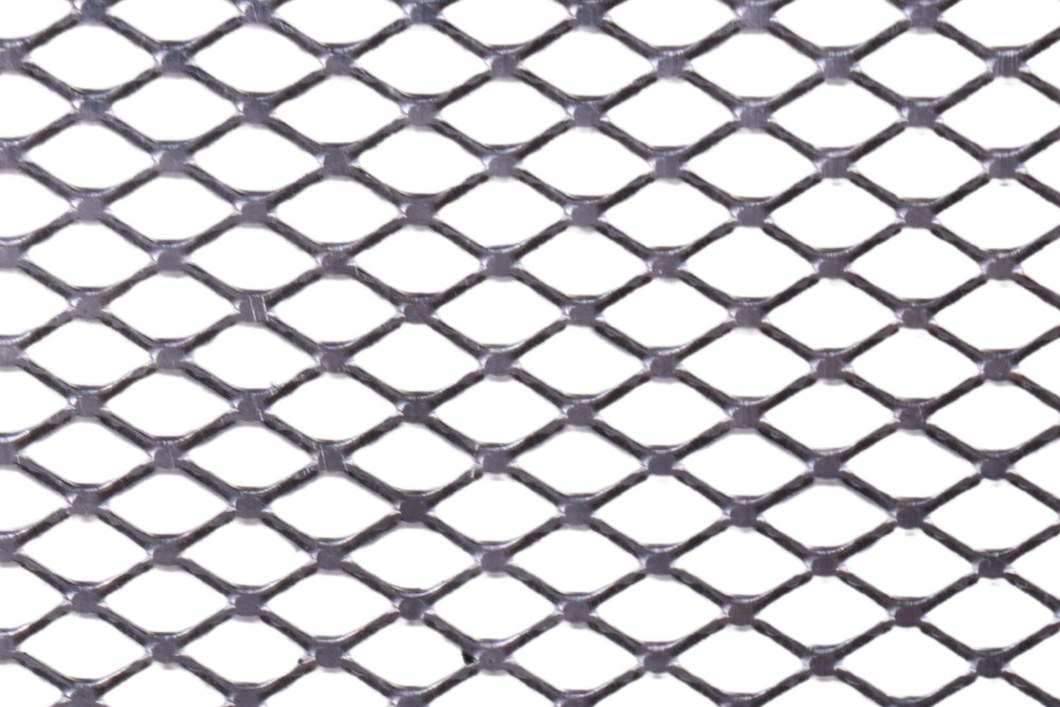

6.9 x 3.6mm Flattened Expanded Metal, Aluminium (1010AF)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
6.9 x 3.6mm flattened expanded metal, aluminium1010AF expanded metal diamond: 6.9mm LWD, 3.6mm SWD, 1.27mm strand

1010AF. 6.9 x 3.6mm diamond (LWD x SWD), 1.27mm strand.

Diamond pattern. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for 1010AF
1010AF spec sheetOne A4 page with the specification, sizes and a drawing. Our code 1010AF for easy re-ordering.Download spec sheet PDF

Expanded metal, flattened, aluminium. Kenton code 1010AF

6.9 x 3.6mm flattened expanded metal, aluminium

1010AF is flattened expanded aluminium with a 6.9 x 3.6mm diamond and 1.27mm strands, giving 58% open area. We keep it in stock, 0.89mm thick, in 2500 x 1250mm sheets.

In stock, next working day delivery
Product specificationThe measurements of 1010AF
Long way of diamond (LWD)6.9mm
Short way of diamond (SWD)3.6mm
Strand width1.27mm
Thickness0.89mm
Open area58%
FinishFlattened
MaterialAluminium
Sheet size2500 x 1250mm
Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessAluminium, 1010AFSheet size (mm)
2500 x 1250
0.89mm✓ In stock

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

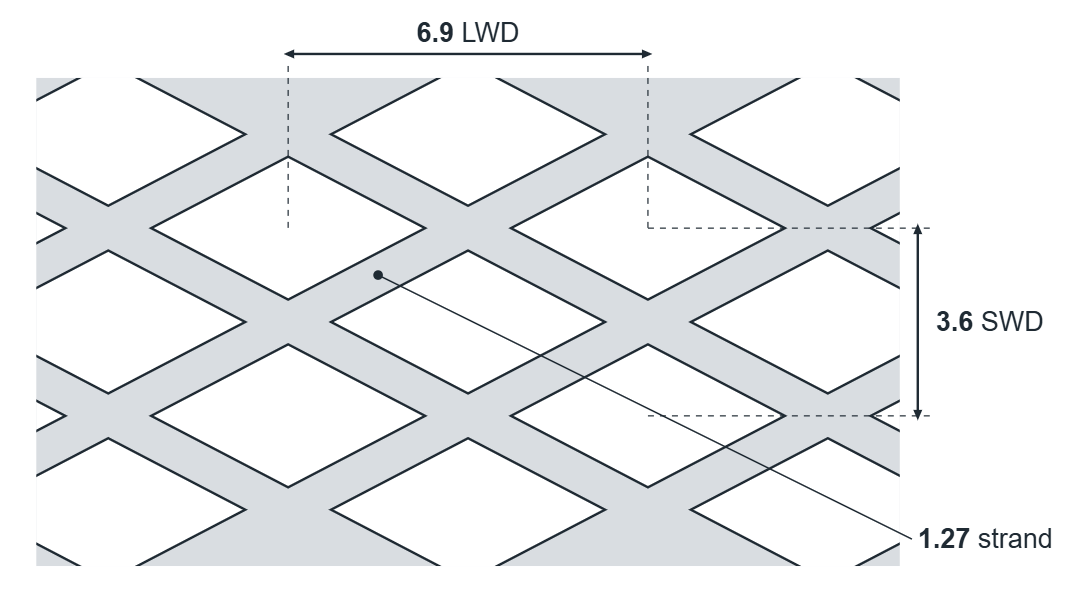

Diamond pattern

1010AF expanded metal diamond: 6.9mm LWD, 3.6mm SWD, 1.27mm strand

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and walkways to your drawing.Ask for a price

About 1010AF

1010AF is flattened expanded aluminium with a 6.9 x 3.6mm diamond and 1.27mm strands, giving 58% open area. We keep it in stock, 0.89mm thick, in 2500 x 1250mm sheets.

Flattened or raised?

Raised expanded metal is left as it comes off the expanding press, so the strands sit at an angle to the sheet. Flattened expanded metal is rolled after expanding, so the strands lie flat and the sheet has a smooth surface. 1010AF is flattened.

What do LWD and SWD mean?

LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.

Not quite right? Compare similar sizes

Anything different from 1010AF is marked. See every expanded aluminium sheet, or work out a different size

CodeDiamondStrandThicknessMaterialFinishStock
0606M5.8 x 3.5mm0.79mm0.6mmMild steelRaised✓ In stock

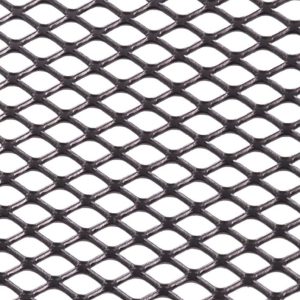

1010MF6.8 x 3.6mm1.3mm0.94mmMild steelFlattened✓ In stock
YOU’RE VIEWING1010AF6.9 x 3.6mm1.27mm0.89mmAluminiumFlattened✓ In stock
8055G8 x 6mm1.25mm0.7mmPre-galvanisedFlattened✓ In stock
1610AF14 x 4.8mm1.8mm0.89mmAluminiumFlattened✓ In stock

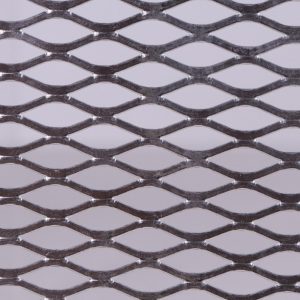

2210MF14.2 x 4.8mm1.85mm0.96mmMild steelFlattened✓ In stock
3013MF24.4 x 7.6mm2.08mm1.14mmMild steelFlattened✓ In stock

Highlighted where it differs from 1010AF
