38.1 x 16.9mm raised expanded metal, aluminium

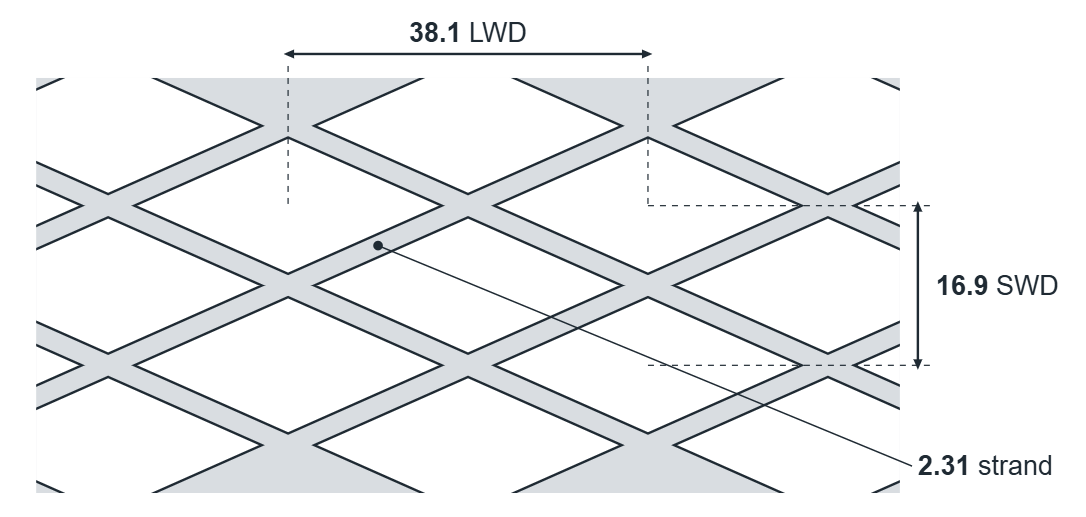

3812A expanded metal diamond: 38.1mm LWD, 16.9mm SWD, 2.31mm strand

3812A. 38.1 x 16.9mm diamond (LWD x SWD), 2.31mm strand.

Diamond pattern. Enlarged, not to scale. Dimensions in mm.

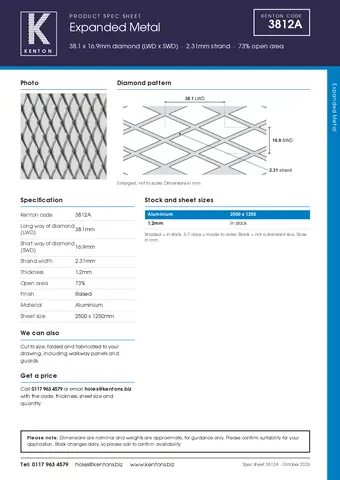

3812A spec sheetOne A4 page with the specification, sizes and a drawing. Our code 3812A for easy re-ordering.Download spec sheet PDF

Expanded metal, raised, aluminium. Kenton code 3812A

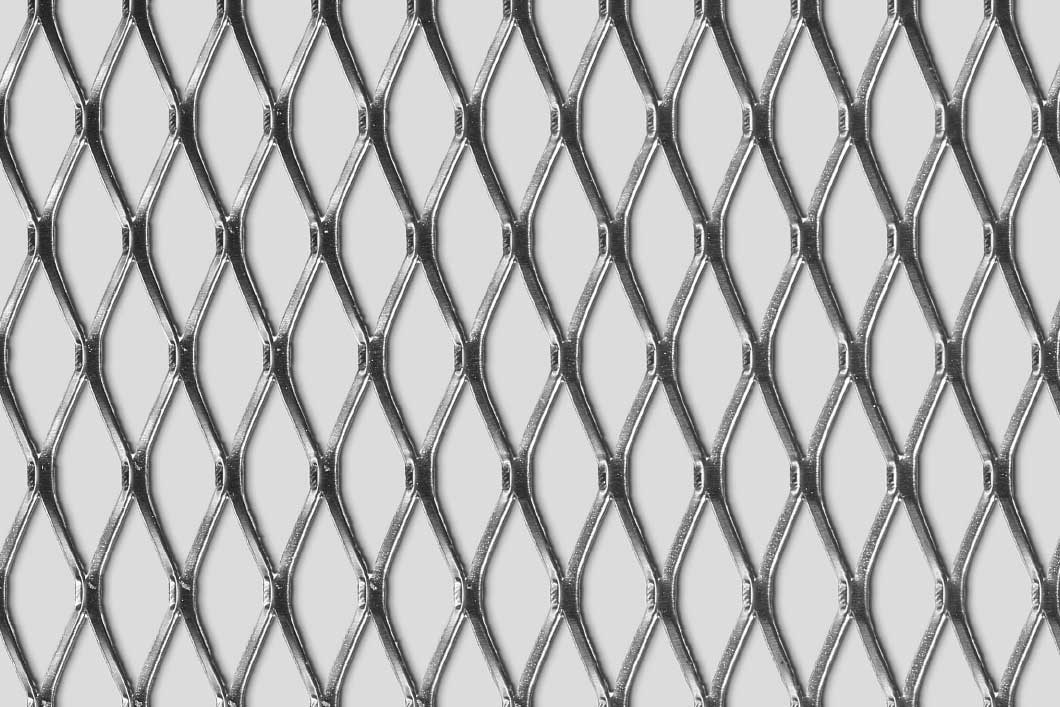

38.1 x 16.9mm raised expanded metal, aluminium

3812A is raised expanded aluminium with a 38.1 x 16.9mm diamond and 2.31mm strands, giving 73% open area. We keep it in stock, 1.2mm thick, in 2500 x 1250mm sheets.

In stock, next working day delivery

Product specificationThe measurements of 3812A

Long way of diamond (LWD)38.1mm

Short way of diamond (SWD)16.9mm

Strand width2.31mm

Thickness1.2mm

Open area73%

FinishRaised

MaterialAluminium

Sheet size2500 x 1250mm

Thicknesses and sheet sizesSelect a size to ask for a price

ThicknessAluminium, 3812A	Sheet size (mm)
ThicknessAluminium, 3812A	2500 x 1250
1.2mm	✓ In stock

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Diamond pattern

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and walkways to your drawing.Ask for a price

About 3812A

3812A is raised expanded aluminium with a 38.1 x 16.9mm diamond and 2.31mm strands, giving 73% open area. We keep it in stock, 1.2mm thick, in 2500 x 1250mm sheets.

Flattened or raised?

Raised expanded metal is left as it comes off the expanding press, so the strands sit at an angle to the sheet. Flattened expanded metal is rolled after expanding, so the strands lie flat and the sheet has a smooth surface. 3812A is raised.

What do LWD and SWD mean?

LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.

Not quite right? Compare similar sizes

Anything different from 3812A is marked. See every expanded aluminium sheet

Code	Diamond	Strand	Thickness	Material	Finish	Stock
3015M	30.5 x 11.7mm	2.36mm	1.6mm	Mild steel	Raised	✓ In stock
3815S	38.1 x 16.5mm	1.91mm	1.5mm	Stainless 304	Raised	✓ In stock
YOU’RE VIEWING3812A	38.1 x 16.9mm	2.31mm	1.2mm	Aluminium	Raised	✓ In stock
5230MF	39.1 x 18.3mm	4.72mm	2.74mm	Mild steel	Flattened	✓ In stock
5230AF	40.6 x 17.8mm	4.04mm	3mm	Aluminium	Flattened	✓ In stock
5212MF	43.4 x 14.2mm	2.31mm	1.14mm	Mild steel	Flattened	✓ In stock
5230M	50.8 x 22.6mm	3.12mm	3mm	Mild steel	Raised	✓ In stock

Highlighted where it differs from 3812A
