45 x 15mm Pre-Galvanised Steel Expanded Metal, 5mm Strand

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz

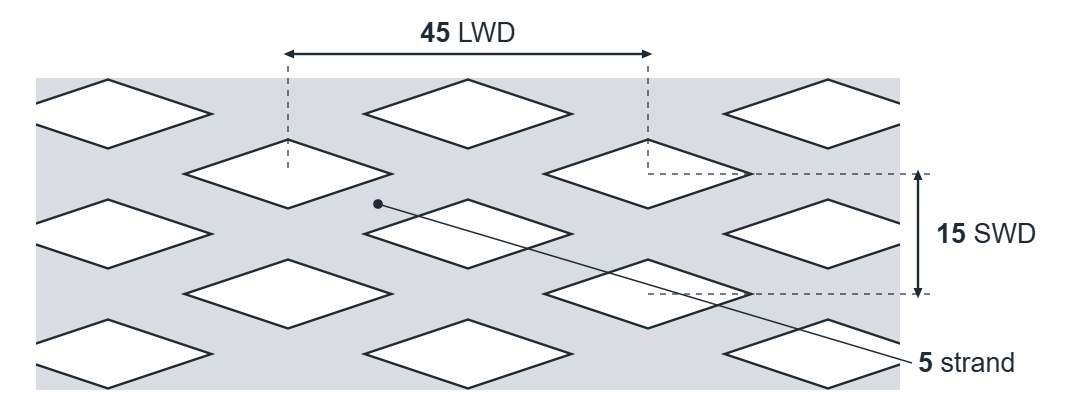

45 x 15mm pre-galvanised steel expanded metal, 5mm strandExpanded metal diamond: 45mm LWD, 15mm SWD, 5mm strand

45 x 15mm. 45 x 15mm diamond (LWD x SWD), 5mm strand.

Diamond pattern. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for 45 x 15mm pre-galvanised steel expanded metal, 5mm strand
45 x 15mm spec sheetOne A4 page with the specification, sizes and a drawing.Download spec sheet PDF

Expanded metal, made to order, pre-galvanised, 45 x 15mm. 45 x 15mm

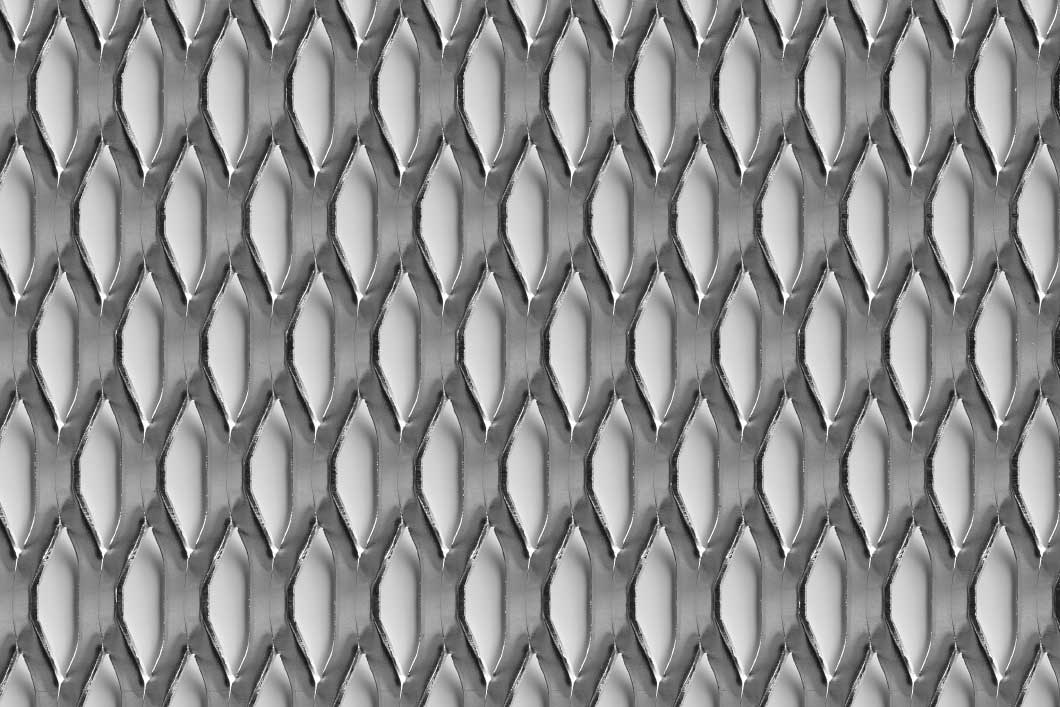

45 x 15mm pre-galvanised steel expanded metal, 5mm strand

Expanded pre-galvanised steel with a 45 x 15mm diamond and 5mm strands, giving 33% open area. It’s made to order in approximately 5 to 7 days, in 1.5, 2 and 3mm thick.

Made to order, approximately 5 to 7 days
Product specificationThe measurements of 45 x 15mm
Long way of diamond (LWD)45mm
Short way of diamond (SWD)15mm
Strand width5mm
Open area33%
Thickness1.5–3mm
MaterialPre-galvanised
Sheet sizes2000 x 1000, 2500 x 1250, 3000 x 1500mm
Lead timeMade to order, approximately 5 to 7 days
Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessPre-galvanised, Made to orderSheet size (mm)
Any standard size
1.5mm5 to 7 days
2mm5 to 7 days
3mm5 to 7 days

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Diamond pattern

Expanded metal diamond: 45mm LWD, 15mm SWD, 5mm strand

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?Once it’s here we cut sheets to size, and fold and fabricate panels, guards and walkways to your drawing.Ask for a price

About 45 x 15mm

Expanded pre-galvanised steel with a 45 x 15mm diamond and 5mm strands, giving 33% open area. It’s made to order in approximately 5 to 7 days, in 1.5, 2 and 3mm thick.

What do LWD and SWD mean?

LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.

Also comes in

Mild steelAluminium

Not quite right? Compare similar sizes

Anything different from 45 x 15mm is marked. See every expanded pre-galvanised steel sheet, or work out a different size

MeshDiamondStrandThicknessStock
40 x 1740 x 17mm2.5mm1–2mm5 to 7 days
43 x 1343 x 13mm2.5mm1–2mm5 to 7 days
43 x 1543 x 15mm4mm1–2mm5 to 7 days
YOU’RE VIEWING45 x 1545 x 15mm5mm1.5–3mm5 to 7 days
45 x 2045 x 20mm4mm1–2mm5 to 7 days
45 x 2045 x 20mm5mm1–3mm5 to 7 days
45 x 2045 x 20mm8mm1.5–3mm5 to 7 days

Highlighted where it differs from 45 x 15mm
