38.1 x 16.5mm raised expanded metal, 304 stainless steel

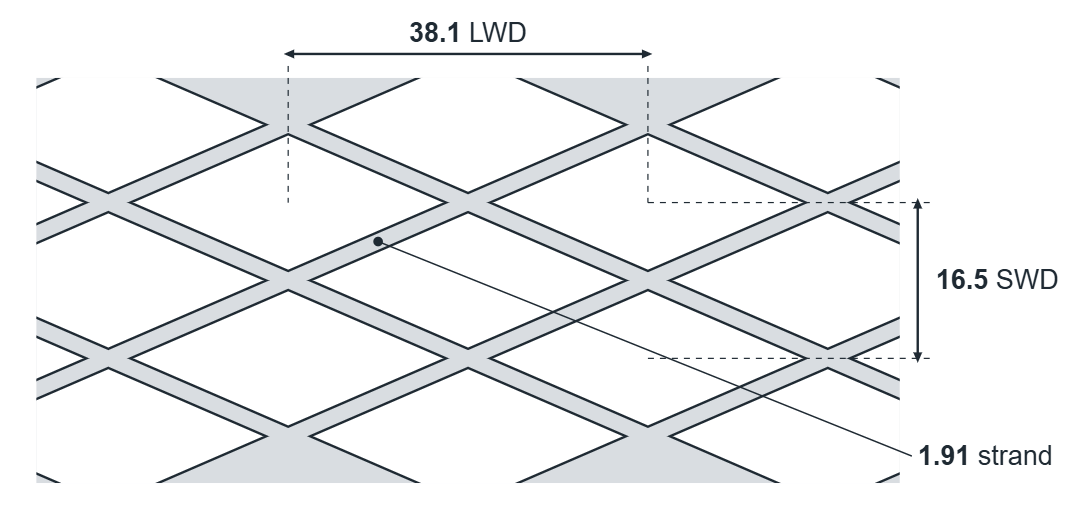

3815S expanded metal diamond: 38.1mm LWD, 16.5mm SWD, 1.91mm strand

3815S. 38.1 x 16.5mm diamond (LWD x SWD), 1.91mm strand.

Diamond pattern. Enlarged, not to scale. Dimensions in mm.

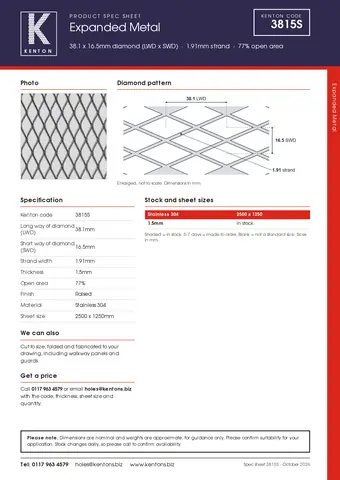

3815S spec sheetOne A4 page with the specification, sizes and a drawing. Our code 3815S for easy re-ordering.Download spec sheet PDF

Expanded metal, raised, stainless 304. Kenton code 3815S

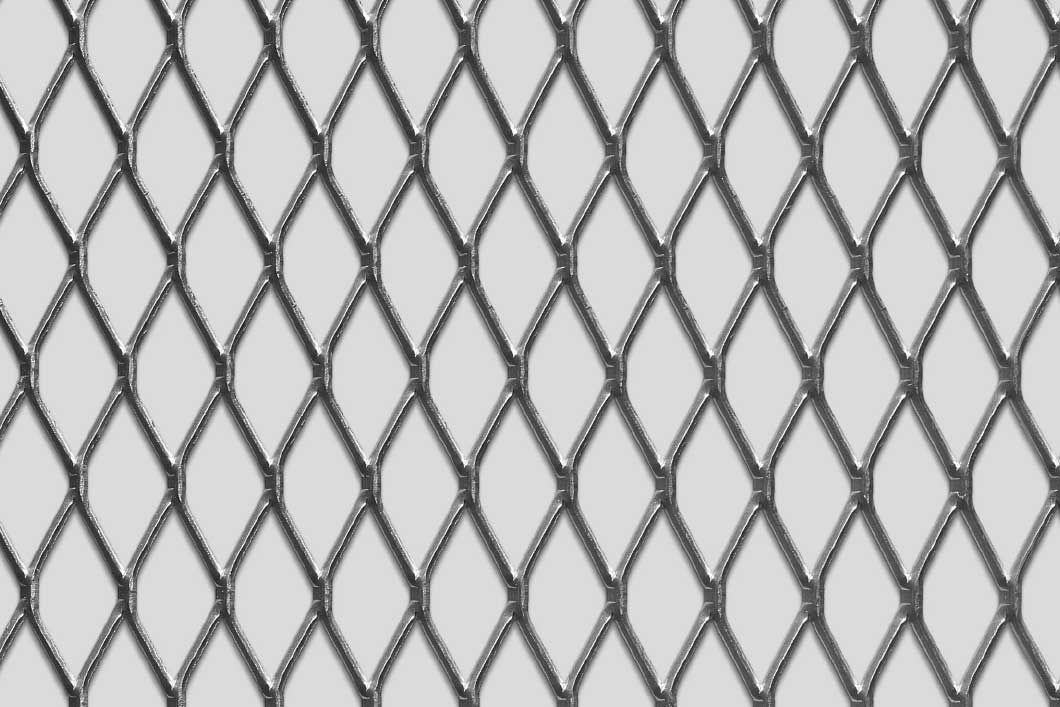

38.1 x 16.5mm raised expanded metal, 304 stainless steel

3815S is raised expanded 304 stainless steel with a 38.1 x 16.5mm diamond and 1.91mm strands, giving 77% open area. We keep it in stock, 1.5mm thick, in 2500 x 1250mm sheets.

In stock, next working day delivery

Product specificationThe measurements of 3815S

Long way of diamond (LWD)38.1mm

Short way of diamond (SWD)16.5mm

Strand width1.91mm

Thickness1.5mm

Open area77%

FinishRaised

MaterialStainless 304

Sheet size2500 x 1250mm

Thicknesses and sheet sizesSelect a size to ask for a price

ThicknessStainless 304, 3815S	Sheet size (mm)
ThicknessStainless 304, 3815S	2500 x 1250
1.5mm	✓ In stock

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Diamond pattern

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and walkways to your drawing.Ask for a price

About 3815S

3815S is raised expanded 304 stainless steel with a 38.1 x 16.5mm diamond and 1.91mm strands, giving 77% open area. We keep it in stock, 1.5mm thick, in 2500 x 1250mm sheets.

Flattened or raised?

Raised expanded metal is left as it comes off the expanding press, so the strands sit at an angle to the sheet. Flattened expanded metal is rolled after expanding, so the strands lie flat and the sheet has a smooth surface. 3815S is raised.

What do LWD and SWD mean?

LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.

Not quite right? Compare similar sizes

Anything different from 3815S is marked. See every expanded 304 stainless steel sheet

Code	Diamond	Strand	Thickness	Material	Finish	Stock
3015M	30.5 x 11.7mm	2.36mm	1.6mm	Mild steel	Raised	✓ In stock
YOU’RE VIEWING3815S	38.1 x 16.5mm	1.91mm	1.5mm	Stainless 304	Raised	✓ In stock
3812A	38.1 x 16.9mm	2.31mm	1.2mm	Aluminium	Raised	✓ In stock
5230MF	39.1 x 18.3mm	4.72mm	2.74mm	Mild steel	Flattened	✓ In stock
5230AF	40.6 x 17.8mm	4.04mm	3mm	Aluminium	Flattened	✓ In stock
5212MF	43.4 x 14.2mm	2.31mm	1.14mm	Mild steel	Flattened	✓ In stock
5230M	50.8 x 22.6mm	3.12mm	3mm	Mild steel	Raised	✓ In stock

Highlighted where it differs from 3815S
