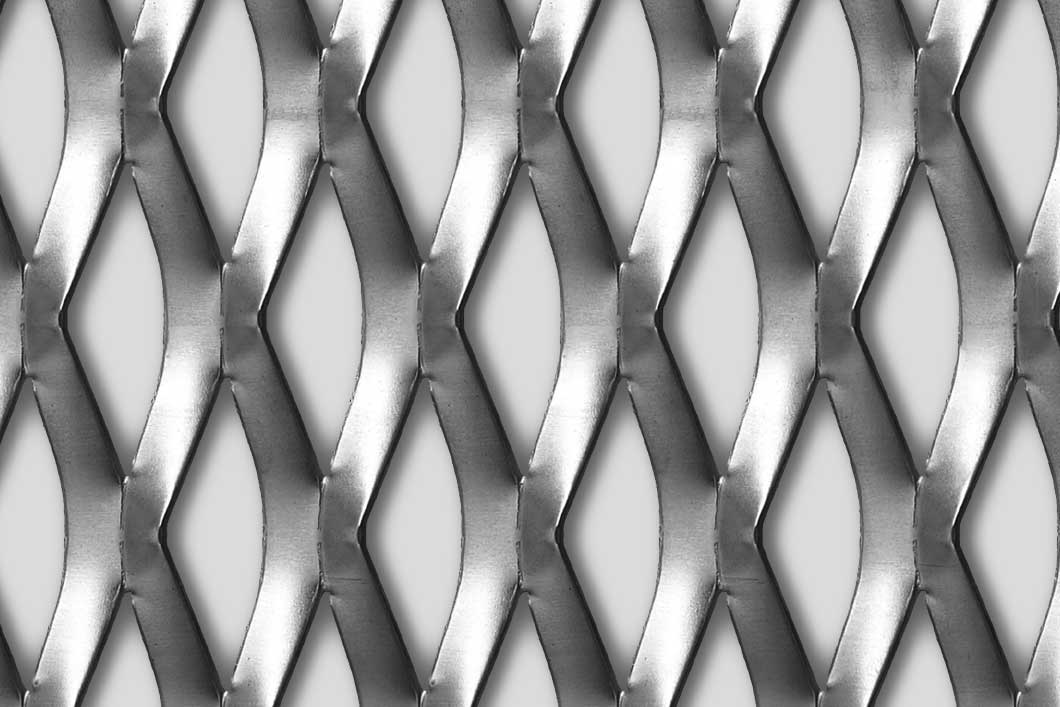

76 x 35mm Pre-Galvanised Steel Expanded Metal, 11mm Strand
Expanded metal · made to orderPre-galvanised76 x 35mm
Thicknesses
| Pre-galvanisedMade to order | Thicknesses (mm) |
|---|---|
| 5-7 days | 1.5, 2, 3 |
5-7 daysmade to orderSheets 2000 x 1000, 2500 x 1250 and 3000 x 1500mm. Not every thickness is made in every size, so please call.
- Cut to sizewhile you wait
- 5-7 daysmade to order
- Folded & fabricatedto your drawing
Description
Technical details

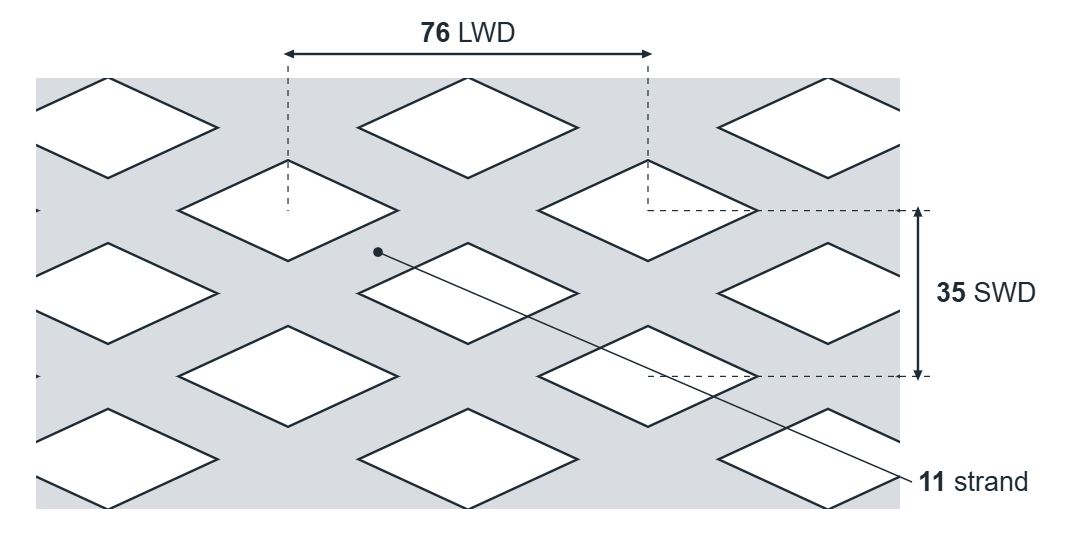

Diamond pattern
Enlarged, not to scale. Dimensions in mm. LWD and SWD are measured centre to centre of the strands.
Specification
- Long way of diamond (LWD)
- 76mm
- Short way of diamond (SWD)
- 35mm
- Strand width
- 11mm
- Open area
- 37%
- Thickness
- 1.5–3mm
- Material
- Pre-galvanised
- Sheet sizes
- 2000 x 1000, 2500 x 1250, 3000 x 1500mm
- Lead time
- Made to order, usually 5-7 days
About this expanded pre-galvanised steel
Expanded pre-galvanised steel with a 76 x 35mm diamond and 11mm strands, giving 37% open area. It’s made to order, usually in 5-7 days, in 1.5, 2 and 3mm thick. Once it arrives we can cut it to size here in Bristol while you wait.
What do LWD and SWD mean?
LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.
This mesh also comes in
Similar meshes
| Mesh | Diamond | Strand | Thickness | Stock |
|---|---|---|---|---|
| 62 x 28 | 62 x 28mm | 14mm | 1.5–3mm | 5-7 days |
| 76 x 24 | 76 x 24mm | 11mm | 1.5–3mm | 5-7 days |
| 76 x 35 | 76 x 35mm | 4mm | 1.5–3mm | 5-7 days |
| 76 x 35This page | 76 x 35mm | 11mm | 1.5–3mm | 5-7 days |
| 90 x 30 | 90 x 30mm | 15mm | 1.5–3mm | 5-7 days |
| 90 x 38 | 90 x 38mm | 18mm | 1.5–3mm | 5-7 days |
| 90 x 40 | 90 x 40mm | 20mm | 1.5–3mm | 5-7 days |
The nearest expanded pre-galvanised steel sizes, including sheets we keep in stock. See every expanded pre-galvanised steel sheet →
Dimensions are nominal. Lead times can vary, so please call to confirm.
