90 x 30mm Pre-Galvanised Steel Expanded Metal, 15mm Strand

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
90 x 30mm pre-galvanised steel expanded metal, 15mm strandExpanded metal diamond: 90mm LWD, 30mm SWD, 15mm strand

90 x 30mm. 90 x 30mm diamond (LWD x SWD), 15mm strand.

Diamond pattern. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for 90 x 30mm pre-galvanised steel expanded metal, 15mm strand
90 x 30mm spec sheetOne A4 page with the specification, sizes and a drawing.Download spec sheet PDF

Expanded metal, made to order, pre-galvanised, 90 x 30mm. 90 x 30mm

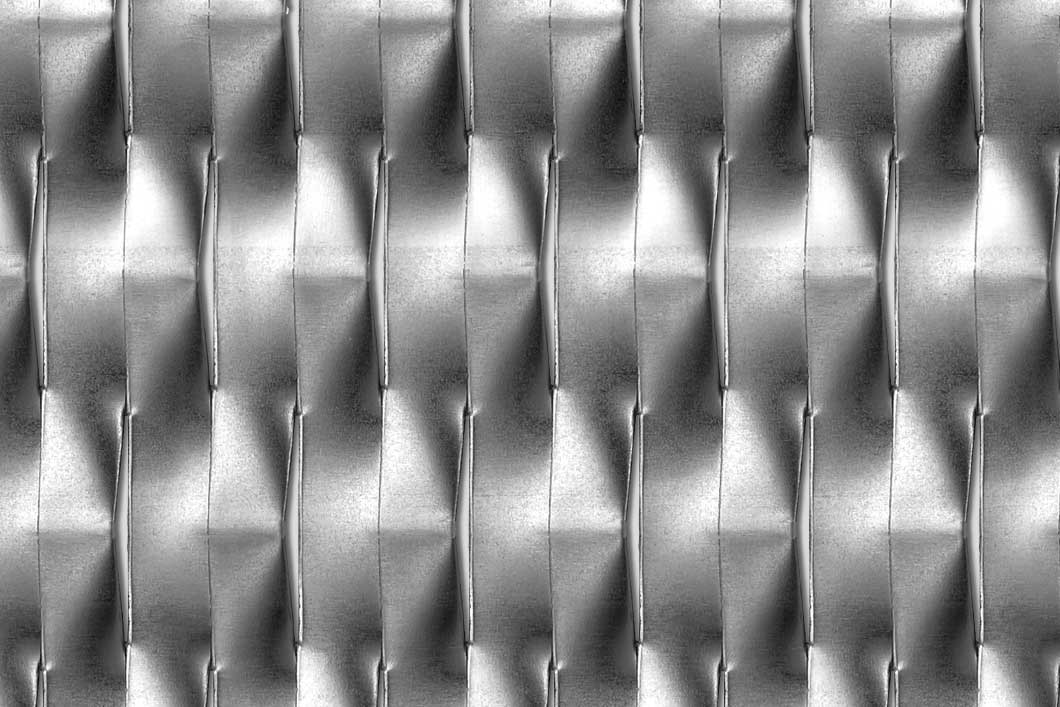

90 x 30mm pre-galvanised steel expanded metal, 15mm strand

Expanded pre-galvanised steel with a 90 x 30mm diamond and 15mm strands, giving 5% open area. It’s made to order in approximately 5 to 7 days, in 1.5, 2 and 3mm thick.

Made to order, approximately 5 to 7 days
Product specificationThe measurements of 90 x 30mm
Long way of diamond (LWD)90mm
Short way of diamond (SWD)30mm
Strand width15mm
Open area5%
Thickness1.5–3mm
MaterialPre-galvanised
Sheet sizes2000 x 1000, 2500 x 1250, 3000 x 1500mm
Lead timeMade to order, approximately 5 to 7 days
Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessPre-galvanised, Made to orderSheet size (mm)
Any standard size
1.5mm5 to 7 days
2mm5 to 7 days
3mm5 to 7 days

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

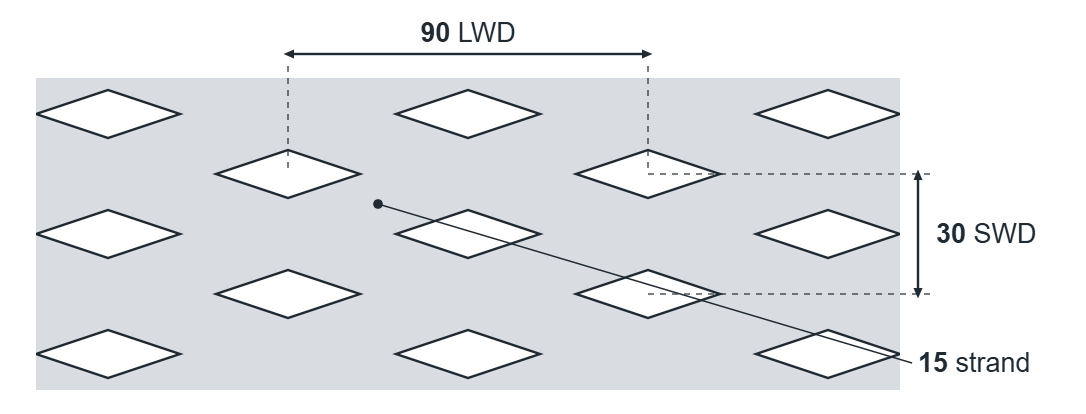

Diamond pattern

Expanded metal diamond: 90mm LWD, 30mm SWD, 15mm strand

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?Once it’s here we cut sheets to size, and fold and fabricate panels, guards and walkways to your drawing.Ask for a price

About 90 x 30mm

Expanded pre-galvanised steel with a 90 x 30mm diamond and 15mm strands, giving 5% open area. It’s made to order in approximately 5 to 7 days, in 1.5, 2 and 3mm thick.

What do LWD and SWD mean?

LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.

Also comes in

Mild steelAluminium

Not quite right? Compare similar sizes

Anything different from 90 x 30mm is marked. See every expanded pre-galvanised steel sheet, or work out a different size

MeshDiamondStrandThicknessStock
62 x 2862 x 28mm14mm1.5–3mm5 to 7 days
76 x 2476 x 24mm11mm1.5–3mm5 to 7 days
76 x 3576 x 35mm11mm1.5–3mm5 to 7 days
YOU’RE VIEWING90 x 3090 x 30mm15mm1.5–3mm5 to 7 days
90 x 3890 x 38mm18mm1.5–3mm5 to 7 days
90 x 4090 x 40mm20mm1.5–3mm5 to 7 days
110 x 30110 x 30mm11mm1.5–3mm5 to 7 days

Highlighted where it differs from 90 x 30mm
